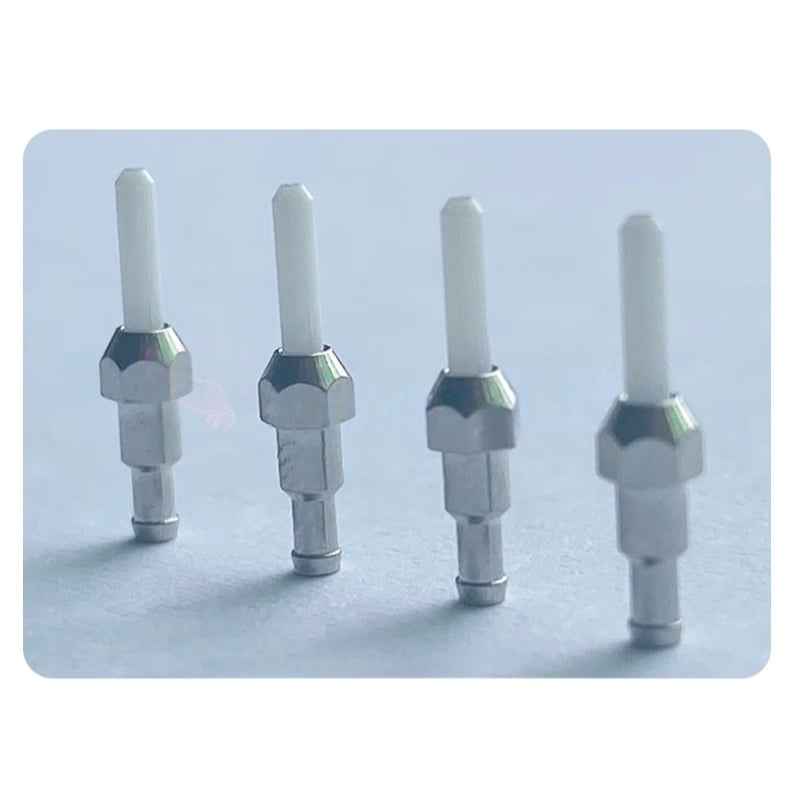

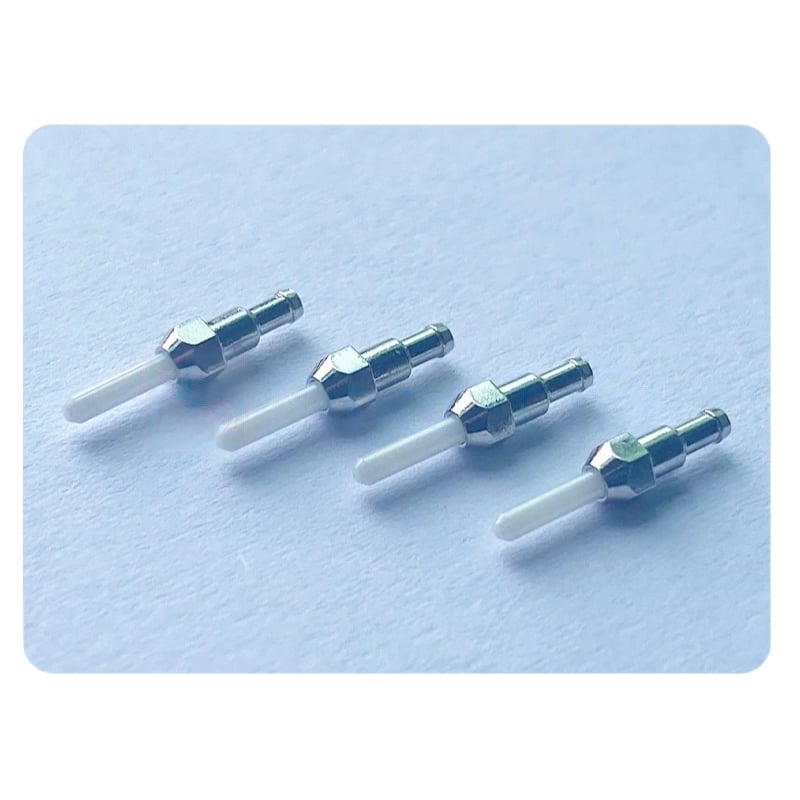

1.25mm OD Ceramic Ferrule With Flange For LC Fiber Connector
The 1.25mm OD Ceramic Ferrule with Flange for LC Fiber Connector is a high-precision alignment component designed for LC-type fiber optic connectors. Made from high-purity zirconia ceramic, it provides excellent concentricity, low insertion loss, and outstanding durability. The flanged design ensures easy handling and precise positioning during connector assembly, making it ideal for both singlemode and multimode applications.
$1.15
1.25mm OD Ceramic Ferrule For LC Fiber Connector
The 1.25mm OD Ceramic Ferrule with Flange for LC Fiber Connector is a high-precision alignment component designed for LC-type fiber optic connectors. Made from high-purity zirconia ceramic, it provides excellent concentricity, low insertion loss, and outstanding durability. The flanged design ensures easy handling and precise positioning during connector assembly, making it ideal for both singlemode and multimode applications.
Specifications
| Compatibility | LC Connector | Fiber Mode | Singlemode & Multimode |
| Polish Type | APC, UPC | Material | Ceramic |
| Length | 6.50±0.05mm | Concentricity | 1.0μm |
| Outer Diameter | 1.249±0.0005mm | Inner Diameter | 0.125+0.001mm |
| Insertion Loss | ≤0.2dB | Return loss | ≥60dB (APC), ≥50dB (UPC) |
Related Products
The 1.25mm OD Ceramic Sleeve For LC Fiber Connector is a high-precision alignment component used in LC adapter assemblies. Crafted from premium zirconia ceramic, it provides excellent concentricity and wear resistance, ensuring low insertion loss and high repeatability in fiber optic connections. This sleeve is suitable for both singlemode and multimode LC connectors, making it ideal for use in patch panels, distribution frames, and optical test equipment. SunmaFiber guarantees quality and compatibility across all LC connector interfaces.
The 2.5mm OD Ceramic Sleeve For SC/FC/ST Fiber Connector is a precision-engineered alignment component designed for use in SC, FC, and ST fiber optic adapters. Manufactured from high-grade zirconia ceramic, this sleeve offers exceptional durability, high concentricity, and excellent optical performance. It ensures precise fiber alignment, resulting in low insertion loss and high return loss, even after repeated mating cycles. Compatible with both singlemode and multimode connectors, it is widely used in fiber patch panels, distribution units, and optical testing devices. An essential element for reliable and stable fiber connections in telecom and data center applications.
The 2.5mm OD Ceramic Ferrule with Flange for SC/FC/ST Fiber Connector is a high-precision zirconia ferrule designed to ensure accurate fiber alignment and superior optical performance. Manufactured from high-purity zirconia ceramic, it offers excellent hardness, thermal stability, and wear resistance, resulting in consistent low insertion loss and high return loss. The flanged design provides easy handling and precise positioning during connector assembly, making it ideal for SC, FC, and ST type connectors in both singlemode and multimode applications. It is widely used in optical communication systems, fiber optic patch cords, adapters, and transceivers where precision and reliability are essential.
