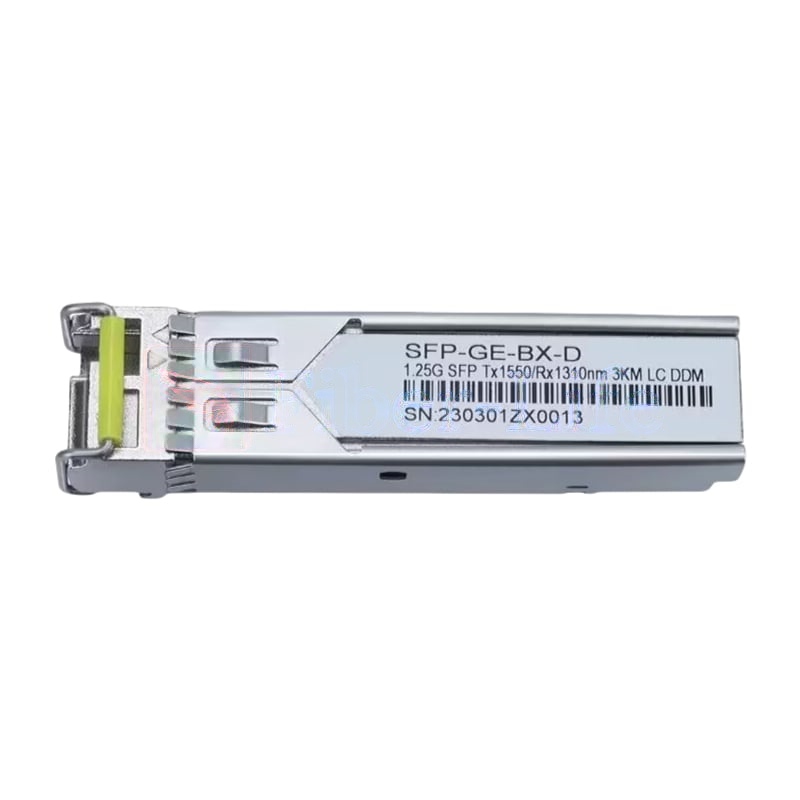

1000BASE-BX-D 3km TX1550nm/RX1310nm Simplex LC/UPC BiDi SFP Optical Transceiver Module
The 1000BASE-BX-D 3km TX1550nm/RX1310nm Simplex LC/UPC BiDi SFP Optical Transceiver Module is a high-performance, cost-effective SFP transceiver designed for Gigabit Ethernet single-fiber bidirectional communication. It transmits data at 1550 nm and receives at 1310 nm, allowing full-duplex operation over a single strand of singlemode fiber (SMF) up to 3 km.
$12.10
1000BASE-BX-D 3km TX1550nm/RX1310nm Simplex LC/UPC BiDi SFP Optical Transceiver Module
The 1000BASE-BX-D 3km TX1550nm/RX1310nm Simplex LC/UPC BiDi SFP Optical Transceiver Module is a high-performance, cost-effective SFP transceiver designed for Gigabit Ethernet single-fiber bidirectional communication. It transmits data at 1550 nm and receives at 1310 nm, allowing full-duplex operation over a single strand of singlemode fiber (SMF) up to 3 km.
Compliant with the IEEE 802.3ah 1000BASE-BX-D standard, this BiDi SFP module features a Simplex LC/UPC connector and supports data rates up to 1.25 Gbps. It provides reliable performance, low power consumption, and easy hot-pluggable installation, making it ideal for FTTx, enterprise networks, and metro access applications. For proper operation, it must be used with the complementary 1000BASE-BX-U module (TX1310nm/RX1550nm) on the opposite end.
Specifications
| Model | Rate | Wavelength | Transmission Distance | TX Power | RX Sensitivity | Laser | Interface | Operating Temperature |
|---|---|---|---|---|---|---|---|---|
| P/N: 76326 | 1.25Gb/s | TX1310nm/RX1550nm | 3KM | -9 ~ -3dBm | ≤-20dBm | FP | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76306 | 1.25Gb/s | TX1550nm/RX1310nm | 3KM | -9 ~ -3dBm | ≤-20dBm | FP | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76340 | 1.25Gb/s | TX1310nm/RX1550nm | 10KM | -9 ~ -3dBm | ≤-20dBm | FP | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76354 | 1.25Gb/s | TX1550nm/RX1310nm | 10KM | -9 ~ -3dBm | ≤-20dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 119607 | 1.25Gb/s | TX1310nm/RX1490nm | 10KM | -9 ~ -3dBm | ≤-20dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 119594 | 1.25Gb/s | TX1490nm/RX1310nm | 10KM | -9 ~ -3dBm | ≤-20dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76367 | 1.25Gb/s | TX1310nm/RX1550nm | 20KM | -9 ~ -3dBm | ≤-20dBm | FP | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76386 | 1.25Gb/s | TX1550nm/RX1310nm | 20KM | -9 ~ -3dBm | ≤-20dBm | FP | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76483 | 1.25Gb/s | TX1310nm/RX1490nm | 20KM | -9 ~ -3dBm | ≤-20dBm | FP | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76499 | 1.25Gb/s | TX1490nm/RX1310nm | 20KM | -9 ~ -3dBm | ≤-20dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76400 | 1.25Gb/s | TX1310nm/RX1550nm | 40KM | -5 ~ 0dBm | ≤-24dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76414 | 1.25Gb/s | TX1550nm/RX1310nm | 40KM | -5 ~ 0dBm | ≤-24dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 119622 | 1.25Gb/s | TX1310nm/RX1490nm | 40KM | -5 ~ 0dBm | ≤-24dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 119636 | 1.25Gb/s | TX1490nm/RX1310nm | 40KM | -5 ~ 0dBm | ≤-24dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76428 | 1.25Gb/s | TX1490nm/RX1550nm | 80KM | 0 ~ 5dBm | ≤-26dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76442 | 1.25Gb/s | TX1550nm/RX1490nm | 80KM | 0 ~ 5dBm | ≤-26dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 119652 | 1.25Gb/s | TX1490nm/RX1550nm | 120KM | 0 ~ 5dBm | ≤-31dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 119665 | 1.25Gb/s | TX1550nm/RX1490nm | 120KM | 0 ~ 5dBm | ≤-31dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
