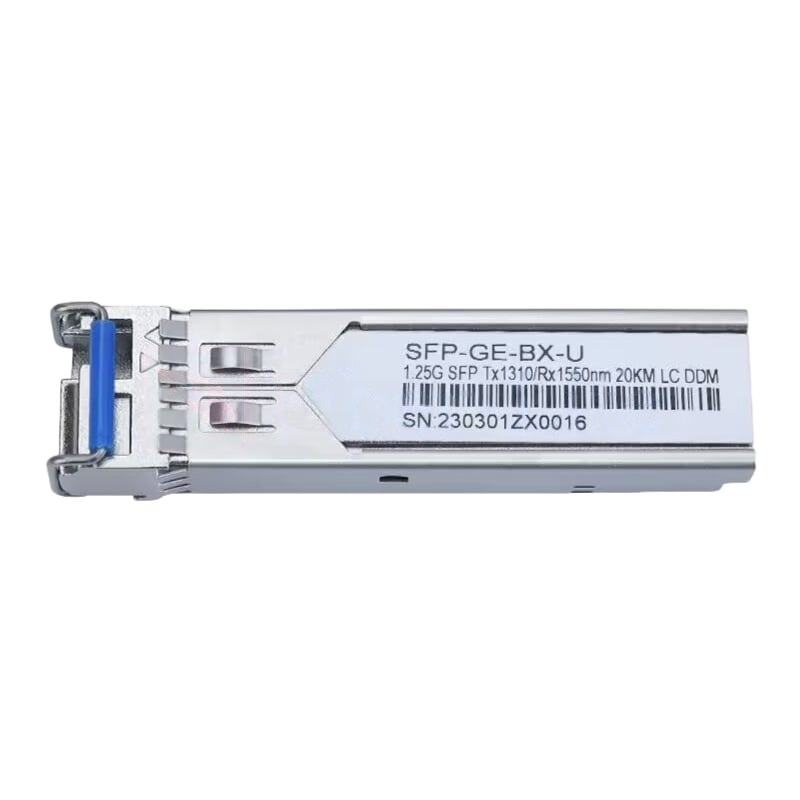

1000BASE-BX-U 20km TX1310nm/RX1550nm Simplex LC/UPC BiDi SFP Optical Transceiver Module
The 1000BASE-BX-U 20km TX1310nm/RX1550nm Simplex LC/UPC BiDi SFP Optical Transceiver Module is a high-performance, hot-pluggable SFP transceiver designed for Gigabit Ethernet single-fiber bidirectional communication. Operating at 1310 nm for transmission (TX) and 1550 nm for reception (RX), this module enables full-duplex data transmission over a single strand of singlemode fiber (SMF) up to 20 kilometers.
$14.00
1000BASE-BX-U 20km TX1310nm/RX1550nm Simplex LC/UPC BiDi SFP Optical Transceiver Module
The 1000BASE-BX-U 20km TX1310nm/RX1550nm Simplex LC/UPC BiDi SFP Optical Transceiver Module is a high-performance, hot-pluggable SFP transceiver designed for Gigabit Ethernet single-fiber bidirectional communication. Operating at 1310 nm for transmission (TX) and 1550 nm for reception (RX), this module enables full-duplex data transmission over a single strand of singlemode fiber (SMF) up to 20 kilometers.
Compliant with the IEEE 802.3ah 1000BASE-BX-U standard, it features a Simplex LC/UPC connector, supports data rates up to 1.25 Gbps, and provides low power consumption, stable optical performance, and high reliability. This BiDi SFP module is ideal for FTTx deployments, enterprise access networks, and metro Ethernet applications. For proper operation, it should be paired with the complementary 1000BASE-BX-D module (TX1550nm/RX1310nm) at the opposite end.
Specifications
| Model | Rate | Wavelength | Transmission Distance | TX Power | RX Sensitivity | Laser | Interface | Operating Temperature |
|---|---|---|---|---|---|---|---|---|
| P/N: 76326 | 1.25Gb/s | TX1310nm/RX1550nm | 3KM | -9 ~ -3dBm | ≤-20dBm | FP | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76306 | 1.25Gb/s | TX1550nm/RX1310nm | 3KM | -9 ~ -3dBm | ≤-20dBm | FP | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76340 | 1.25Gb/s | TX1310nm/RX1550nm | 10KM | -9 ~ -3dBm | ≤-20dBm | FP | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76354 | 1.25Gb/s | TX1550nm/RX1310nm | 10KM | -9 ~ -3dBm | ≤-20dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 119607 | 1.25Gb/s | TX1310nm/RX1490nm | 10KM | -9 ~ -3dBm | ≤-20dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 119594 | 1.25Gb/s | TX1490nm/RX1310nm | 10KM | -9 ~ -3dBm | ≤-20dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76367 | 1.25Gb/s | TX1310nm/RX1550nm | 20KM | -9 ~ -3dBm | ≤-20dBm | FP | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76386 | 1.25Gb/s | TX1550nm/RX1310nm | 20KM | -9 ~ -3dBm | ≤-20dBm | FP | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76483 | 1.25Gb/s | TX1310nm/RX1490nm | 20KM | -9 ~ -3dBm | ≤-20dBm | FP | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76499 | 1.25Gb/s | TX1490nm/RX1310nm | 20KM | -9 ~ -3dBm | ≤-20dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76400 | 1.25Gb/s | TX1310nm/RX1550nm | 40KM | -5 ~ 0dBm | ≤-24dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76414 | 1.25Gb/s | TX1550nm/RX1310nm | 40KM | -5 ~ 0dBm | ≤-24dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 119622 | 1.25Gb/s | TX1310nm/RX1490nm | 40KM | -5 ~ 0dBm | ≤-24dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 119636 | 1.25Gb/s | TX1490nm/RX1310nm | 40KM | -5 ~ 0dBm | ≤-24dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76428 | 1.25Gb/s | TX1490nm/RX1550nm | 80KM | 0 ~ 5dBm | ≤-26dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 76442 | 1.25Gb/s | TX1550nm/RX1490nm | 80KM | 0 ~ 5dBm | ≤-26dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 119652 | 1.25Gb/s | TX1490nm/RX1550nm | 120KM | 0 ~ 5dBm | ≤-31dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
| P/N: 119665 | 1.25Gb/s | TX1550nm/RX1490nm | 120KM | 0 ~ 5dBm | ≤-31dBm | DFB | Simplex LC/UPC | 0 ~ 70°C |
