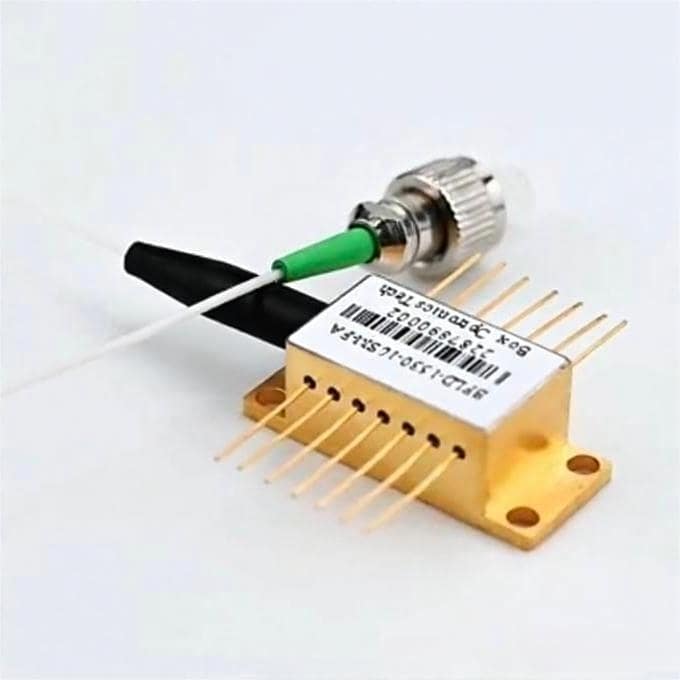

10mW 14-Pin Butterfly DFB Laser Diode, ITU Grid Wavelength
The 10mW 14-Pin Butterfly DFB Laser Diode, ITU Grid Wavelength offers a reliable and high-performance solution for dense wavelength division multiplexing (DWDM) and other optical transmission applications. Covering a wide wavelength range from 1527nm to 1610nm on the ITU-T grid, these laser diodes are housed in a hermetically sealed 14-pin butterfly package and integrate a thermoelectric cooler (TEC), thermistor, monitor photodiode, and optical isolator to ensure excellent thermal stability, wavelength accuracy, and output reliability.
$488.00

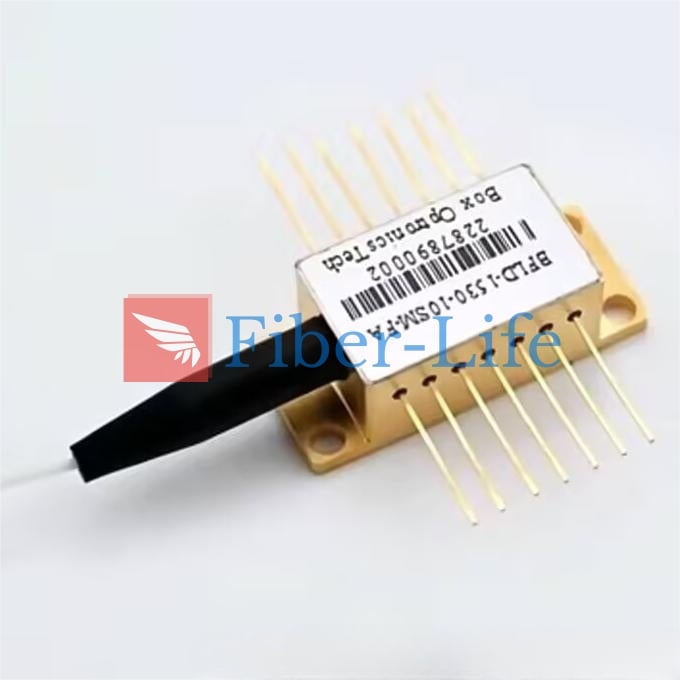

10mW 14-Pin Butterfly DFB Laser Diode, ITU Grid Wavelength
The 10mW 14-Pin Butterfly DFB Laser Diode, ITU Grid Wavelength offers a reliable and high-performance solution for dense wavelength division multiplexing (DWDM) and other optical transmission applications. Covering a wide wavelength range from 1527.22nm to 1610.92nm on the ITU-T grid, these laser diodes are housed in a hermetically sealed 14-pin butterfly package and integrate a thermoelectric cooler (TEC), thermistor, monitor photodiode, and optical isolator to ensure excellent thermal stability, wavelength accuracy, and output reliability.
All SunmaFiber laser diodes are Telcordia GR-468 qualified and RoHS compliant, making them ideal for telecom, CATV, and optical sensing systems where stability, precision, and long-term reliability are essential.
Specifications
| Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit |
|---|---|---|---|---|---|---|
| Center Wavelength | λc | TL=15～35℃, CW | 1527.22±0.2 | – | 1610.92±0.2 | nm |
| Peak Optical Output Power | PO | – | 10 | – | – | mW |
| Spectral Linewidth | LW | FWHM | – | 3 | 5 | MHz |
| Side-mode Suppression Ratio | SMSR | CW | 40 | 50 | – | dB |
| Optical Isolation | – | – | 30 | – | – | dB |
| Relative Intensity Noise | RIN | 20-1000MHz | – | – | -145 | dB/Hz |
| Wavelength Drift (EOL) | △λ | Tested over 25-year lifetime |
– | – | ±0.1 | nm |
| Wavelength Temperature Coefficient | Δλ/ΔT | TEC temperature at 15℃ to 35℃ |
– | 0.09 | – | nm/℃ |
| Wavelength Current Coefficient | Δλ/ΔΙ | – | – | 0.01 | – | nm/mA |
| Threshold Current | Ith | – | – | 10 | 35 | mA |
| Slope Efficiency | ƞ | PO=10mW(CW) | 0.05 | 0.13 | 0.2 | mW/mA |
| Operating Current | Iop | PO=10mW(CW) | – | 100 | 150 | mA |
| TEC Set Temperature | Ts | – | 15 | – | 35 | ℃ |
| Laser Forward Voltage | VF | PO=10mW(CW) | – | 1.2 | 3.0 | V |
| Monitor PD Current | IMPD | PO=10mW(CW) | 10 | – | 2500 | μA |
| Monitor Dark Current | ID | IF=0mA, VRPD=5V | – | – | 0.1 | μA |
| Thermistor Current | ITC | – | 10 | – | 100 | μA |
| Thermistor Resistance | RTH | TL=25℃ | 9.5 | 10 | 10.5 | KΩ |
| Thermistor Constant | B | – | 3800 | – | 4100 | K |
| TEC Current | ITEC | TL=25℃, TC=70℃ | -1.5 | – | +1.5 | A |
| TEC Voltage | VTEC | TL=25℃, TC=70℃ | -3.5 | – | +3.5 | V |
| TEC Capacity | ΔT | Tc=70℃ | – | – | 50 | ℃ |
| Storage Temperature | Ts | – | -40 | – | +85 | ℃ |
| Operating Case Temperature | Top | – | -20 | – | +70 | ℃ |
| Laser Forward Current | IF | CW | – | – | 200 | mA |
| Laser Reverse Voltage | VLR | – | – | – | 2 | V |
| PD Forward Current | IFPD | – | – | – | 5 | mA |
| PD Reverse Voltage | VRPD | – | – | – | 10 | V |
| TEC Current | ITEC | – | -1.5 | – | +1.5 | A |
| TEC Voltage | VTEC | – | -3.5 | – | +3.5 | V |
Note: All data are measured at a laser temperature of 25℃.

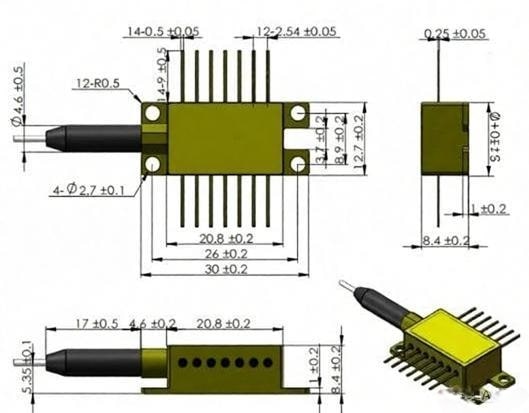

Dimension Drawing (Unit: mm)

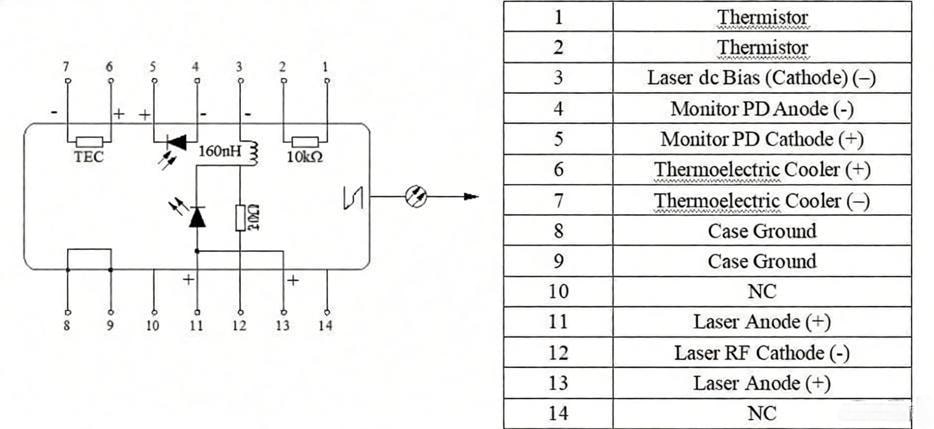

Pin Assignments
