1310nm Polarization Maintaining Fiber Pigtail PM1310 Pigtail Slow Axis
$55.00

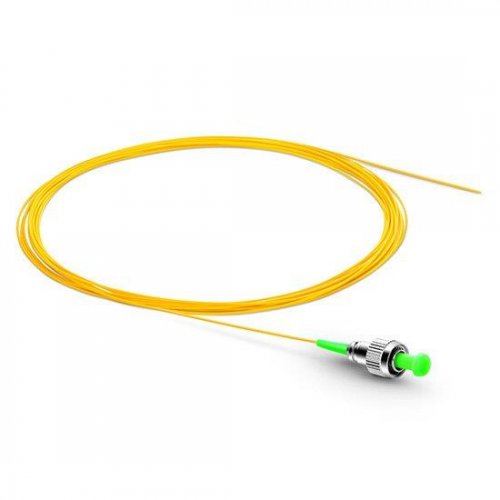

1310nm Polarization Maintaining Fiber Pigtail PM1310 Pigtail Slow Axis
The 1310nm Polarization Maintaining Fiber Pigtail PM1310 Pigtail Slow Axis is designed for high-precision optical systems requiring stable polarization transmission at the 1310 nm wavelength. Built with premium PM1310 polarization-maintaining fiber, it maintains the input polarization state by aligning the connector key with the fiber’s slow axis, delivering excellent polarization extinction ratio, low insertion loss, and outstanding long-term stability.
This PM fiber pigtail is ideal for polarization-sensitive applications in optical communications, fiber optic sensing, interferometric systems, coherent transmission, fiber lasers, and scientific research. Its optimized birefringence design minimizes polarization changes caused by bending, vibration, and temperature fluctuations, ensuring consistent optical performance in demanding environments.
Available with FC, SC, LC, ST, and other connector options in UPC or APC polish, the pigtail can be customized with various fiber lengths, connector configurations, and cable jacket materials to meet the requirements of laboratory, industrial, OEM, and photonics applications.
Specifications
| Parameter | Value | |||
|---|---|---|---|---|
| Center Wavelength | 780/850nm | 980/1030/1060nm | 1310/1480/1550nm | |
| Connector Type | FC/APC, SC/APC, LC/APC, FC/UPC, SC/UPC, LC/UPC | |||
| Insertion Loss | ≤0.8dB | ≤0.7dB | ≤0.5dB | |
| Extinction Ratio | ≥22dB | ≥23dB | ≥23dB | |
| Min. Return Loss | UPC Type | ≥50dB | ||
| APC Type | ≥60dB | |||
| Fiber Type | PM Panda Fiber | |||
| Key Orientation | Slow Axis (Default) or Fast Axis or Both Axis | |||
| Axis Alignment | ±3° | |||
| Operating Temperature | -10 ~ +75°C | |||
| Storage Temperature | -40 ~ +85°C | |||
