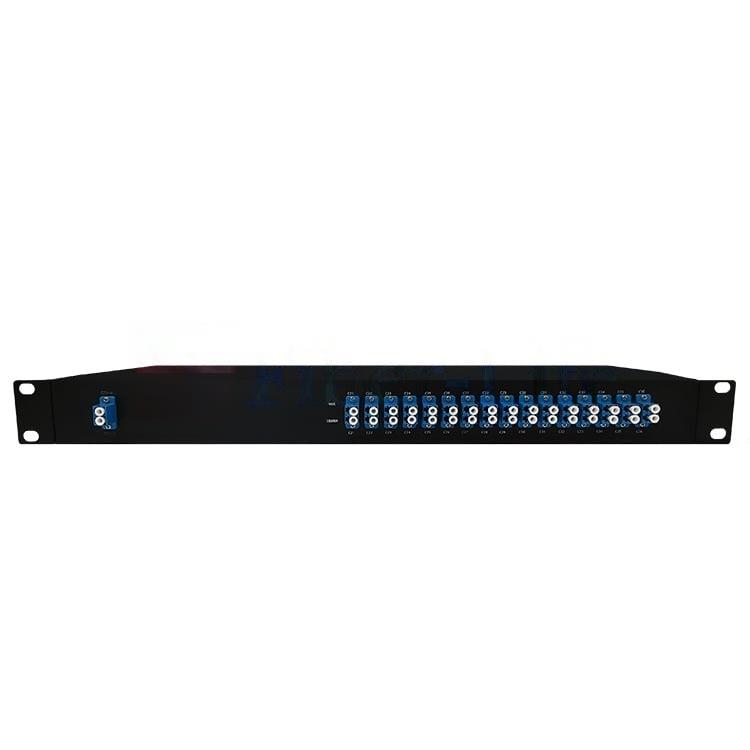

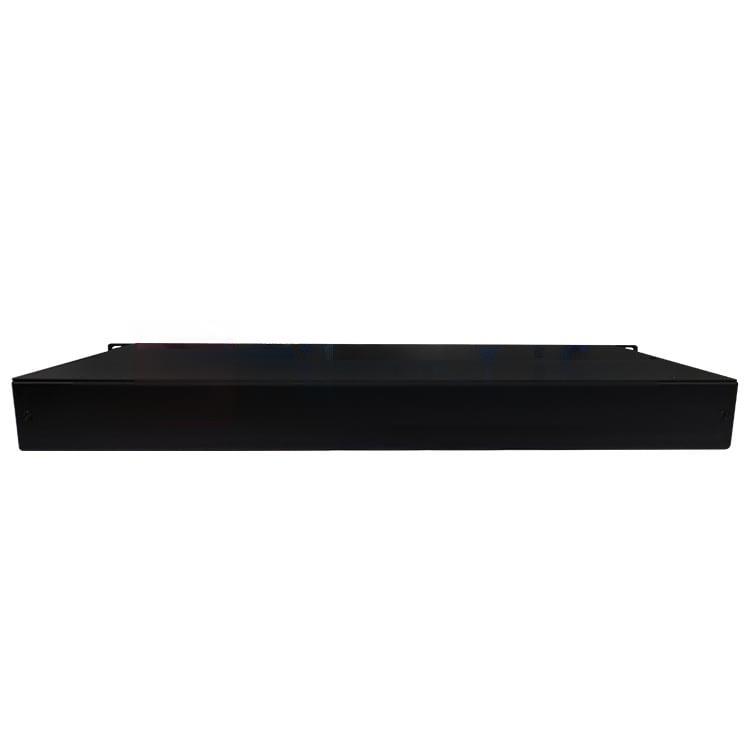

16 Channels DWDM Mux Demux, Dual Fiber, 100GHz/200GHz Spacing, 1U Rack Mount
The 16 Channels DWDM Mux Demux, Dual Fiber, 100GHz/200GHz Spacing, 1U Rack Mount is designed for high-capacity optical transmission, enabling the multiplexing and demultiplexing of up to 16 DWDM channels over dual fibers. Operating on the ITU-T DWDM grid, it supports either 100GHz or 200GHz channel spacing, offering flexible deployment for different network requirements.
$1,155.16
16 Channels DWDM Mux Demux, Dual Fiber, 100GHz/200GHz Spacing, 1U Rack Mount
The 16 Channels DWDM Mux Demux, Dual Fiber, 100GHz/200GHz Spacing, 1U Rack Mount is designed for high-capacity optical transmission, enabling the multiplexing and demultiplexing of up to 16 DWDM channels over dual fibers. Operating on the ITU-T DWDM grid, it supports either 100GHz or 200GHz channel spacing, offering flexible deployment for different network requirements.
Engineered with low insertion loss and high channel isolation, this DWDM Mux Demux ensures stable signal transmission and efficient fiber utilization. The device is available in rackmount housing for easy integration into telecom networks, metro core, and data center interconnects. With optional expansion ports and monitor ports, it provides flexibility for network upgrades, testing, and troubleshooting.
With support for 5G backhaul, cloud networking, enterprise IT, and long-haul transmission, the 16-channel DWDM solution provides an ideal choice for service providers and enterprises seeking to expand bandwidth without laying additional fiber.
Specifications
| Parameter | 4 Channels | 8 Channels | 16 Channels | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength | ITU Grid | ||||||
| Channel Spacing | 100/200GHz | ||||||
| Channel Passband (@-0.5dB bandwidth) | ≥0.22nm (100G) / ≥0.5nm (200G) | ||||||
| Insertion Loss | ≤1.7dB | ≤2.7dB | ≤3.5dB | ||||
| Channel Ripple | ≤0.5dB | ||||||
| Isolation | Adjacent | ≥30dB | |||||
| Non-adjacent | ≥40dB | ||||||
| Insertion Loss Temperature Sensitivity | ≤0.5dB | ||||||
| Wavelength Temperature Shifting | ≤0.001nm/℃ | ||||||
| Polarization Dependent Loss | ≤0.2dB | ||||||
| Polarization Mode Dispersion | ≤0.1ps | ||||||
| Directivity | ≥45dB | ||||||
| Return Loss | ≥45dB | ||||||
| Maximum Power Handling | 300mW | ||||||
| Operating Temperature | -10 ~ +70℃ | ||||||
| Storage Temperature | -40 ~ +85℃ | ||||||
| Package Dimension | L100 x W80 x H10mm | L120 x W80 x H18mm | |||||
| 19″ 1U Rack Mount | |||||||
Note: Above specifications are for devices without connector.
