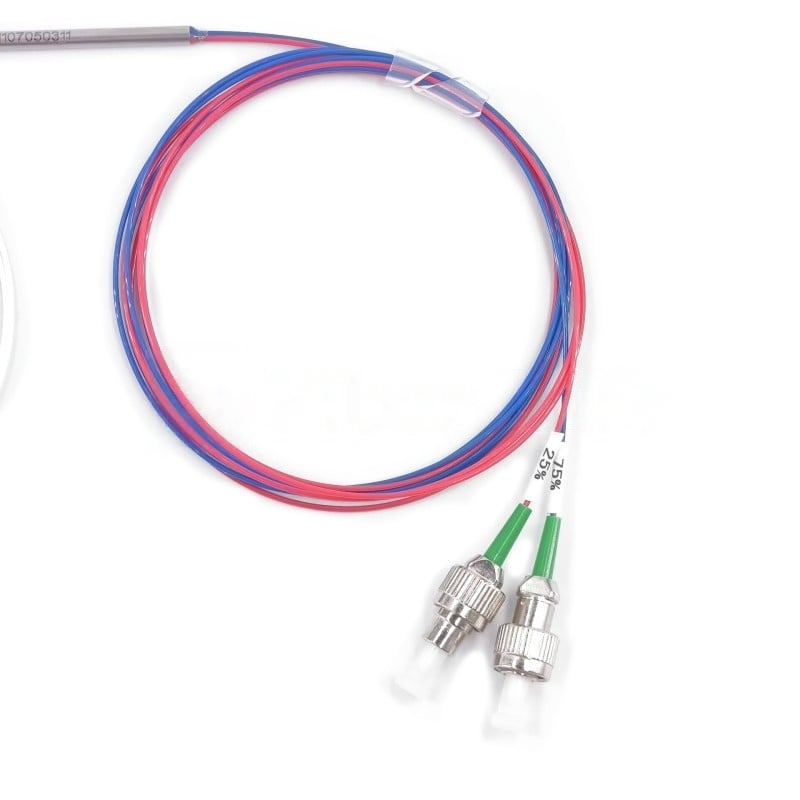

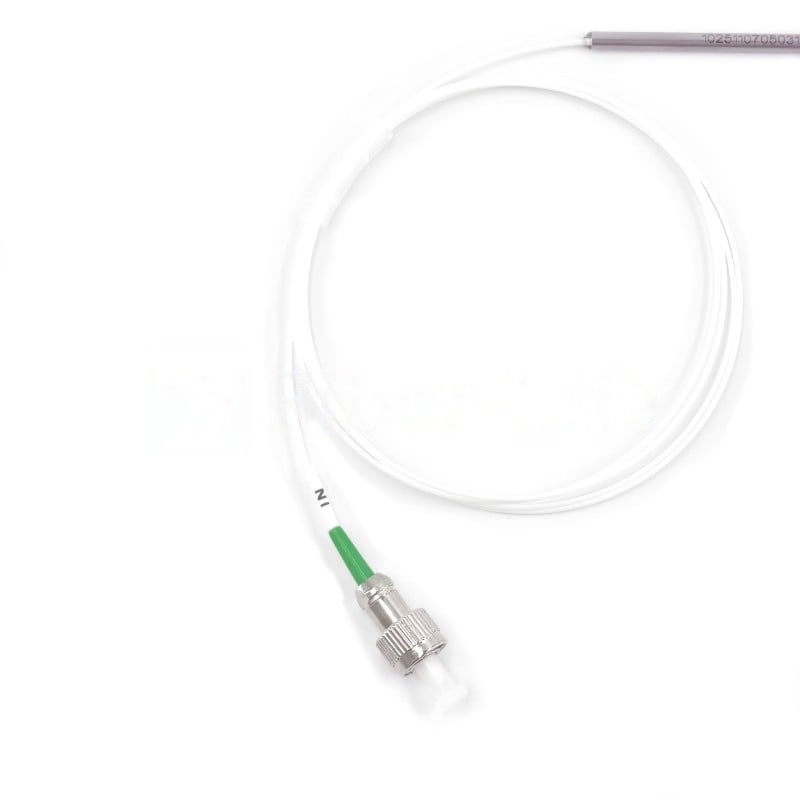

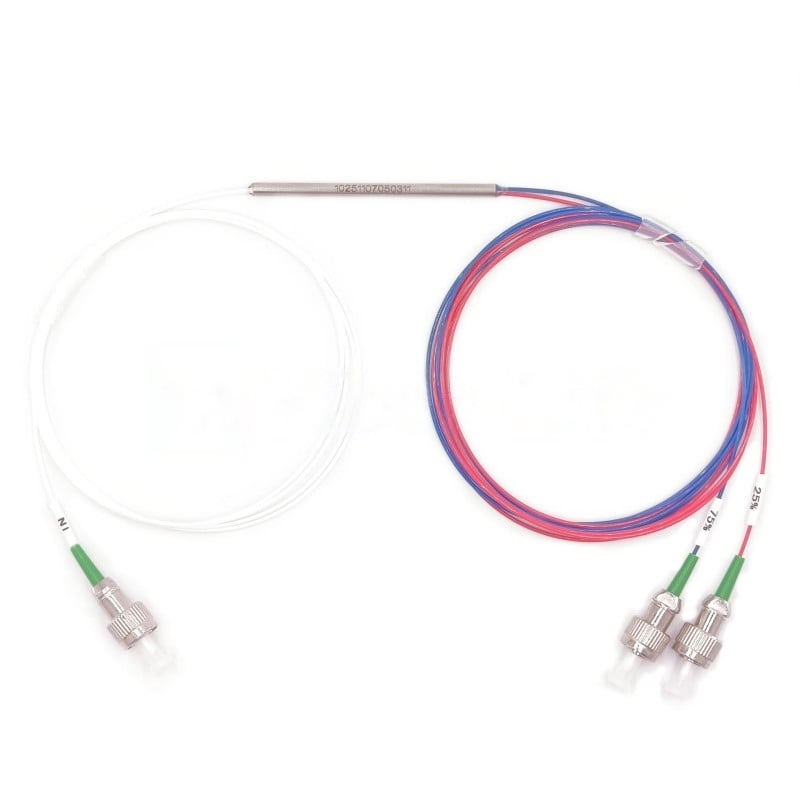

1×2 1260~1620nm All Band Singlemode FBT Coupler Splitter With Steel Tube
The 1×2 1260~1620nm All Band Singlemode FBT Coupler Splitter With Steel Tube is a high-performance optical power-splitting device designed to support the full telecom wavelength range—from 1260 nm to 1620 nm, covering O, E, S, C, L, and U bands. Manufactured using advanced Fused Biconical Taper (FBT) technology, this splitter provides low insertion loss, high splitting accuracy, excellent wavelength stability, and reliable performance across the entire operating band.
$18.28
1×2 1260~1620nm All Band Singlemode FBT Coupler Splitter With Steel Tube
The 1×2 1260~1620nm All Band Singlemode FBT Coupler Splitter With Steel Tube is a high-performance optical power-splitting device designed to support the full telecom wavelength range—from 1260 nm to 1620 nm, covering O, E, S, C, L, and U bands. Manufactured using advanced Fused Biconical Taper (FBT) technology, this splitter provides low insertion loss, high splitting accuracy, excellent wavelength stability, and reliable performance across the entire operating band.

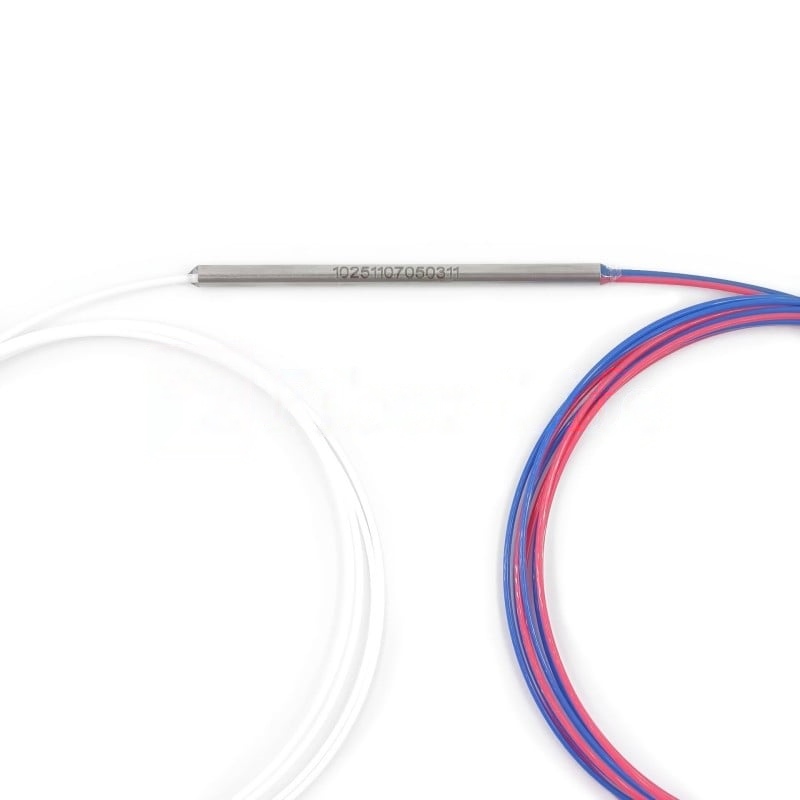

Encased in a durable stainless-steel protective tube, the splitter delivers outstanding mechanical protection and long-term environmental resistance, ensuring stable optical characteristics even in harsh field installations. Its precision fused-taper structure enables low polarization-dependent loss (PDL) and highly uniform splitting performance over broad wavelength ranges.
Available in multiple coupling/split ratios—including 50/50, 60/40, 70/30, 80/20, and 90/10—the FBT device is ideal for multi-wavelength optical systems such as FTTH/FTTx deployment, CWDM/DWDM monitoring, PON networks, CATV transmission, optical sensors, and broadband testing.
Specifications
| Parameter | Value | ||||
|---|---|---|---|---|---|
| Configuration | 1 x 2 or 2 x 2 | ||||
| Type | Single Window | Dual Window | Three Window | All Band | |
| Center Wavelength | 1310/1550nm | 1310 & 1550nm/1310 & 1490nm/1490 & 1550nm | 1310 & 1490 & 1550nm | 1260 ~ 1620nm | |
| Operating Wavelength Range | ±40nm | ±40nm | ±40nm | – | |
| Insertion Loss | 50/50 | ≤3.4dB | ≤3.6dB | ≤3.6dB | ≤3.8dB |
| 10/90 | ≤10.65/0.65dB | ≤11.2/0.75dB | ≤11.2/0.75dB | ≤11.4/1.15dB | |
| 5/95 | ≤13.8/0.4dB | ≤14.15/0.4dB | ≤14.15/0.4dB | ≤14.3/0.8dB | |
| 1/99 | ≤21.15/0.2dB | ≤21.6/0.25dB | ≤21.6/0.25dB | ≤21.95/0.65dB | |
| PDL | ≤0.15dB | ||||
| Directivity | ≥55dB | ||||
| Return Loss | ≥50dB | ||||
| Operating Temperature | -10 ~ +70°C | ||||
| Storage Temperature | -40 ~ +85°C | ||||
| Dimension | Φ3 x 54mm | ||||
Note:
- Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.
- Only the popular coupling ratios are listed. For more parameters, please contact sales@sunmafiber.net.
Dimension Drawing (Unit: mm)
