1×2/2×2 1480/1550nm Fused WDM
Discover the 1×2/2×2 1480/1550nm Fused WDM for efficient signal combining and separation, ideal for EDFA systems and WDM networks to enhance transmission efficiency.
$152.21
1×2/2×2 Fused WDM, 1480/1550nm
The 1×2/2×2 1480/1550nm Fused WDM is a wavelength division multiplexing device that uses fused technology to combine or separate optical signals at 1480nm and 1550nm wavelengths. The 1480nm wavelength is commonly used as the pump light in erbium-doped fiber amplifiers (EDFA), while the 1550nm wavelength is the standard for long-distance fiber optic communication due to its low loss. Available in 1×2 and 2×2 configurations, the 1×2 version can combine or split signals at different wavelengths, and the 2×2 version can manage the combination or splitting of two wavelengths across two ports. This device is widely used in EDFA systems and WDM networks, enhancing bandwidth and transmission efficiency by enabling multiple wavelengths to be transmitted simultaneously on a single fiber.
Specifications
| Parameter | Value |
|---|---|
| Wavelength (nm) | 1480/1550±5 |
| Insertion Loss (Max) | ≤0.25 |
| Isolation (dB) | ≥16 |
| PDL (dB) | ≤0.10 |
| Fiber Type | SMF-28e |
| Directivity (dB) | ≥55 |
| Operating Temperature (°C) | -40 ~ +85 |
| Storage Temperature (°C) | -40 ~ +85 |
| Port Configuration | 1×2 Or 2×2 |
| Package (250μm, 900μm) | Steel Tube |
| Package (2.0mm, 3.0mm) | ABS Box |
| Features | Applications |
|---|---|
| Low Insertion Loss | Long-Haul Uni and Bi-Directional |
| High Isolation | Telecommunications System |
| Compact Size | Digital, Hybrid and AM-Video Systems |
| Top Quality-Price Ratio | High-Speed Multi-Wavelength Systems |
| CATV Links & Fiber Sensors |
Related Products

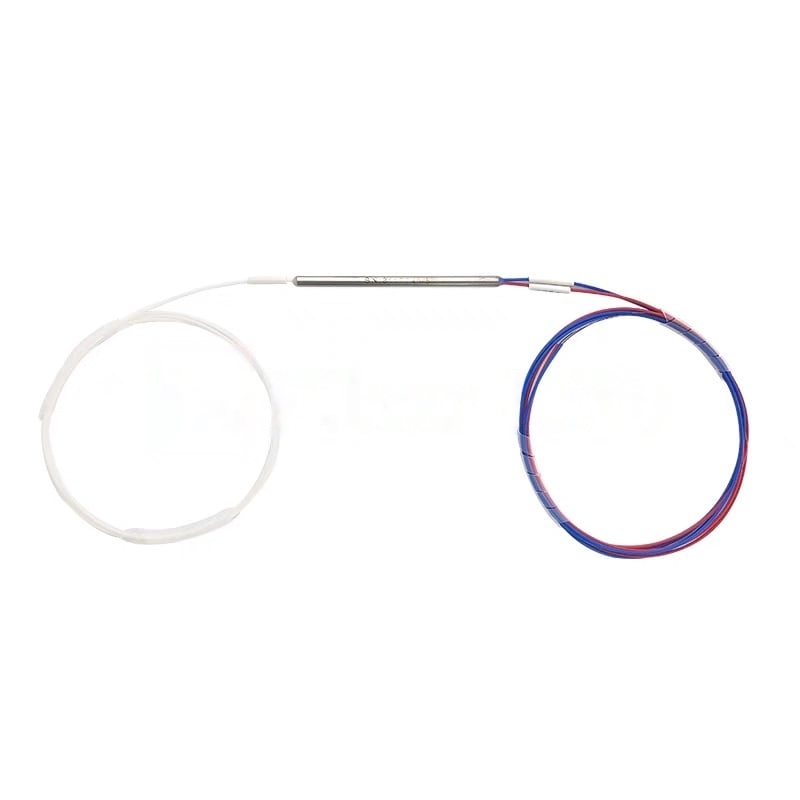

Explore 1×2/2×2 980/1550nm Fused WDM devices for efficient wavelength division multiplexing. Ideal for fiber amplifiers and WDM communication systems, these devices combine or separate optical signals at 980nm and 1550nm wavelengths, improving transmission capacity and signal quality.
