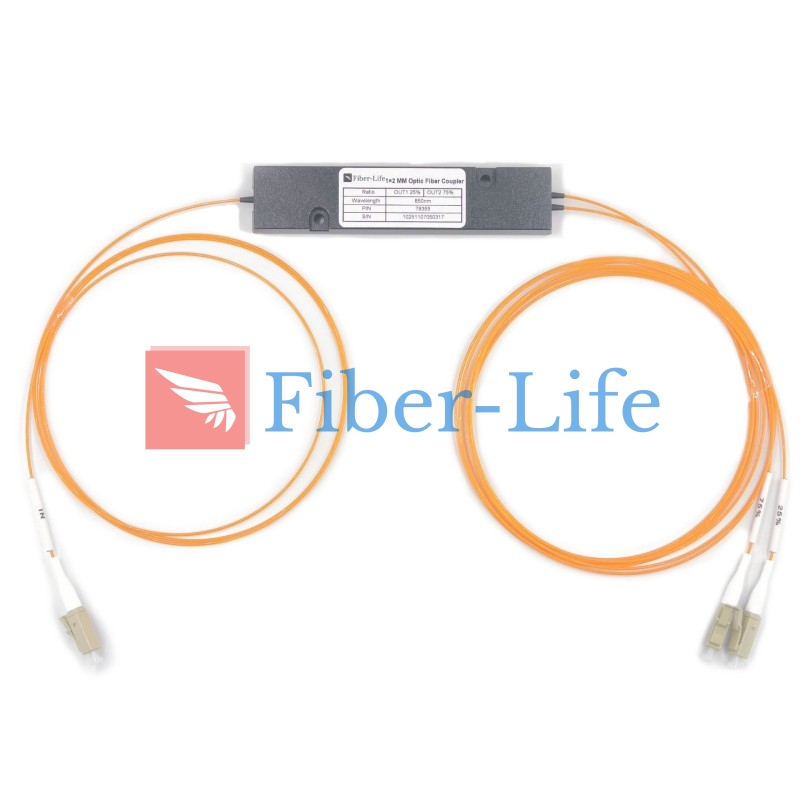

1×2 850nm Single Window Multimode FBT Coupler Splitter With ABS Box
The 1×2 850nm Single Window Multimode FBT Coupler Splitter With ABS Box is a high-performance optical power-splitting device designed for stable and efficient operation in 850 nm multimode fiber networks. Utilizing advanced Fused Biconical Taper (FBT) technology, this splitter provides low excess loss, accurate coupling ratios, stable power distribution, and excellent optical uniformity within the 850 nm operating window.
$33.69
1×2 850nm Single Window Multimode FBT Coupler Splitter With ABS Box
The 1×2 850nm Single Window Multimode FBT Coupler Splitter With ABS Box is a high-performance optical power-splitting device designed for stable and efficient operation in 850 nm multimode fiber networks. Utilizing advanced Fused Biconical Taper (FBT) technology, this splitter provides low excess loss, accurate coupling ratios, stable power distribution, and excellent optical uniformity within the 850 nm operating window.

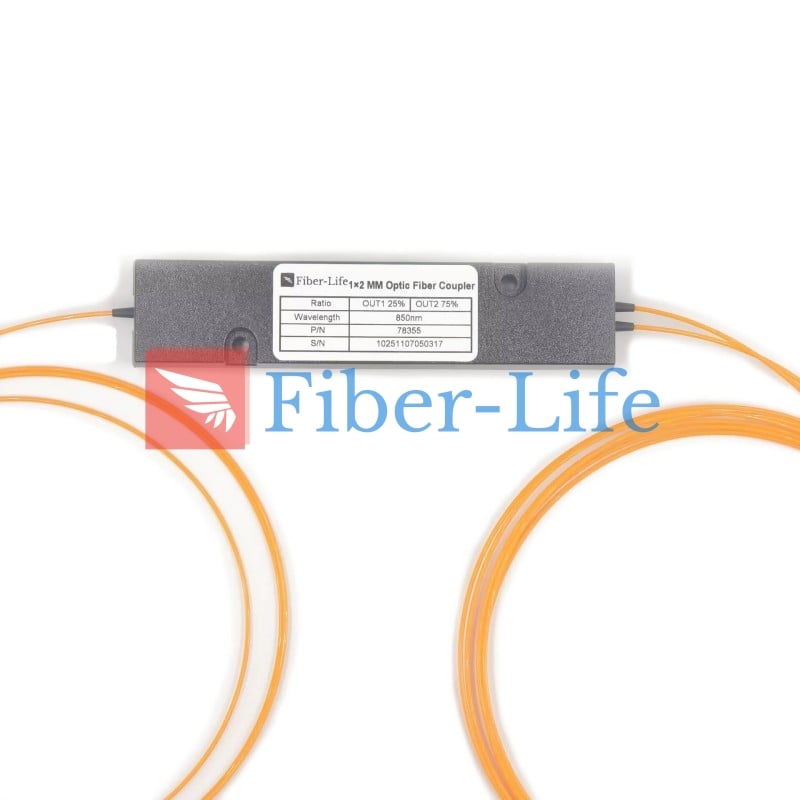

Encased in a durable ABS protective box, the device offers enhanced mechanical protection, easy installation, and long-term reliability in structured network environments. Its precision fused-taper construction ensures consistent optical characteristics, making it ideal for multimode applications requiring dependable and uniform signal splitting.
Available in multiple split/coupling ratios—such as 50/50, 60/40, 70/30, 80/20, and 90/10—the 1×2 multimode splitter is well-suited for LAN systems, short-distance optical communication links, VCSEL-based transmission, multimode optical sensing, monitoring applications, and fiber-optic laboratory testing.
Specifications
| Parameter | Value | ||||
|---|---|---|---|---|---|
| Configuration | 1 x 2 or 2 x 2 | ||||
| Type | Single Window | ||||
| Center Wavelength | 850/1310nm | ||||
| Operating Wavelength Range | ±40nm | ||||
| Insertion Loss | 50/50 | ≤3.7dB | |||
| 10/90 | ≤11.2/0.9dB | ||||
| 5/95 | ≤14.5/0.7dB | ||||
| 1/99 | ≤22/0.5dB | ||||
| PDL | – | ||||
| Directivity | ≥40dB | ||||
| Return Loss | ≥30dB | ||||
| Operating Temperature | -10 ~ +70°C | ||||
| Storage Temperature | -40 ~ +85°C | ||||
| Dimension | 90 x 20 x 10mm | ||||
Note:
- Above specifications are for devices without connector. Add an additional 0.2dB loss per connector.
- Only the popular coupling ratios are listed. For more parameters, please contact sales@sunmafiber.net.
