1×2 Opto-Mechanical Bidi Optical Switch
High-performance 1×2 Opto-Mechanical Fiber Optical Switch with low insertion loss, fast switching, and high reliability. Available in 850/1310/1550nm/1650nm, our switches support customizable length, diameter, and connector types for single-mode and multimode fibers.
$80.00

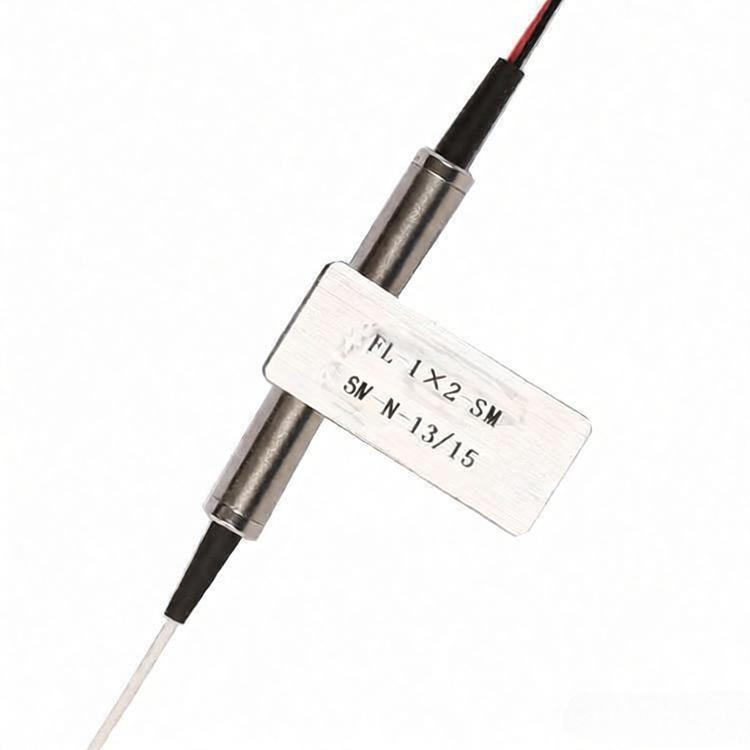

1×2 Mini Opto-Mechanical Bidi Optical Switch
The 1×2 Opto-Mechanical Bi-Directional Fiber Optical Switch is designed to connect optical channels by redirecting one incoming optical signal into two output fibers. It operates using an opto-mechanical configuration and is activated through an electrical control signal. To ensure precise operation, the switch is equipped with integrated electrical position sensors, allowing for accurate control and reliable performance. Built on thin-film filter technology, this switch provides a robust and efficient method for altering the light path. Its simplified platform configuration enhances stability while significantly reducing production costs. The innovative design minimizes the sensitivity of moving parts, ensuring exceptional reliability and long-term stability. With its low insertion loss, fast switching time, and compact structure, this switch is ideal for a wide range of fiber optic applications.
SunmaFiber offers high-performance and cost-effective Opto-Mechanical 1×2 Fiber Optical Switches. Each unit undergoes rigorous in-house testing before shipment to guarantee optimal physical and working condition upon delivery. In addition to the 1×2 configuration, we provide a variety of options, including 1×1, 1×4, 1×8, 2×2, 2x2A, 2x2B, and 2x2BA, as well as Dual 2×2 and Dual 2×2 Bypass configurations. These switches are available for both single-mode and multimode fiber applications, catering to diverse networking needs.
For more details about our Opto-Mechanical Fiber Optic Switches, feel free to contact us at sales@sunmafiber.net.
Specifications
| Parameter | MMF | SMF |
|---|---|---|
| Wavelength Range | 850±40nm | 1260 ~ 1650nm |
| Test Wavelength | 850nm | 1310/1490/1550/1625/1650nm |
| Insertion Loss | Typ: 0.8dB, Max: 1.2dB | Typ: 0.5dB, Max: 0.8dB |
| Return Loss | ≥30dB | ≥50dB |
| Crosstalk | ≥35dB | ≥55dB |
| Polarization Dependent Loss | ≤0.05dB | |
| Wavelength Dependent Loss | ≤0.25dB | |
| Temperature Dependent Loss | ≤0.25dB | |
| Repeatability | ≤0.02dB | |
| Power Supply | 3V or 5V | |
| Lifetime | ≥10⁷ Times | |
| Switch Time | ≤8ms | |
| Transmission Power | ≤500mW | |
| Operating Temperature | -10 ~ +70°C | |
| Storage Temperature | -40 ~ +85°C | |
| Weight | 16g | |
| Dimension (L×W×H) | 27.0 × 12.0 × 8.2mm | |
Note: Above specifications are for device without connector.
Electric
| Specifications | Voltage | Current | Resistance |
| 5V Latching | 4.5 ~ 5.5 | 36 ~ 44mA | 125Ω |
| 5V Non-Latching | 4.5 ~ 5.5 | 26 ~ 32mA | 175Ω |
| 3V Latching | 2.7 ~ 3.3 | 54 ~ 66mA | 50Ω |
| 3V Non-Latching | 2.7 ~ 3.3 | 39 ~ 47mA | 70Ω |
Pins
| Type | Pin | Electric Drive | Status Sensor | ||||||
| 1×2 | Light Pin | Pin1 | Pin5 | Pin6 | Pin10 | Pin2-3 | Pin3-4 | Pin7-8 | Pin8-9 |
| Latching | P1-P2 | V+ | GND | — | — | Open | Close | Close | Open |
| P1-P3 | — | — | GND | V+ | Close | Open | Open | Close | |
| Non-latching | P1-P2 | V+ | — | — | GND | Open | Close | Close | Open |
| P1-P3 | — | — | — | — | Close | Open | Open | Close | |
Optical Route

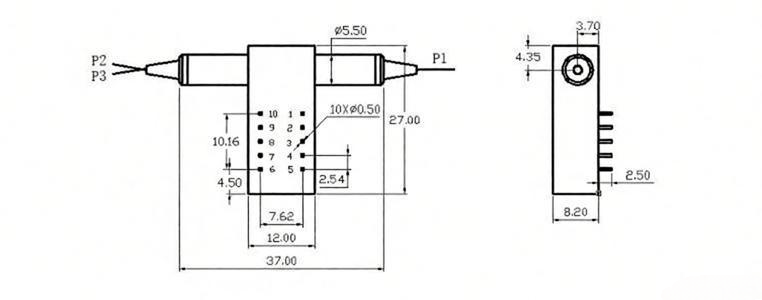

Mechanical Dimensions (Unit: mm)
