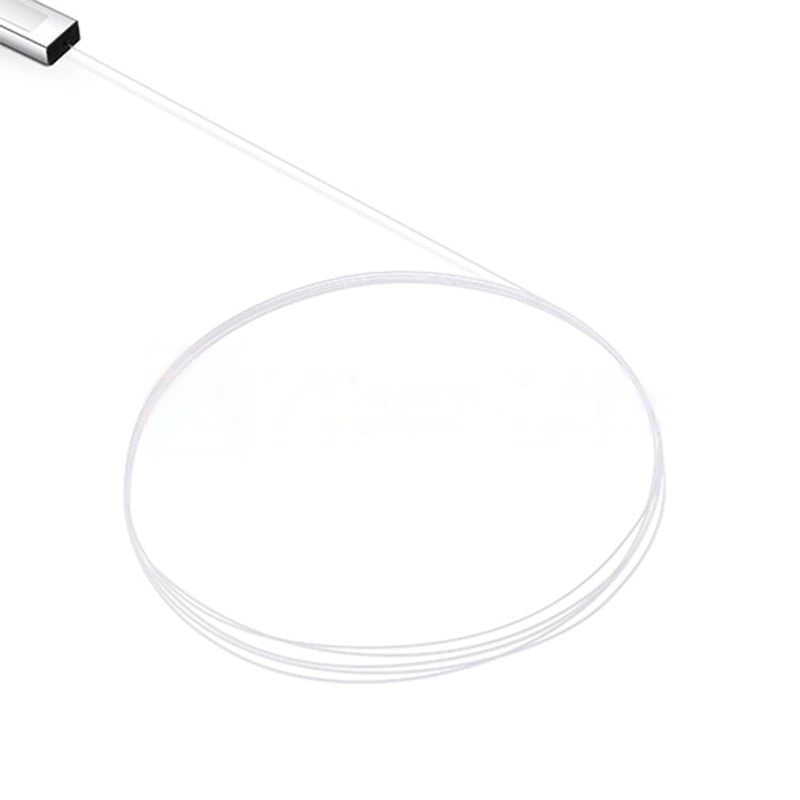

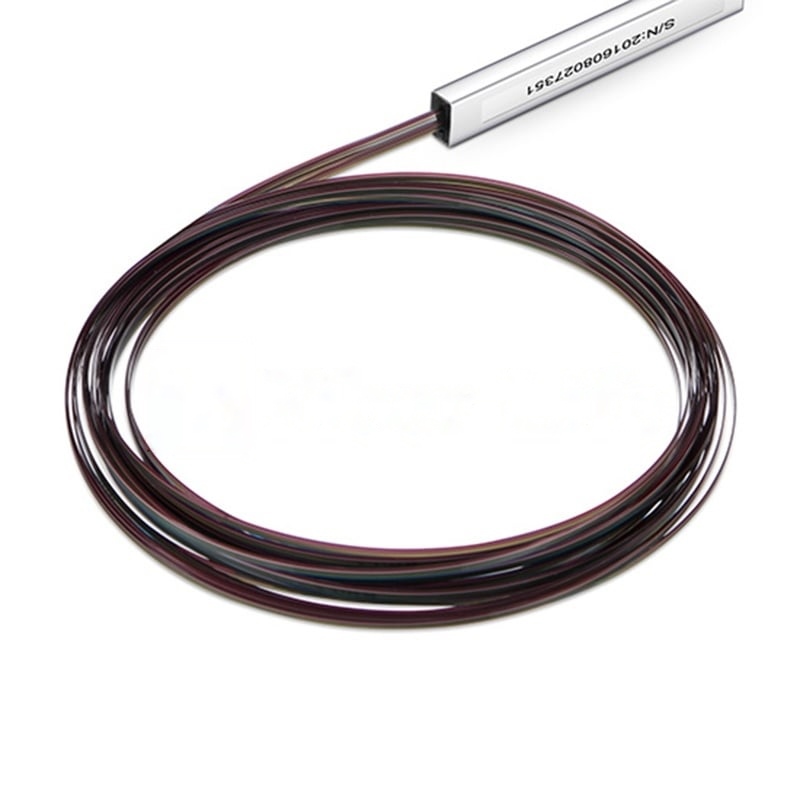

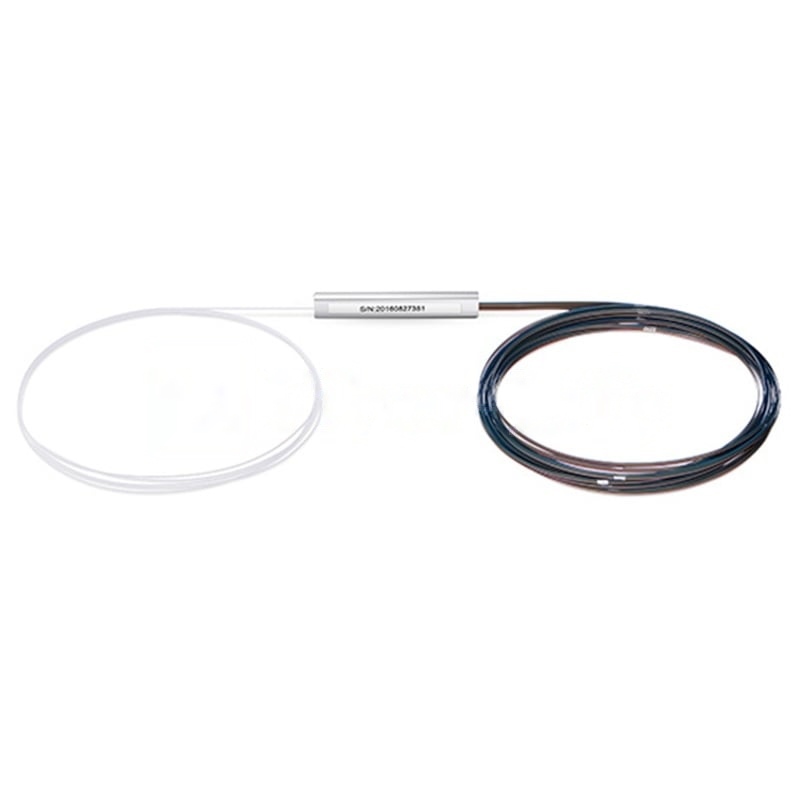

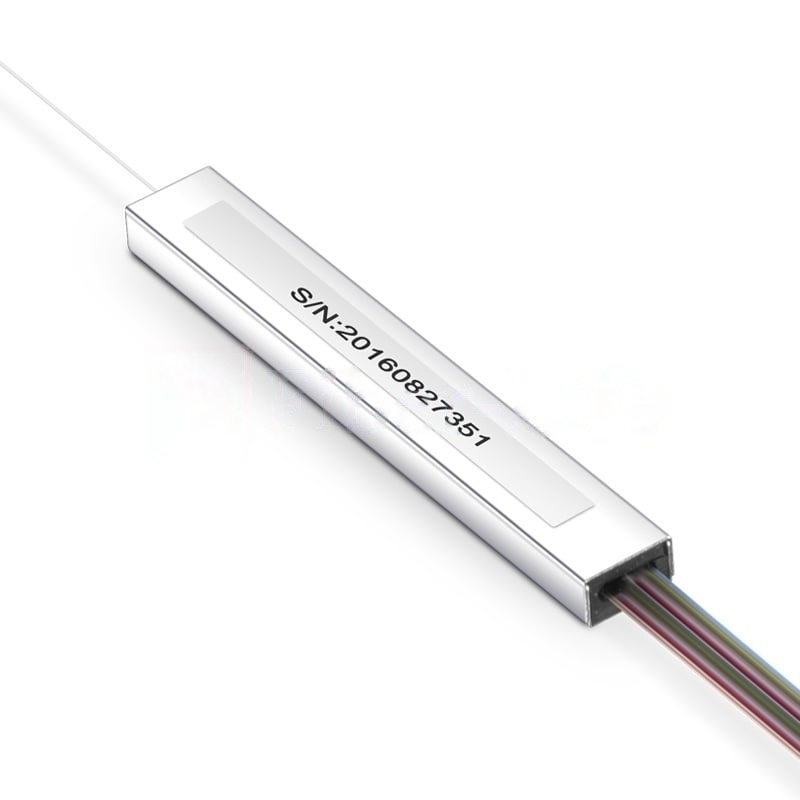

1×32 Singlemode Bare Fiber PLC Splitter
The 1×32 SingleMode Bare Fiber PLC Splitter is an optical splitter designed for single-mode fiber systems that divides an incoming optical signal into 32 separate outputs. With 1 input port and 32 output ports, it is ideal for large-scale optical networks where a signal needs to be distributed to many locations or devices simultaneously. Featuring a bare fiber design, it does not come with pre-installed connectors and is typically used in fusion splicing applications, making it suitable for integration into fiber distribution systems. Based on Planar Lightwave Circuit (PLC) technology, this splitter offers high splitting accuracy, low insertion loss, and exceptional stability. It is widely used in FTTH (Fiber to the Home), optical communications, optical sensing, and testing systems, ensuring reliable and efficient signal distribution in a variety of optical networks.
$22.30
1×32 Singlemode Bare Fiber PLC Splitter
The 1×32 Singlemode Bare Fiber PLC Splitter is an optical splitter designed for single-mode fiber systems that divides an incoming optical signal into 32 separate outputs. With 1 input port and 32 output ports, it is ideal for large-scale optical networks where a signal needs to be distributed to many locations or devices simultaneously. Featuring a bare fiber design, it does not come with pre-installed connectors and is typically used in fusion splicing applications, making it suitable for integration into fiber distribution systems. Based on Planar Lightwave Circuit (PLC) technology, this splitter offers high splitting accuracy, low insertion loss, and exceptional stability. It is widely used in FTTH (Fiber to the Home), optical communications, optical sensing, and testing systems, ensuring reliable and efficient signal distribution in a variety of optical networks.
Specifications
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260nm ~ 1650nm | |||||
| Fiber Type | G657A1 | |||||
| Insertion Loss | ≤3.8dB | ≤7.2dB | ≤10.3dB | ≤13.5dB | ≤16.5dB | ≤20.5dB |
| Loss Uniformity | ≤0.4dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.5dB | ≤2.0dB |
| Polarization Dependent Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3dB | ≤0.4dB |
| Return Loss | ≥50dB | |||||
| Directivity | ≥55dB | |||||
| Wavelength Dependent Loss | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤1.0dB | ≤1.0dB |
| Fiber Length | 1m or Specify | |||||
| Temperature Stability | ≤0.5dB | |||||
| Operating Temperature | -20℃ ~ +85℃ | |||||
| Storage Temperature | -40℃ ~ +85℃ | |||||
| Maximum Power Handing | 500mW | |||||
| Dimension (L×W×H) | 40mm × 4mm × 4mm | 50mm × 7mm × 4mm | 60mm × 12mm × 4mm | |||
Note: Specified without connectors; add an additional 0.2dB loss per connector.
| Features | Applications |
|---|---|
| Low Insertion Loss | FTTX Systems |
| Low PDL | PON Networks |
| Compact Design | CATV Links |
| Good Channel-to-Channel Uniformity | Optical Signal Distribution |
| High Reliability and Stability |
Dimension Drawing (Unit: mm)
