23dBm Output Single Channel Fiber Amplifier 1RU EDFA For L-Band CATV System
This L-band single-channel amplifier is a rackmount package fiber amplifier for CATV System with high output power stability and good reliability.
$1,550.00
23dBm Output Single Channel Fiber Amplifier 1RU EDFA For L-Band CATV System
This L-band single-channel amplifier is a rackmount package fiber amplifier with high output power stability and good reliability. The key components use high-reliability Pump lasers and special APC (automatic gain control) and ATC (automatic temperature control) circuits to ensure high output power stability and good reliability. The optical path designed for fiber-optic communication systems has a lower noise index.
The dual power supply and hot-swappable design make the product a true dual power supply product, which greatly improves the product’s MTBF (mean time between failures). At the same time, the power supply system of the computer room can be backed up.
Specification
| Operating Wavelength | 1570~1605 nm | Input Power | -35~6 dBm |
| Gain | 35 dB | Output Power | 23 dBm |
Feature● Low Noise Figure ● Cover Full L-band Wavelength Range ● Hot-pluggable Redundance Power Supply ● Support SNMP Network Management Interface |
Application● FTTX ● CATV |

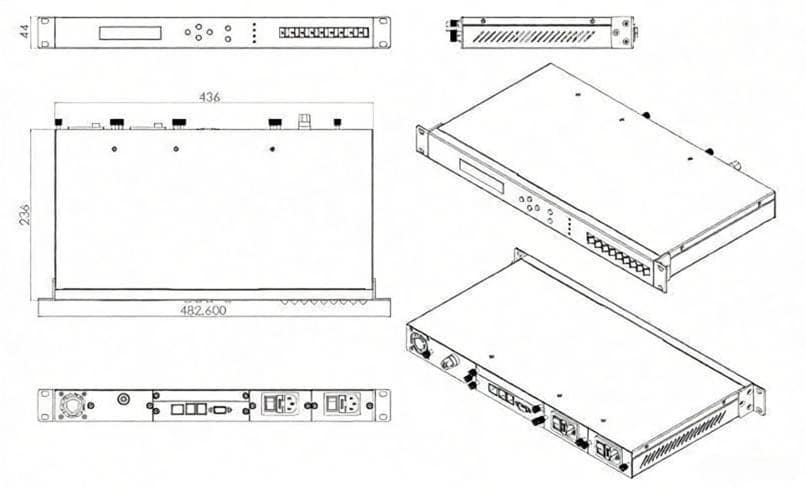

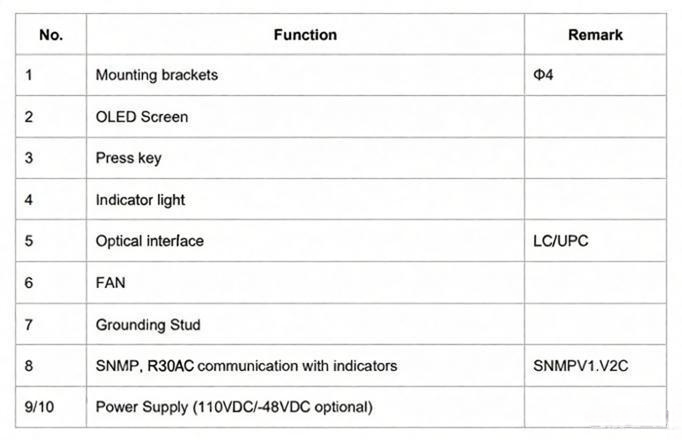

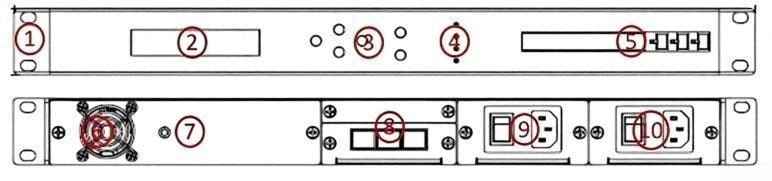

Dimensional Drawing(44*236*483 mm)
