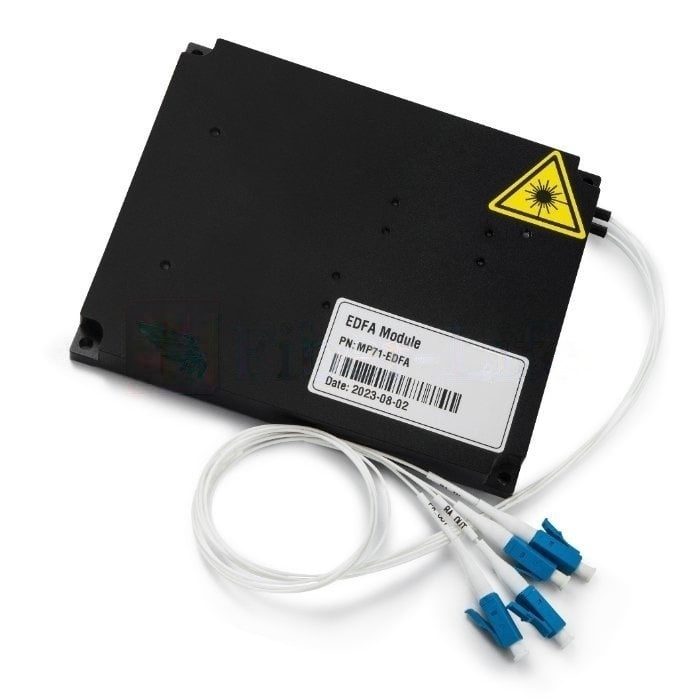

24dBm Output Single Channel Fiber Amplifier EDFA Module For C-Band SDH/CATV System

The EDFA module support C-Band single-channel signal amplification. The main characters are low noise figure, high gain and high output power. The typical noise is about 4.5dB, the maximum gain can reach 40dB, and the maximum output power can be up to 24dBm.The single channel EDFA are widely used in SDH transmission systems and CATV transmission networks.

Specifications

Size 118 x 98 x 12 mm Maximum Output Power 24 dBm
Maximum Gain 40 dB Typical Noise Figure 4.5 dB
Operating Wavelength 1530~1565 nm Operating Mode ACC/APC/AGC(Optional)
Supply Voltage 3.3VDC Vendor Name SunmaFiber

Feature

● Low Noise Figure

● High Reliability

● High Saturated Output Power and High Gain

● AGC/APC/ACC Control Mode

● Compact Size

Application

● SDH Transmission System

● CATV Transmission Networks
