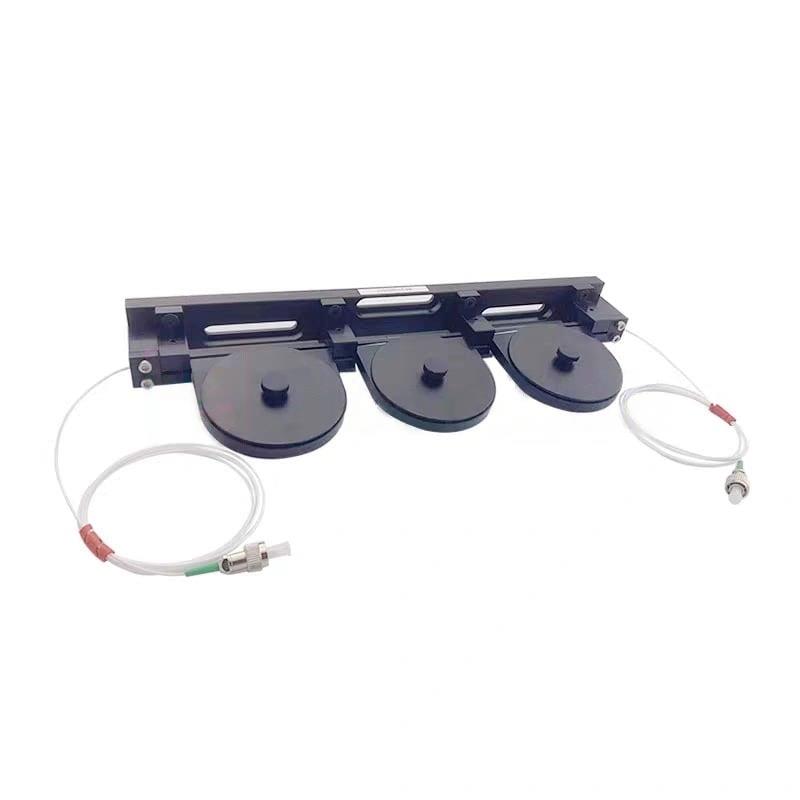

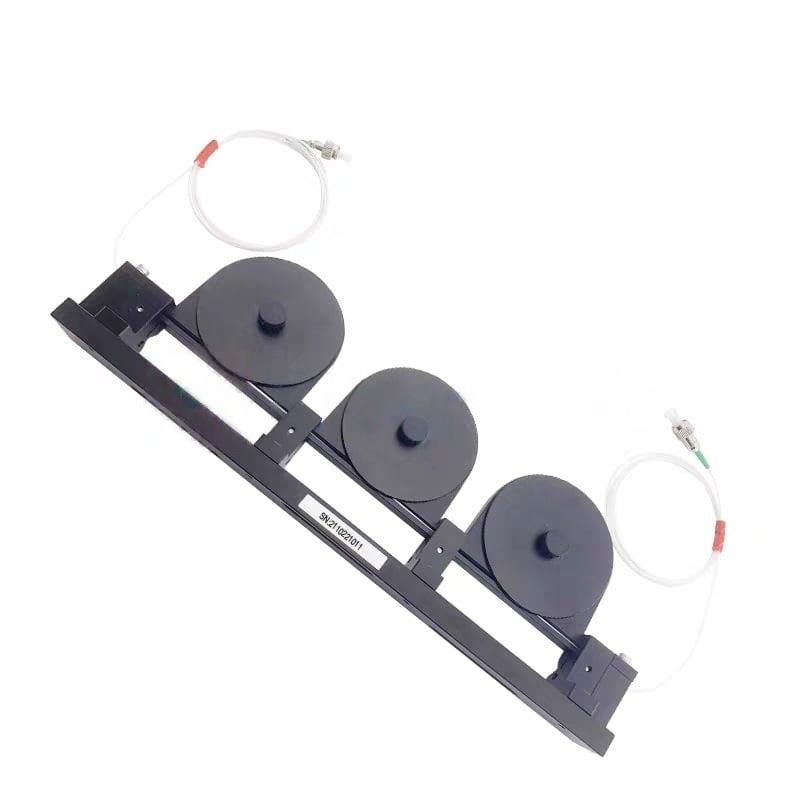

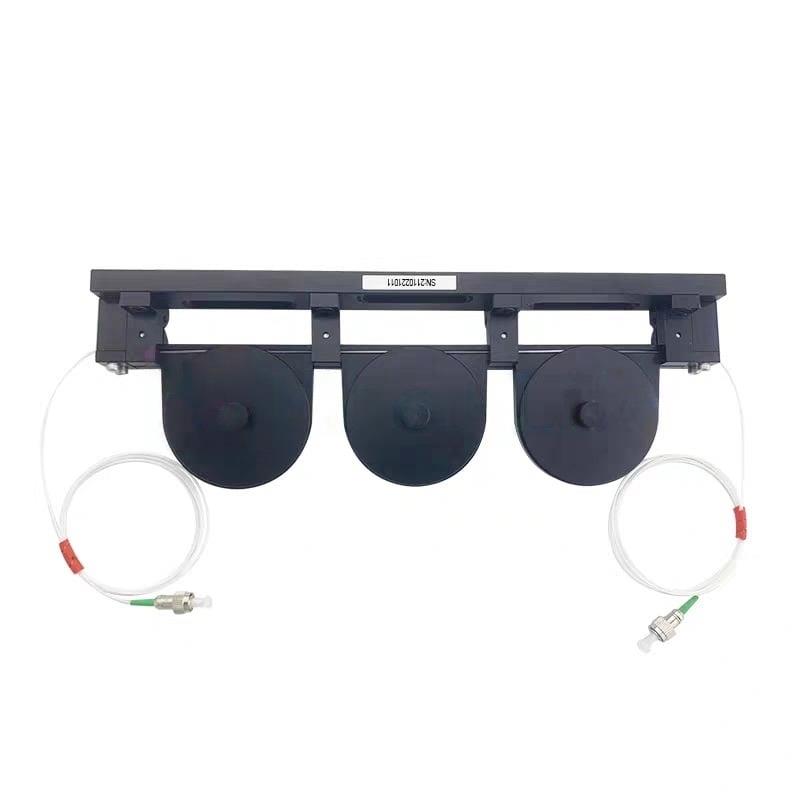

3 Paddles Fiber Polarization Controller, Ø56mm Loop Diameter
The 3 Paddles Fiber Polarization Controller with a Ø56mm loop diameter is an essential optical device designed to control the polarization of light in fiber optic systems. Featuring three adjustable paddles, this controller allows precise manipulation of the light's polarization state by independently adjusting each paddle. The loop diameter of Ø56mm refers to the physical size of the fiber loop, which affects the device's compatibility and performance in various optical setups. This polarization controller is widely used in applications such as polarization-maintaining fiber systems, optical sensors, and telecom networks, ensuring optimal signal quality and system performance by maintaining the desired polarization state.
$242.37
3 Paddles Fiber Polarization Controller, Ø56mm Loop Diameter
The 3 Paddles Fiber Polarization Controller with a Ø56mm loop diameter is an essential optical device designed to control the polarization of light in fiber optic systems. Featuring three adjustable paddles, this controller allows precise manipulation of the light’s polarization state by independently adjusting each paddle. The loop diameter of Ø56mm refers to the physical size of the fiber loop, which affects the device’s compatibility and performance in various optical setups. This polarization controller is widely used in applications such as polarization-maintaining fiber systems, optical sensors, and telecom networks, ensuring optimal signal quality and system performance by maintaining the desired polarization state.
Specifications
| Parameter | Value | |||||
|---|---|---|---|---|---|---|
| Number of Paddles | 3 | |||||
| Loop Diameter (mm) | 56 | |||||
| Dimension (mm) | L273 X W25 | |||||
| Fiber Type | None | 460-HP | 630-HP | 780-HP | 1060-XP | SMF-28e |
| Operating Wavelength Range (nm) | N/A | 450-600 | 600-770 | 780-970 | 980-1600 | 1260-1650 |
| Test Wavelength Range (nm) | N/A | 488 | 633 | 780 | 1060 | 1550 |
| Mode Field Diameter (μm) | N/A | 3.5±0.5μm@515nm | 4.0±0.5μm@630nm | 5.0±0.5μm@850nm | 6.2±0.5μm@1060nm | 9.7±0.5μm@1550nm |
| Numerical Aperture | N/A | 0.13 | 0.13 | 0.13 | 0.14 | 0.14 |
| Cable Diameter (μm) | 900 | |||||
| Number of winding turns | N/A | 3-2-3 | 4-3-4 | 2-4-2 | 2-4-2 | 3-6-3 |
| Total Fiber Length (m) | 4 | 5 | ||||
| Connector | FC/APC | |||||
| Bend Loss (dB) | ≤0.1 | |||||

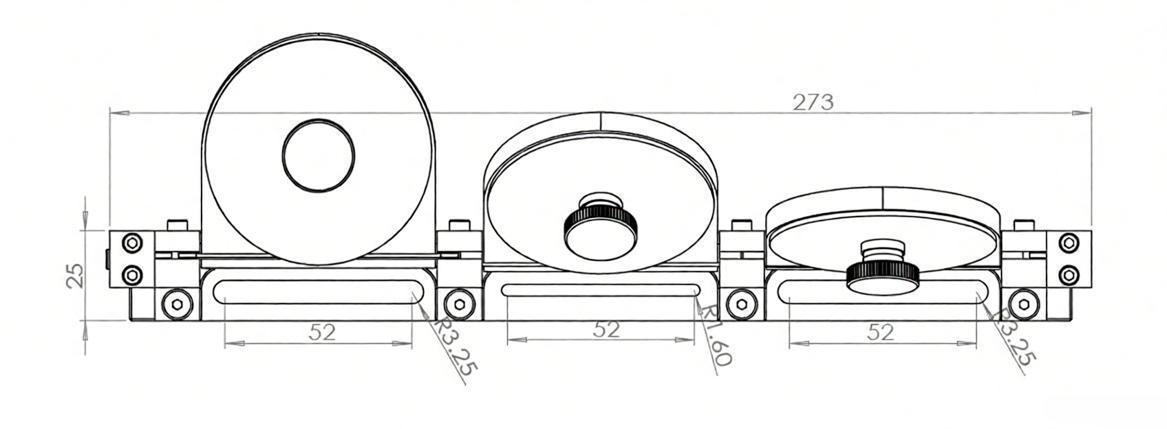

Dimension Drawing (Unit: mm)
