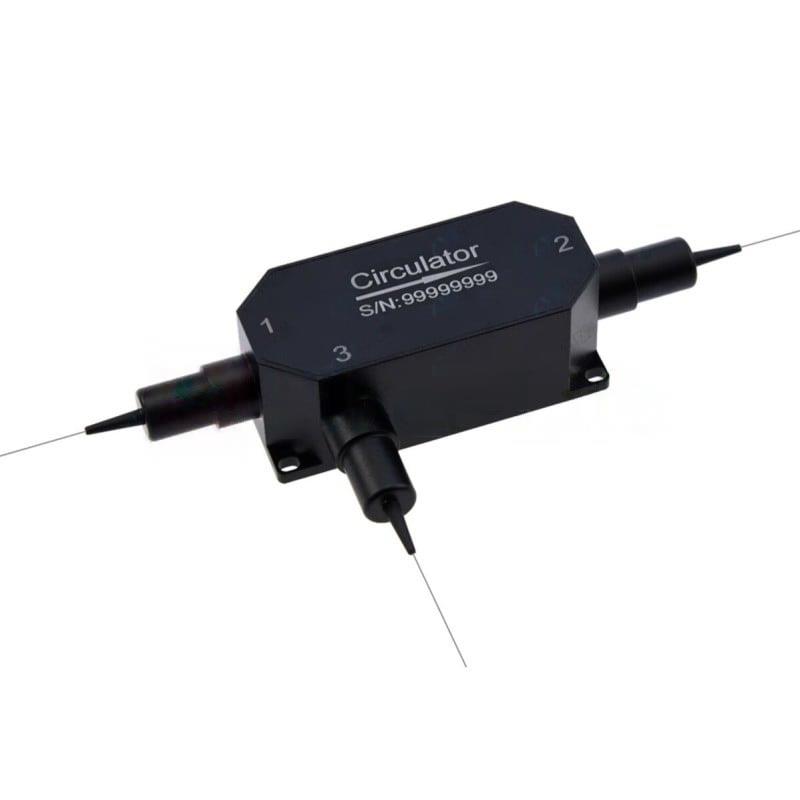

3 Ports 1030nm High Power Polarization Insensitive Optical Circulator
The 3 Ports 1030nm High Power Polarization Insensitive Optical Circulator is a precision-engineered non-reciprocal passive optical device designed to direct light sequentially from Port 1 → Port 2 and Port 2 → Port 3 while maintaining excellent optical isolation and minimal insertion loss. Operating at 1030 nm, this circulator is optimized for high-power fiber laser and amplifier systems, providing reliable performance in demanding industrial and scientific applications.
$720.00
3 Ports 1030nm High Power Polarization Insensitive Optical Circulator
The 3 Ports 1030nm High Power Polarization Insensitive Optical Circulator is a precision-engineered non-reciprocal passive optical device designed to direct light sequentially from Port 1 → Port 2 and Port 2 → Port 3 while maintaining excellent optical isolation and minimal insertion loss. Operating at 1030 nm, this circulator is optimized for high-power fiber laser and amplifier systems, providing reliable performance in demanding industrial and scientific applications.
With its polarization-insensitive design, the device delivers consistent optical characteristics regardless of the input polarization state. It features low insertion loss, high isolation, high return loss, and superior thermal stability, ensuring reliable operation even under elevated power conditions. Built with LMA-GDF-10/125-M fiber, it guarantees true singlemode transmission and excellent beam quality for precision laser processing or measurement setups.
The robust and compact design of this circulator makes it ideal for integration in Yb-doped fiber laser systems, ultrafast laser setups, nonlinear optics, interferometers, and optical diagnostic instruments, where high power handling and stable optical performance are essential.
Specifications
| Parameter | Value | |||||
|---|---|---|---|---|---|---|
| Center Wavelength | 1030nm | 1064nm | 1080nm | 1310/1480/1550nm | 1950/2000/2050nm | |
| Operating Wavelength Range | ±10nm | ±10nm | ±10nm | ±15nm | ±30nm | |
| Isolation | ≥25dB | ≥25dB | ≥25dB | ≥28dB | ≥16dB | |
| Insertion Loss | ≤1.2dB | ≤1.2dB | ≤1.2dB | ≤0.8dB | ≤1.5dB | |
| Polarization Dependent Loss | ≤0.15dB | |||||
| Max CW Power | 5/10/20/30/50/100W | |||||
| Max Peak Power (Pulse) | 1/5/10/20KW@ns pulse | |||||
| Cross Talk | ≥50dB | ≥40dB | ||||
| Return Loss | ≥45dB | |||||
| Fiber Type | SM Fiber | |||||
| Dimension | 64 x 28 x 26mm | 35 x 18 x 10mm | ||||
| Operating Temperature | 0 ~ +60°C | |||||
| Storage Temperature | -10 ~ +75°C | |||||
Note: Test environment: 25°C. Data shown exclude connectors.
