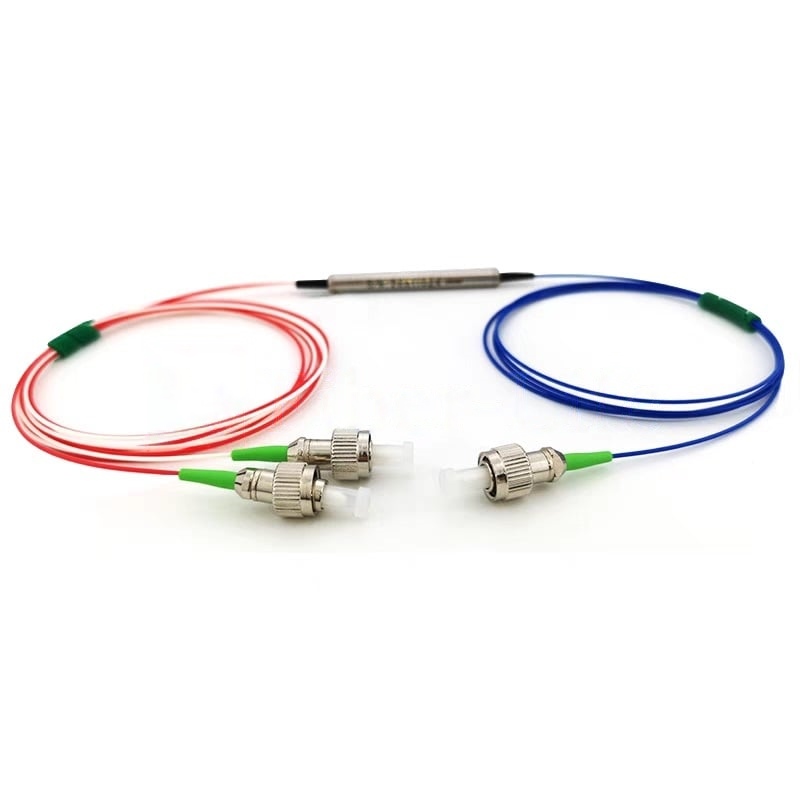

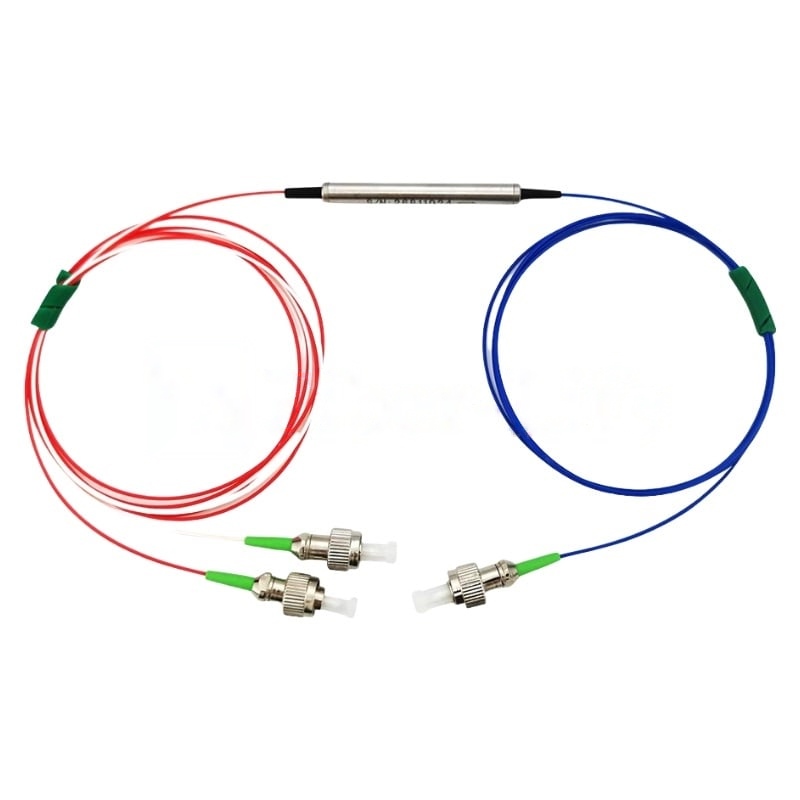

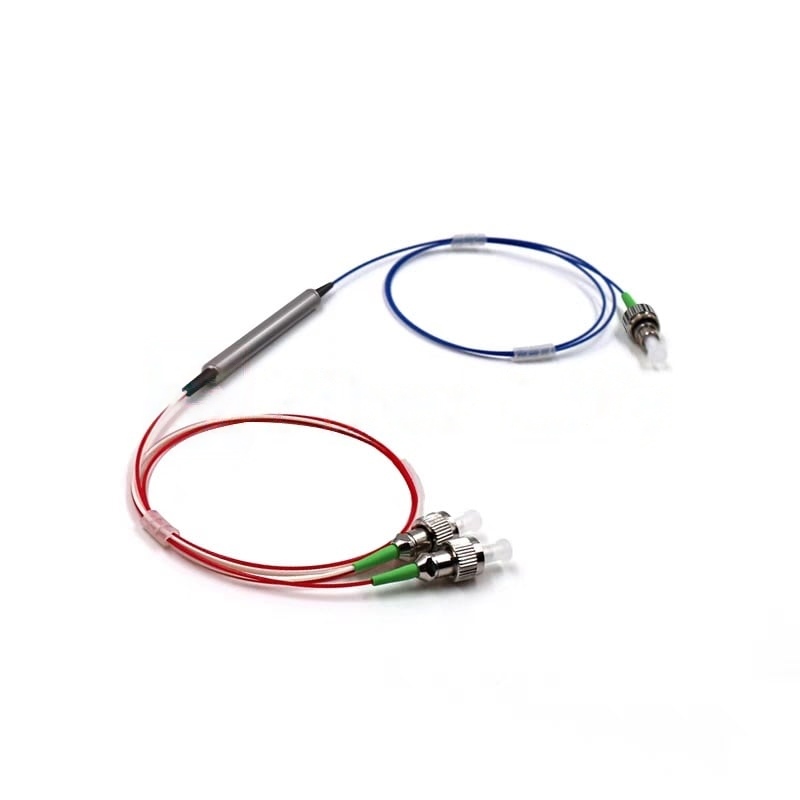

3 Ports S+C+L 1470-1610nm Polarization Insensitive Optical Circulator
The 3 Ports S+C+L 1470-1610nm Polarization Insensitive Optical Circulator is a type of optical circulator designed to operate within the S, C, and L bands (1470-1610nm wavelength range). With three ports, it directs light in a circular sequence: light entering port 1 goes to port 2, light entering port 2 goes to port 3, and light entering port 3 returns to port 1. Its polarization-insensitive nature ensures efficient performance regardless of the polarization state of the light, making it ideal for optical communication systems where polarization may vary. This circulator is commonly used in systems like dense wavelength division multiplexing (DWDM), optical amplifiers, and fiber optic testing.
$133.28
3 Ports Polarization Insensitive Optical Circulator S+C+L 1460-1625nm
The 3 Ports S+C+L 1470-1610nm Polarization Insensitive Optical Circulator is a type of optical circulator designed to operate within the S, C, and L bands (1470-1610nm wavelength range). With three ports, it directs light in a circular sequence: light entering port 1 goes to port 2, light entering port 2 goes to port 3, and light entering port 3 returns to port 1. Its polarization-insensitive nature ensures efficient performance regardless of the polarization state of the light, making it ideal for optical communication systems where polarization may vary. This circulator is commonly used in systems like dense wavelength division multiplexing (DWDM), optical amplifiers, and fiber optic testing.
Specifications
| Parameter | Value | |
|---|---|---|
| Configuration | Port 1 to Port 2 to Port 3 | |
| Operation Wavelength (nm) | 1470~1610 | |
| Typical Insertion Loss (dB) | 1.3 | |
| Maximum Insertion Loss (dB) | 1.5 | |
| Typical Isolation (dB) | ≥50 | |
| Minimum Isolation (dB) | ≥28 | |
| Cross Talk (dB) | ≥45 | |
| Polarization Dependent Loss (dB) | ≤0.2 | |
| Polarization Mode Dispersion (dB) | ≤0.1 | |
| Return Loss (dB) | ≥50 | |
| Power Handling (mW) | 500 | |
| Operating Temperature (℃) | -10 ~ +75 | |
| Storage Temperature (℃) | -40 ~ +85 | |
| Package Dimension (mm) (250μm, 900μm) | Φ5.5xL50 (Steel Tube) | |
| Package Dimension (mm) (2.0mm, 3.0mm) | L90xW20xH10 (ABS Box) | |
Note: Above specification are for device without connector.
| Features | Applications |
|---|---|
| Low Insertion Loss | Optical Amplifier |
| Wide Band High Isolation | Metro Area Network |
| Low PDL | Wavelength Add/Drop |
| High Stability and Reliability | Dispersion Compensation |
| Compact In-Line Package | Bi-Directional Communication |
| Epoxy-free on Optical Path |

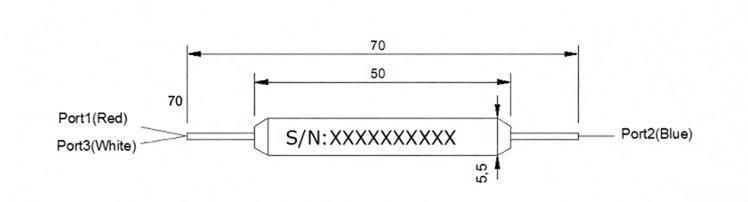

Dimensions (Unit: mm)
