780nm Polarization Maintaining Fiber Patch Cable, Slow Axis
The 780nm Polarization Maintaining Fiber Patch Cable, Slow Axis Working is designed for applications requiring stable polarization transmission at the 780 nm operating wavelength. Manufactured with high-quality polarization maintaining fiber, the cable provides low insertion loss, high extinction ratio, and excellent polarization stability.
$95.00

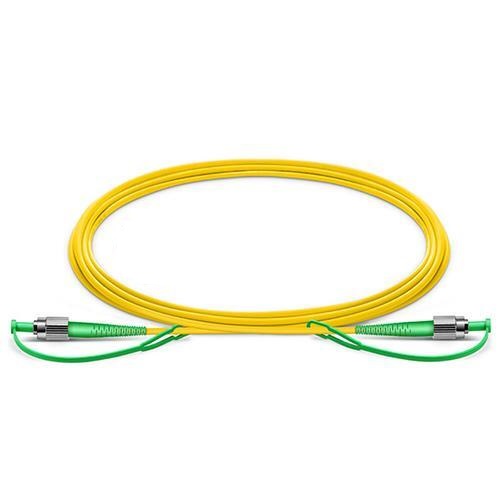

780nm Polarization Maintaining Fiber Patch Cable, Slow Axis Working
The 780nm Polarization Maintaining Fiber Patch Cable, Slow Axis Working is designed for applications requiring stable polarization transmission at the 780 nm operating wavelength. Manufactured with high-quality polarization maintaining fiber, the cable provides low insertion loss, high extinction ratio, and excellent polarization stability. The connector key is precisely aligned with the slow axis of the PM fiber, allowing linearly polarized light to be launched and transmitted along the slow axis with minimal polarization crosstalk. Various connector types, polishing options, fiber jacket diameters, and cable lengths are available to meet different system requirements. It is suitable for atomic physics experiments, spectroscopy, interferometry, fiber lasers, sensing systems, laboratory research, and other polarization-sensitive optical applications.
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength | 780nm |
| Connector Type | SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST/APC, ST/UPC |
| Insertion Loss at 23°C | ≤0.3dB |
| Extinction Ratio at 23°C | ≥23dB |
| Return Loss | UPC≥50dB, APC≥60dB |
| Fiber Type | PM Panda Fiber |
| Key Orientation | Slow Axis |
| Axis Alignment | ±3° |
| Operating Temperature | -10 ~ +75°C |
| Storage Temperature | -40 ~ +85°C |
