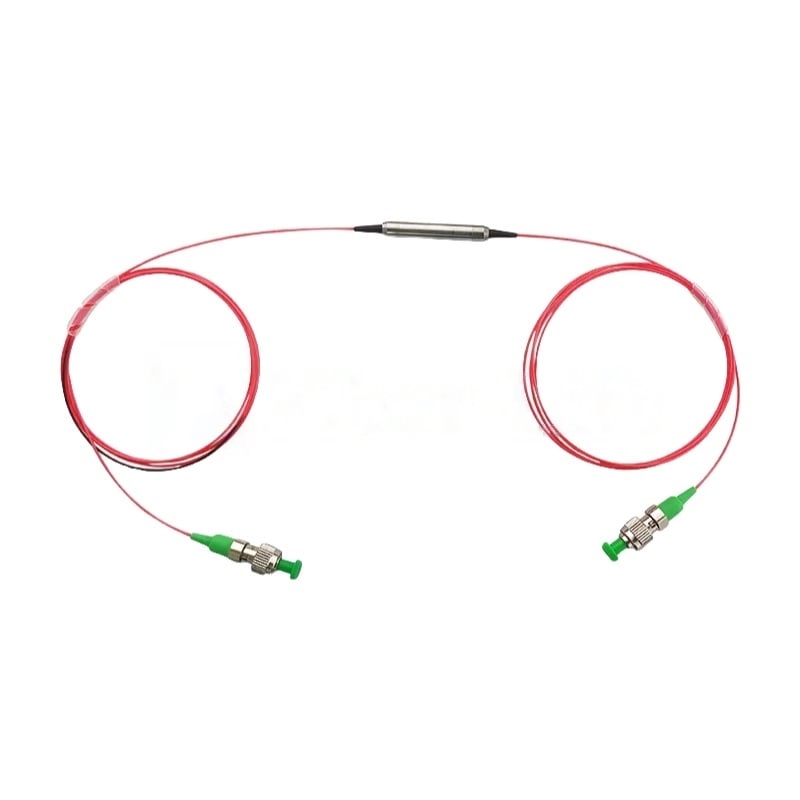

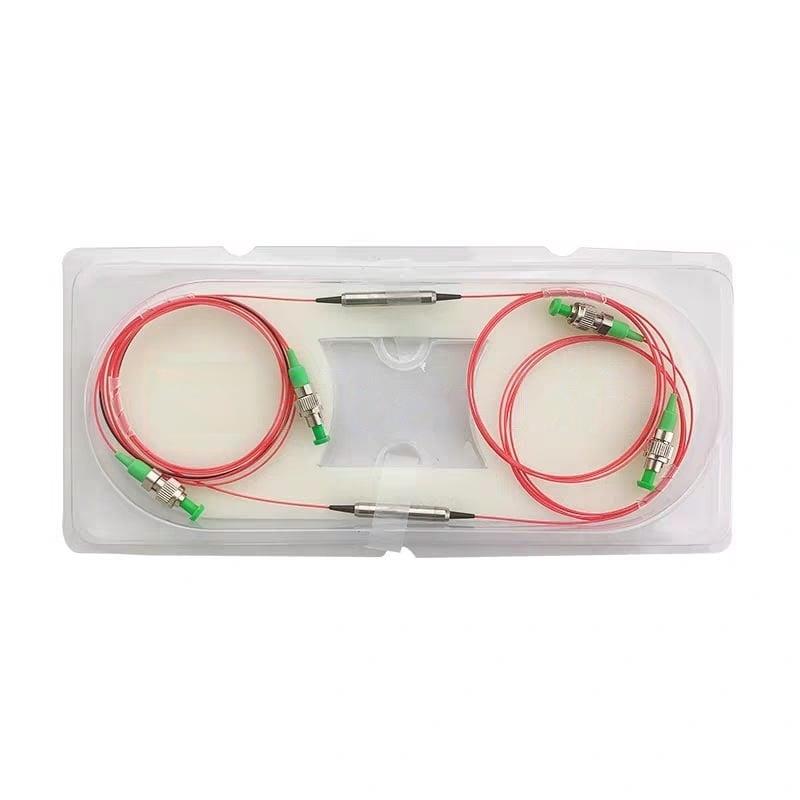

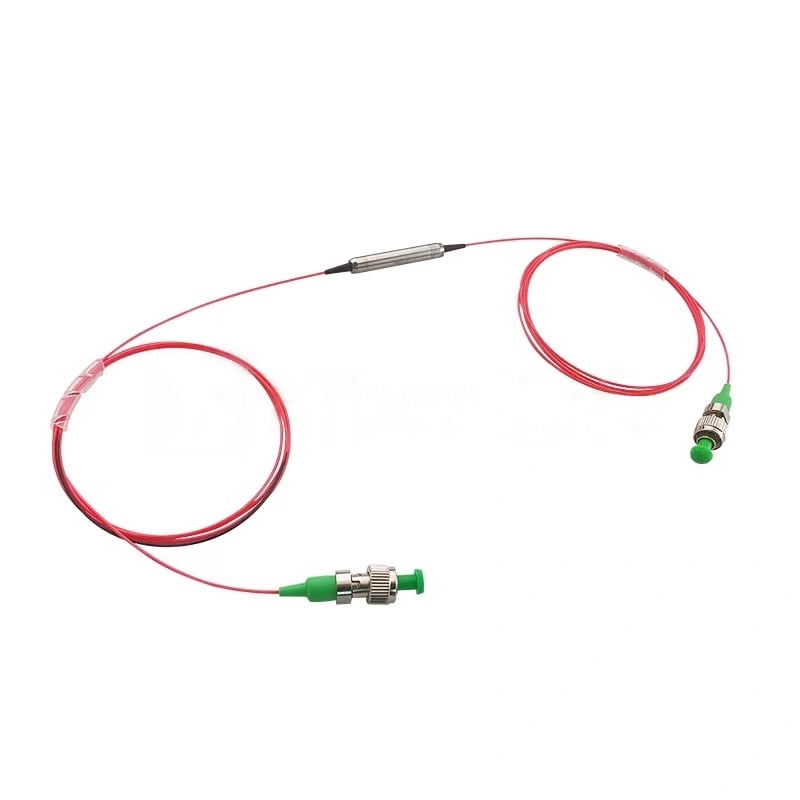

780nm Polarization Maintaining In-Line Polarizer
Discover the high-performance 780nm Polarization Maintaining In-Line Polarizer with low insertion loss (≤1.3dB) and high extinction ratio (≥25dB). Ideal for fiber sensing, quantum optics, and laser systems. Customizable options available. Learn more today!
$398.14
780nm Polarization Maintaining In-Line Polarizer | High Extinction Ratio & Low Insertion Loss
The 780nm Polarization Maintaining (PM) In-Line Polarizer is a high-performance optical component designed to transmit light with a specific polarization while blocking unwanted polarization states. Featuring low insertion loss (≤1.3dB) and a high extinction ratio (≥25dB), this PM in-line polarizer ensures superior signal integrity in high-precision applications.
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength (nm) | 780 |
| Bandwidth (nm) | ±10 |
| Typical Insertion Loss (@23℃) (dB) | 0.8 |
| Insertion Loss (@23℃) (dB) | ≤1.3 |
| Typical Extinction Ratio (@23℃) (dB) | 28 |
| Extinction Ratio (@23℃) (dB) | ≥25 |
| Min. Return Loss (dB) | ≥50 |
| Max.Optical Power (mW) | 300 |
| Max.Tensile Load (N) | 5 |
| Operating Temperature (℃) | -5 ~ +70 |
| Storage Temperature (℃) | -40 ~ +85 |
| Fiber Type | PM Fiber or SMF-28e |
| Package Dimension (mm) | Φ5.5xL35 |
Note: For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
Key Features:
✅ Center Wavelength: 780nm
✅ Low Insertion Loss: ≤1.3dB
✅ High Extinction Ratio: ≥25dB
✅ High Stability & Reliability
✅ Compact Design for Easy Integration
Applications:
🔹 Optical Fiber Sensing
🔹 Quantum Optics Research
🔹 Laser Systems
🔹 Fiber Optic Communication
🔹 Biomedical Imaging
Built with polarization-maintaining fiber (PM fiber) or SMF-28e, the 780nm PM In-Line Polarizer is ideal for applications requiring precise polarization control. Its compact Φ5.5×L35mm package makes it easy to integrate into various optical systems.
Why Choose Our 780nm PM In-Line Polarizer?
✅ Superior Performance: Ensures minimal signal loss and high polarization purity.
✅ Customization Available: Fiber type, connector options, and packaging can be tailored to your needs.
✅ Wide Operating Temperature Range: Designed to perform in 0°C to +70°C, with storage capability from -40°C to +85°C.
Enhance your fiber optic system with our 780nm Polarization Maintaining In-Line Polarizer—designed for precision, stability, and efficiency. Contact us today for more details!
Dimensions (Unit: mm)
