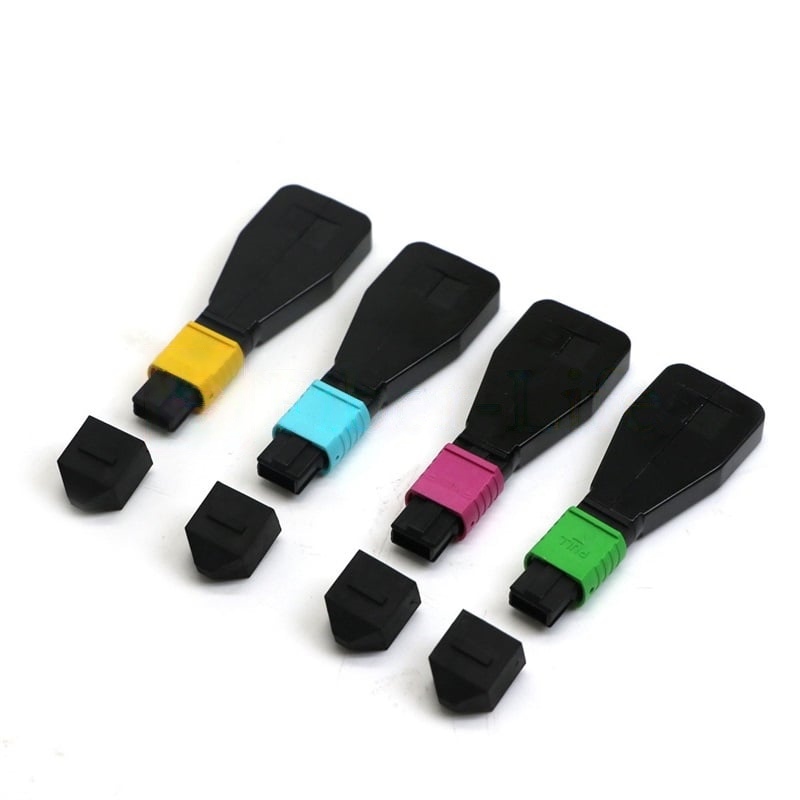

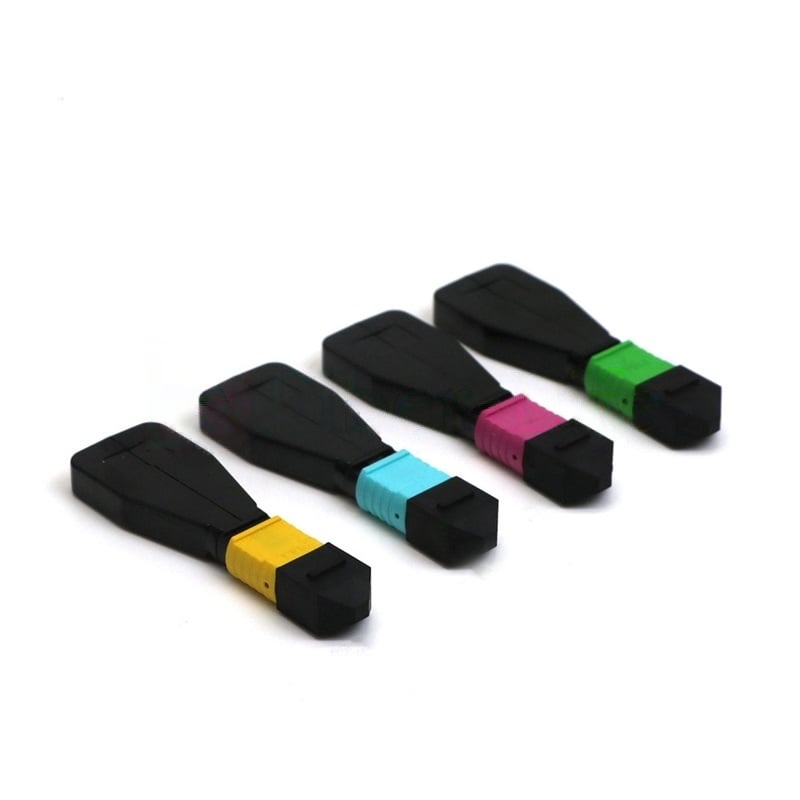

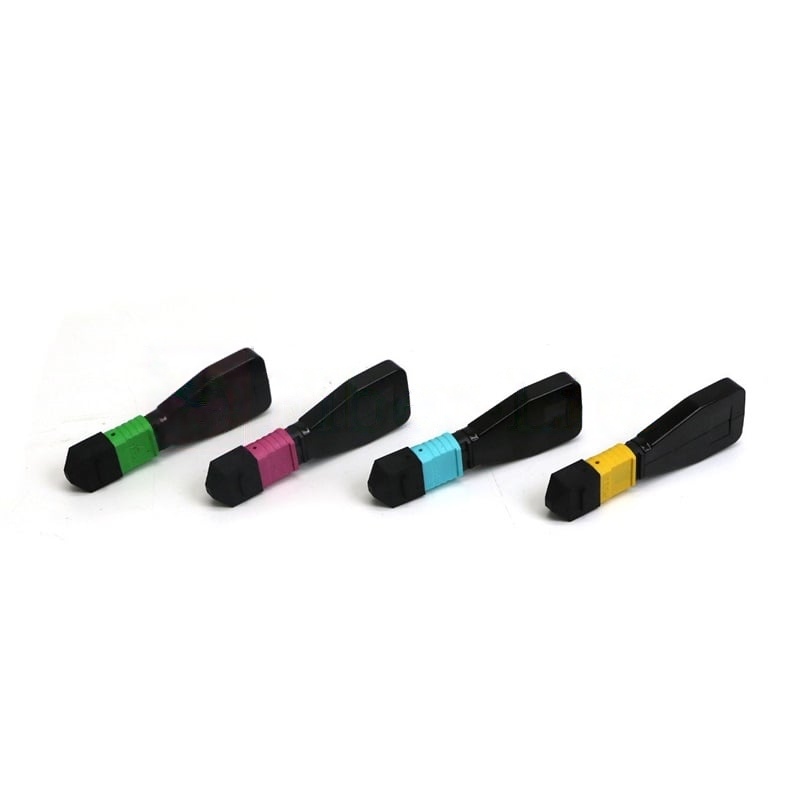

8/12/24 Fibers SM/MM MTP/MPO Fiber Loopback Module
SunmaFiber offers a wide range of Fiber Loopback Modules in different types and specifications, including singlemode (SM) and multimode (MM) options, as well as 8, 12, and 24 fibers configurations to meet various network testing needs. These loopback modules are ideal for verifying MTP/MPO transceiver performance, troubleshooting network issues, and conducting system diagnostics. Built with precision-polished connectors and robust housing, they ensure stable signal reflection and long-term durability, making them an essential tool for data centers and high-speed fiber networks.
$29.10
8/12/24 Fibers SM/MM MTP/MPO Fiber Loopback Module
8/12/24 Fibers SM/MM MTP/MPO Fiber Loopback Module is a compact, high-density optical testing solution designed for multi-fiber systems. SunmaFiber offers a wide range of Fiber Loopback Modules in different types and specifications, including singlemode (SM) and multimode (MM) options, as well as 8, 12, and 24 fibers configurations to meet various network testing needs. These loopback modules are ideal for verifying MTP/MPO transceiver performance, troubleshooting network issues, and conducting system diagnostics. Built with precision-polished connectors and robust housing, they ensure stable signal reflection and long-term durability, making them an essential tool for data centers and high-speed fiber networks.
Specifications
| Fiber Type | SMF/MMF | Fiber Connector | MPO/MTP |
| Insertion Loss | MPO MM≤1.0dB, SM≤1.0dB
MTP MM≤1.2dB, SM≤1.5dB |
Return Loss | SM≥50dB, MM≥25dB |
| Jacket Type | PVC | Durability | Over 500 Cycles (≤0.2dB Change) |
| Operating Temperature | -20°C ~ 70°C | Storage Temperature | -45°C ~ 85°C |
Features

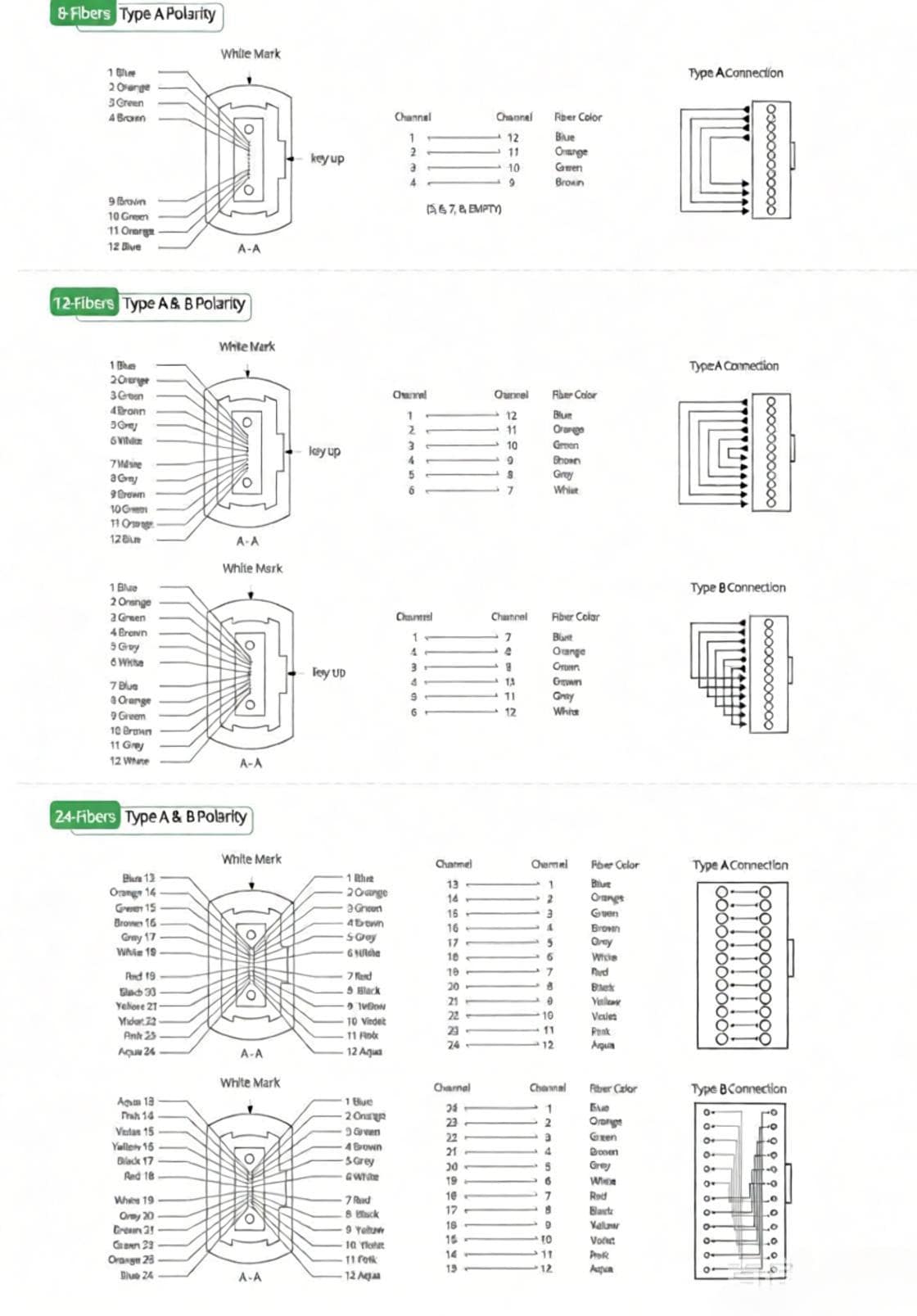

Polarity (Channel Alignment)
