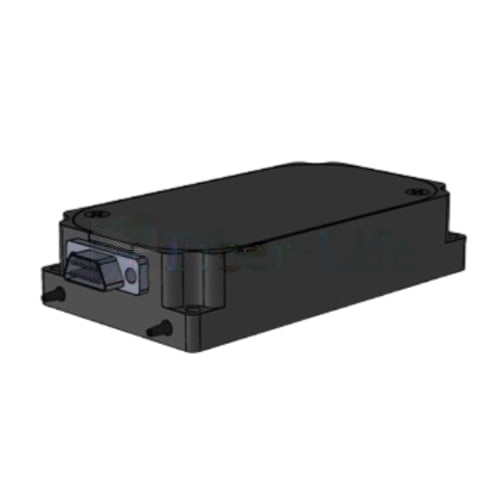

C-Band High Power Amplifier EDFA Mini Module, 27dBm Output
C-Band High Power Amplifier EDFA Mini Module, 27dBm Output is a compact and reliable optical amplifier designed for high-performance DWDM, CATV, and long-haul fiber optic transmission systems. Featuring 27dBm high output power, this mini EDFA module delivers excellent optical gain, low noise figure, and superior stability to ensure optimal signal quality over extended distances. Its C-band operation supports wavelengths from 1540nm to 1565nm, making it compatible with a wide range of optical communication networks. The rugged mini module form factor allows for easy integration into system designs where space is limited, without compromising performance. Ideal for backbone network amplification, optical distribution, and demanding high-power applications.
$3,857.00
C-Band High Power Amplifier EDFA Mini Module, 27dBm Output
C-Band High Power Amplifier EDFA Mini Module, 27dBm Output is a compact and reliable optical amplifier designed for high-performance DWDM, CATV, and long-haul fiber optic transmission systems. Featuring 27dBm high output power, this mini EDFA module delivers excellent optical gain, low noise figure, and superior stability to ensure optimal signal quality over extended distances. Its C-band operation supports wavelengths from
Specifications
| Parameter | Min | Typ | Max | Unit | |
| Wavelength Range | 1540 | 1550 | 1565 | nm | |
| Output Power | 17 | – | 27 | dBm | |
| Input Power | -20 | -10 | 0 | dBm | |
| Noise Figure | – | 6.0 | 6.5 | dB | |
| Output Power Stability | – | ±0.05 | ±0.1 | dB | |
| Return Loss | 45 | – | – | dB | |
| Polarization Dependent Gain | – | – | 0.3 | dB | |
| Polarization Mode Dispersion | – | – | 0.5 | ps | |
| Operating Temperature | -5 | – | +45 | °C | |
| Operating Humidity | 10 | – | 85 | % | |
| Storage Temperature | -40 | – | +85 | °C | |
| Storage Humidity | 5 | – | 95 | % | |
| Voltage | – | – | 5 | V | |
| Power Consumption | – | – | 15 | W | |
| Dimension (W × L × H) | 50 × 90 × 19.5 | mm | |||
| Pigtail Length | 1 or Specify | m | |||
| Pigtail Diameter | 900 | μm | |||
| Connector | LC/SC/FC/ST/APC/UPC | ||||
