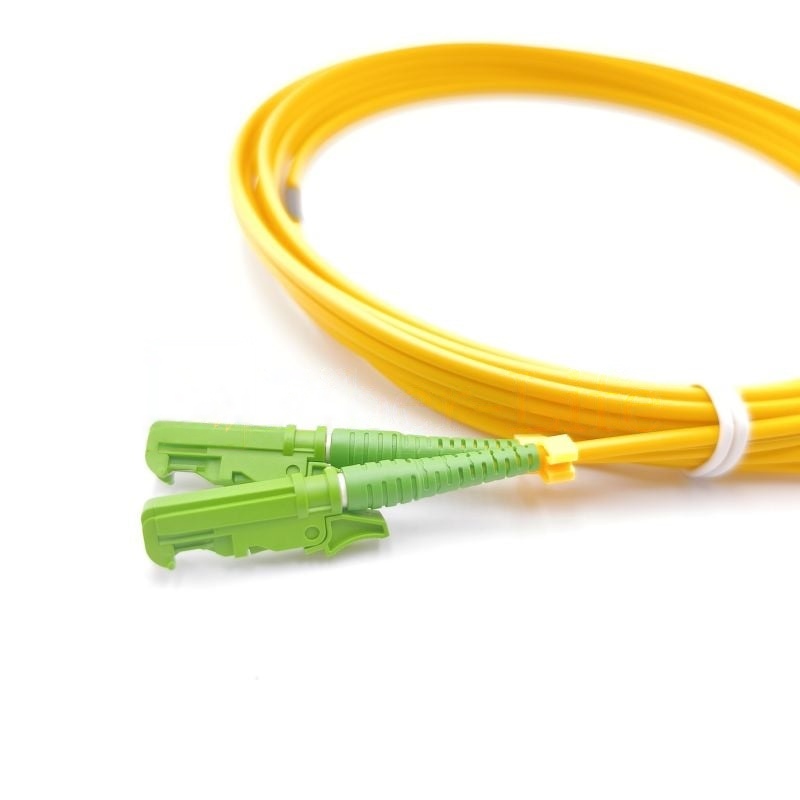

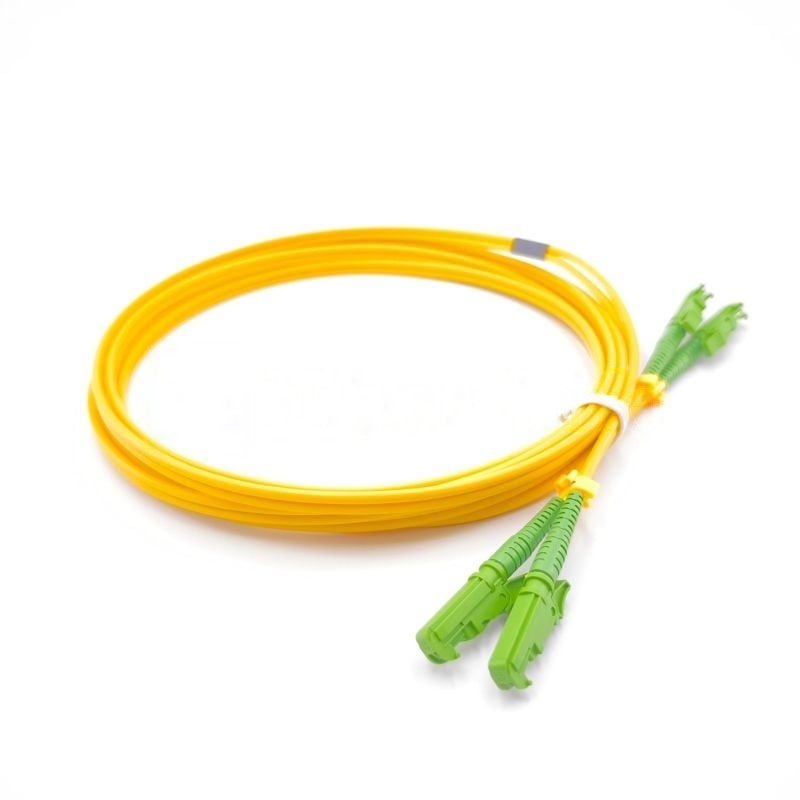

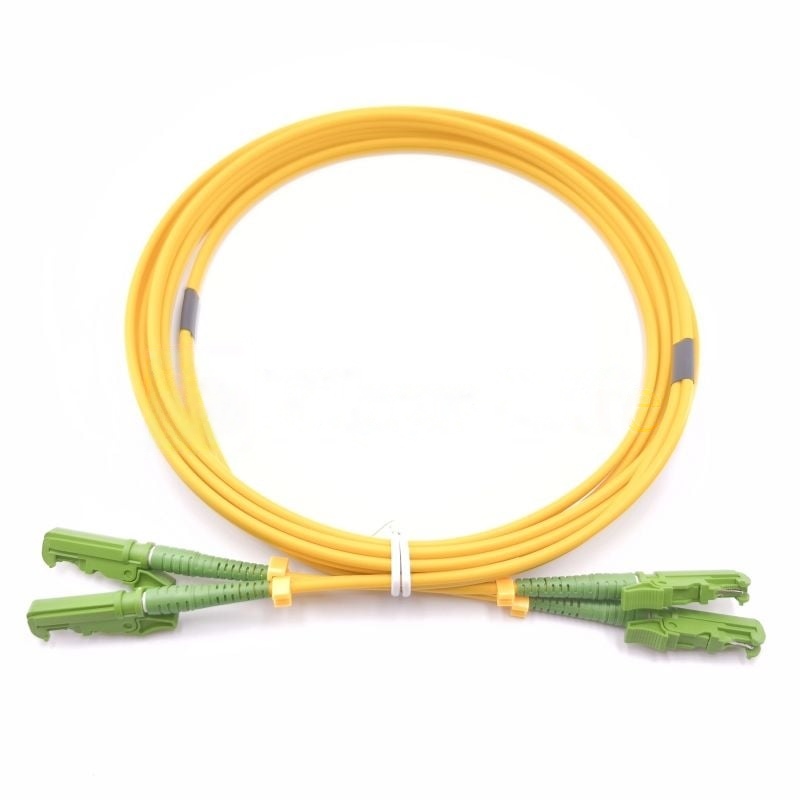

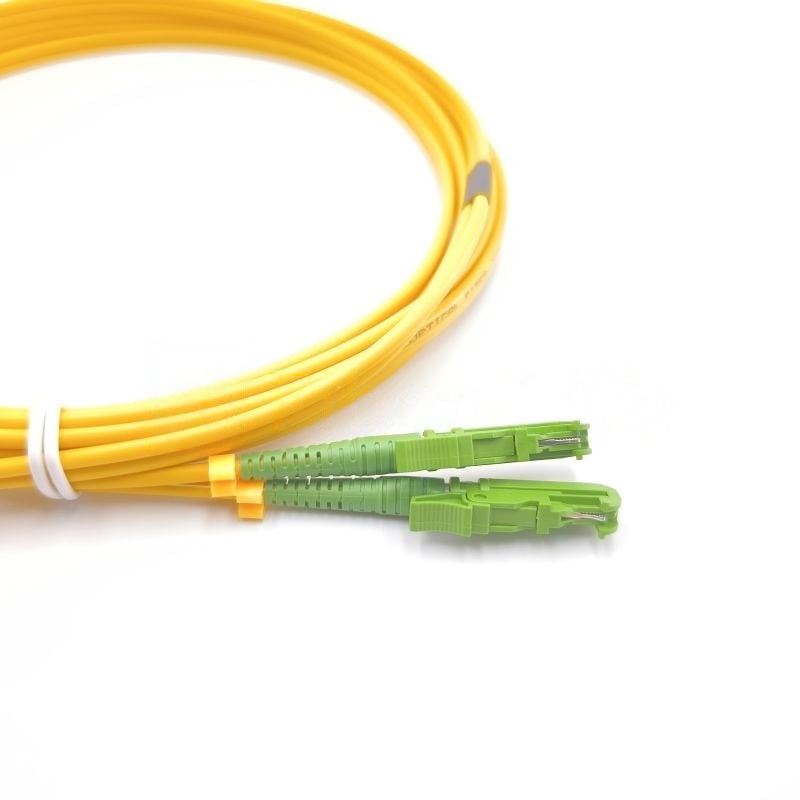

E2000/APC To E2000/APC Duplex OS2 Singlemode Fiber Patch Cable
E2000/APC to E2000/APC Duplex OS2 Singlemode Fiber Patch Cable – Low-loss, high-speed fiber optic cable with dust-proof shutters. Ideal for telecom, FTTH, and data center networks. Order now!
$21.12
E2000/APC to E2000/APC Duplex OS2 Singlemode Fiber Patch Cable – High-Performance, Low-Loss Fiber for Long-Distance Optical Networks
The E2000/APC to E2000/APC Duplex OS2 Singlemode Fiber Patch Cable is designed for high-speed, long-distance data transmission with minimal signal loss. Featuring E2000/APC connectors with automatic shutter protection, this duplex fiber cable ensures superior performance in telecom, data centers, and FTTH networks.
Specifications
| Connector A | E2000 APC | Connector B | E2000 APC |
| Fiber Count | 2 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 Singlemode 9/125μm | Wavelength | 1310/1550nm |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength (Long/Short Term) | 90/150N |
| Insertion Loss | ≤0.3dB | Return Loss | ≥75dB |
| Operating Temperature | -20°C ~ ＋70°C | Storage Temperature | -40°C ~ ＋80°C |
Key Features:
✅ OS2 9/125μm Singlemode Fiber – Supports 10G, 40G, 100G, and beyond, ideal for long-distance transmissions up to 40km+.

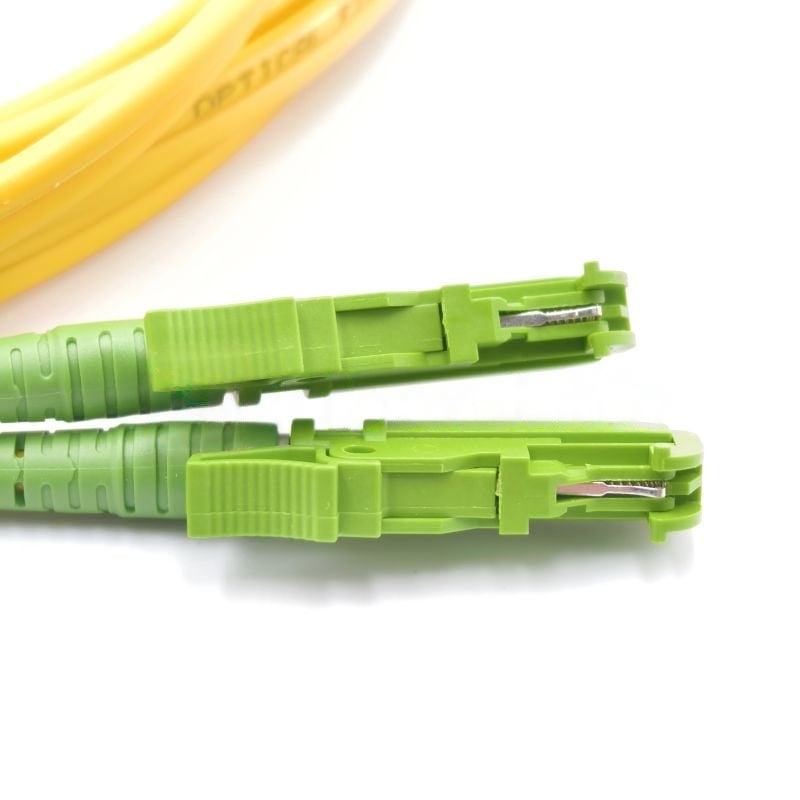

✅ E2000/APC Connectors with Shutters – Angled Physical Contact (APC) design for ultra-low insertion loss, protecting fiber integrity.
✅ Duplex Structure for Bi-Directional Transmission – Enhances network efficiency for high-speed optical communication applications.
✅ Durable & Flexible – Available in 2.0mm and 3.0mm jackets with PVC, LSZH materials for various installation needs.
✅ Ideal for High-Speed Networks – Perfect for FTTH, CATV, DWDM, SDH, and backbone fiber networks, ensuring reliable and stable connectivity.
Upgrade your fiber optic infrastructure with SunmaFiber’s premium E2000/APC OS2 duplex patch cable, offering exceptional signal quality and secure optical connections for demanding environments.
