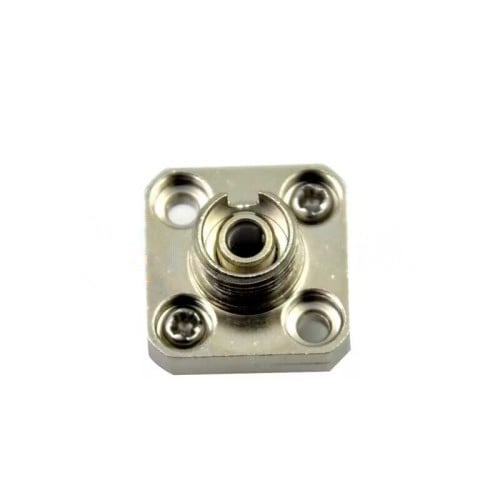

FC/UPC To FC/UPC Simplex Singlemode/Multimode Square Solid Type Two Pieces Metal Fiber Optic Adapter With Flange
The FC/UPC to FC/UPC Simplex Singlemode/Multimode Square Solid Type Two Pieces Metal Fiber Optic Adapter with Flange is designed to provide precise, stable, and low-loss interconnection between two FC/UPC connectors. Constructed with a two-piece solid metal housing, this adapter offers enhanced structural rigidity, excellent durability, and easy assembly or maintenance.
$1.50
FC/UPC To FC/UPC Simplex Singlemode/Multimode Square Solid Type Two Pieces Metal Fiber Optic Adapter With Flange
The FC/UPC to FC/UPC Simplex Singlemode/Multimode Square Solid Type Two Pieces Metal Fiber Optic Adapter with Flange is designed to provide precise, stable, and low-loss interconnection between two FC/UPC connectors. Constructed with a two-piece solid metal housing, this adapter offers enhanced structural rigidity, excellent durability, and easy assembly or maintenance.
Featuring a zirconia ceramic alignment sleeve, it ensures accurate fiber core alignment, low insertion loss, and high repeatability for both singlemode and multimode fibers. The flanged square design enables secure mounting on panels or fiber distribution frames (FDFs), providing firm mechanical stability even in high-density environments.
With its nickel-plated metal body, the adapter delivers superior resistance to wear, corrosion, and vibration, making it ideal for telecommunication networks, fiber optic measurement instruments, and laboratory applications where reliable optical connectivity is essential.
Specifications
| Connector A | FC/UPC | Connector B | FC/UPC |
| Body Style | Simplex | Fiber Mode | Singlemode/Multimode |
| Insertion Loss | ≤0.2dB | Durability | 1000 Times |
| Flammability Rate | UL 94V-0 | Working Temperature | -25 ~ +70°C |
Related Products
The FC/APC to FC/APC Simplex Singlemode Square Solid Type One Piece Metal Fiber Optic Adapter with Flange is engineered for precise, low-loss optical connection between two FC/APC connectors. Featuring a one-piece square solid metal housing, this adapter provides excellent mechanical stability, long-term durability, and consistent optical performance in demanding environments.
The FC/APC to FC/APC Simplex Singlemode Small D Metal Fiber Optic Adapter Without Flange is a precision coupler designed for stable, low-loss, and high-reliability connections between two FC/APC connectors in singlemode fiber optic systems. Featuring an Angled Physical Contact (APC) interface, it effectively minimizes back reflection and ensures excellent optical performance in demanding environments such as telecommunications, CATV systems, and optical measurement setups.
The FC/UPC Female to FC/APC Male Simplex Fiber Optic Adapter for seamless connectivity between FC/UPC and FC/APC devices. Ideal for single-mode applications, this high-performance adapter ensures low back reflection with APC polishing, making it perfect for both commercial and industrial fiber optic setups.
The FC/APC to FC/APC Simplex Singlemode Square Solid Type Two Pieces Metal Fiber Optic Adapter with Flange is designed for precise and reliable connection between two FC/APC connectors. Constructed with a high-strength nickel-plated metal housing and a zirconia ceramic alignment sleeve, it ensures exceptional durability, low insertion loss, and excellent repeatability.
The LC/UPC Female to FC/UPC Male Hybrid Simplex Singlemode Fiber Optic Adapter/Coupler is designed to connect two different types of fiber connectors (LC and FC). One end of the adapter is LC/UPC Female, and the other end is FC/UPC Male, allowing the connection between devices with different fiber connectors. The term Hybrid indicates that it supports these two different connector types, while Simplex means it only supports unidirectional transmission. This adapter is specifically designed for singlemode fiber systems. It is commonly used in fiber optic communication systems, data centers, and applications that require the connection of LC and FC connector devices. It ensures low insertion loss and high performance for optical signal transmission, making it widely used in network device connections, fiber optic testing, and maintenance.
