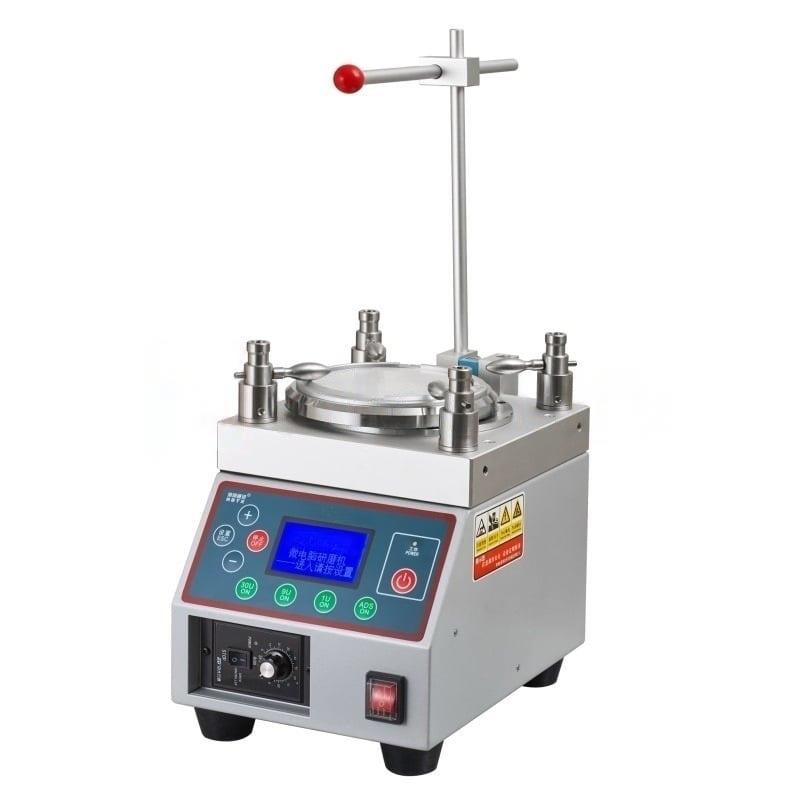

Four-Corner Pressurized Optical Fiber Polishing Machine

A Four-Corner Pressurized Optical Fiber Polishing Machine is a specialized device used in the fiber optic industry to achieve high-precision polishing of optical fibers and connectors. By applying uniform pressure from four corners, it ensures consistent and smooth fiber surfaces, which are critical for minimizing signal loss and enhancing the performance of fiber optic systems. This machine is essential in telecommunications, data centers, and fiber optic manufacturing, where high-quality signal transmission is crucial.

Specifications

Quality Certifications

Features:

1. Four polishing programs are stored at one machine (9um, 1um, 3um, ADS) and any one of the program can be started. Working efficiency is enhanced.
2. Polishing program is showed on the LED screen, including the polishing time, polishing speed, polishing rounds, and make the production quality more controllable.
3. Polishing fixture adopt four coil pressure type. The pressure is controlled by the four coils. It makes the product precision better and more consistent in quality.
4. It can produce the geometric surface meet the IEC standard requirements.
5. The polishing trails obey the planet orbit. Polishing rotation speed is adjustable from 0~120RPM.
6. Use new I.P.C polishing fixture (every ceramic ferrule can be loaded independently) technology ensure the high qualified rate of production. The polishing results are the same no matter polish one or 40pcs polishing connectors.
7. Maximum polishing capacity reaches 40pcs for MU and LC connectors. And for SC, FC, ST. it reaches 32pcs.
8. The high quality stainless steel material after heat-treatment ensures the high precision & durability of the machine.
