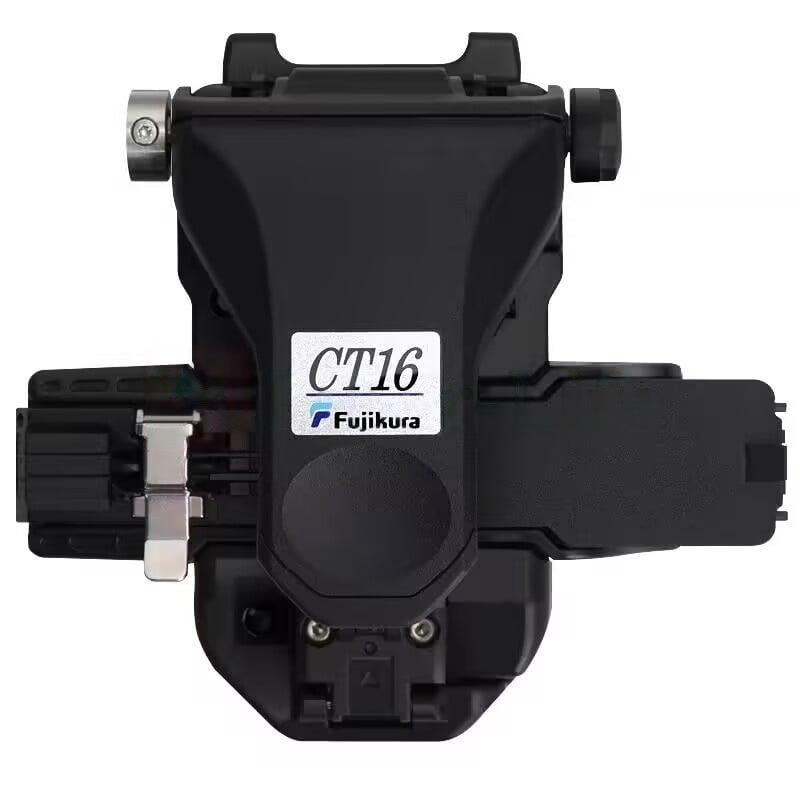

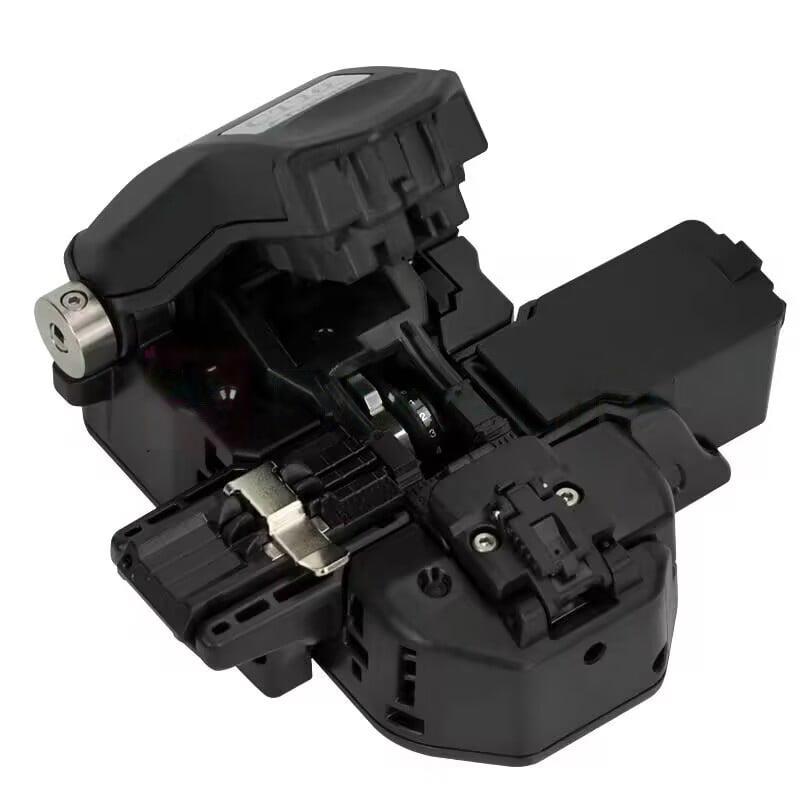

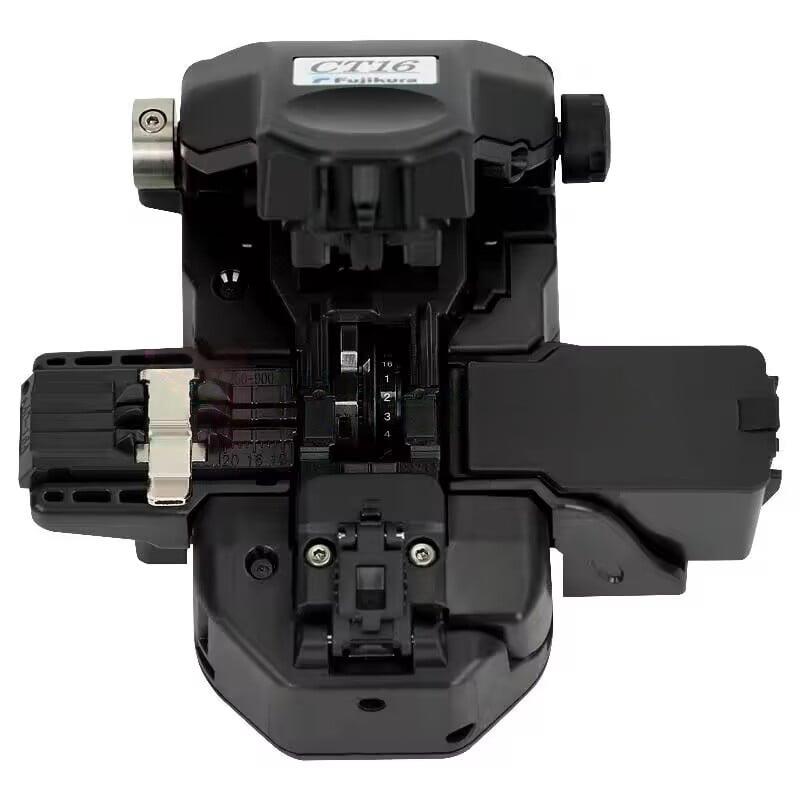

Fujikura CT-16 Fiber Cleaver
Discover the Fujikura CT-16 Fiber Cleaver, a high-precision tool designed for clean and consistent fiber optic cleaving. Ideal for single-mode and multimode fibers, this cleaver ensures long-lasting performance with up to 48,000 fiber cleaves. Perfect for fiber optic installation, maintenance, and repair.
$587.00
Fujikura CT-16 Fiber Cleaver – Precision Fiber Optic Cleaving Tool
The Fujikura CT-16 Fiber Cleaver is a high-performance tool designed for fiber optic cable preparation and network applications. Known for its exceptional precision and reliability, the CT-16 delivers top-quality fiber cleaving, ensuring every cut results in a perfect fiber end-face, minimizing loss and error. This makes it a critical tool for ensuring efficient and stable fiber optic connections.
Specifications:
| Parameter | Value |
|---|---|
| Applicable Fiber | Single-mode optical fiber, Multimode optical fiber |
| Fiber Count | 2 single fibers |
| Cladding Diameter | Approx. 125 µm |
| Applicable Coating | AD-16A: Max 900 µm coating diameter single fiber or 250 µm coating diameter for two fibers AD-16B: Max. 3 mm jacket diameter FH-60 and FH-70 series – coating diameter dictated by specific fiber holder |
| Cleave Length | AD-16A: 5–20 mm AD-16B: Coating diameter – 250 µm or less: 5–20 mm 251 µm–900 µm: 10–20 mm 901 µm–3 mm: 14–20 mm Fiber holder: Approx. 10 mm |
| Cleave Angle | Avg. 0.3 to 0.9 degrees (single fiber) |
| Blade Life | Approx. 48,000 fiber cleaves |
| Physical Description | Dimensions W: Approx. 106 mm without projection Dimensions D: Approx. 95.5 mm without projection Dimensions H: Approx. 49 mm without projection Weight: Approx. 190 g including AD-16A |
| Environmental Condition | Temperature: Operate: -10 to 50°C, Storage: -40 to 80°C Humidity: Operate: 0 to 95% RH non-condensing, Storage: 0 to 95% RH non-condensing |

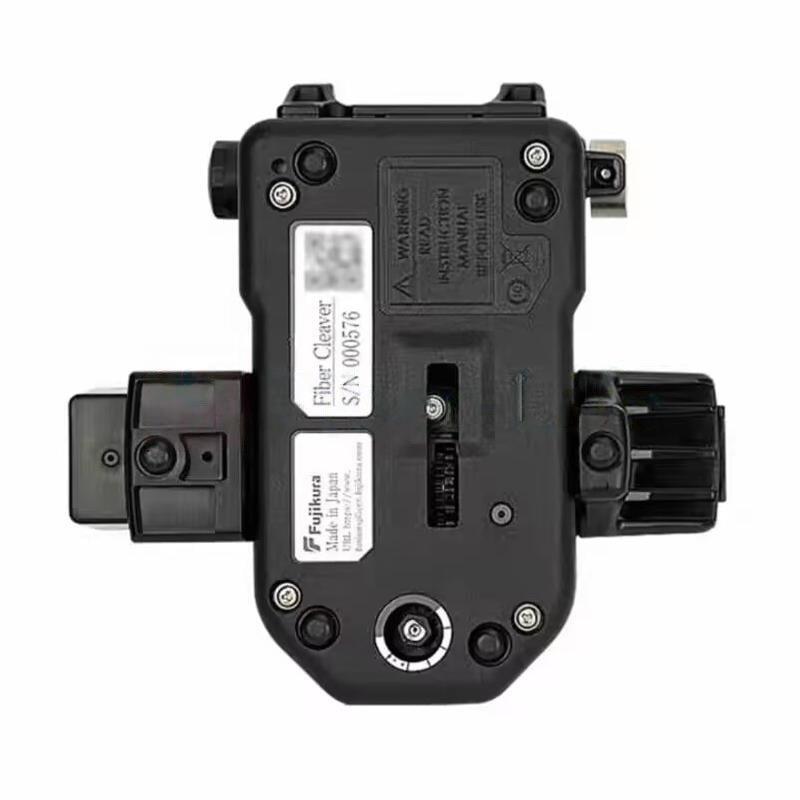

| Blade Rotation | Manual dial underneath cleaver |
| Replaceable Items | Cleaver blade, Fiber clamp pads |

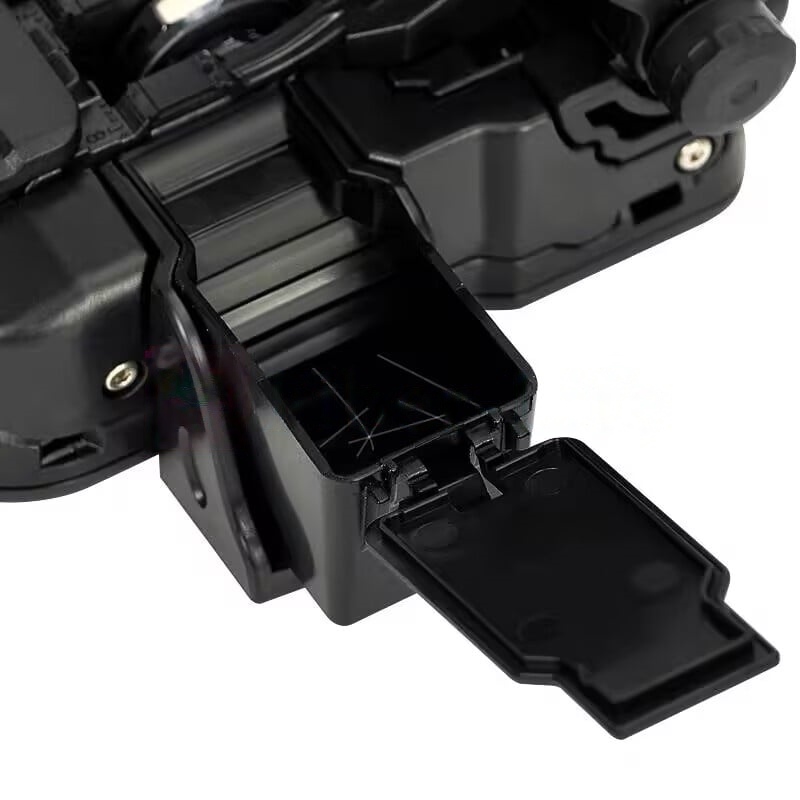

| Other Features | Fiber adapter base and scrap collector Can be swapped position for ambidextrous operation Cleave count: Up to two individual bare fibers |
Notes:
- When the cleave length is less than 10 mm, the coating diameter should be 250 µm or less. Also, a blade height adjustment is required before cleaving.
- Measured with an interferometer at room temperature, no with a splicer. A new blade was used to cleave the single fibers. The average cleave angle changes depending on the environmental conditions, blade condition, operating method, and cleanliness.
- The blade life changes depending on the environmental conditions, operating method, and the fiber type cleaved.
- Measured with the top lever closed.
Product Features:
- High Precision Cleaving: Advanced blade and stable cleaving mechanism ensure uniform, precise fiber cleaving every time, suitable for both single-mode and multimode fibers.
- Durable Performance: Constructed with premium materials, the CT-16 maintains excellent cleaving performance even after extended use, ensuring long-lasting reliability.
- Easy to Use: Ergonomically designed for ease of operation, the tool simplifies the cleaving process, reducing complexity during fiber preparation.
- Compact and Portable: Small, lightweight design makes the CT-16 perfect for fieldwork, offering convenience for mobile technicians and easy storage.
- Low Maintenance Cost: With durable blades and high-performance design, the CT-16 minimizes the need for frequent replacements, providing cost-effective maintenance over time.
Applications:
- Fiber Optic Cabling
- Fiber Access Networks
- Data Centers & Enterprise Networks
- Communication System Maintenance and Repair
