GPON CEx WDM
Explore SunmaFiber online store for GPON CEx WDM in various configurations, with worldwide distribution. Free shipping on orders over $200.
$525.00

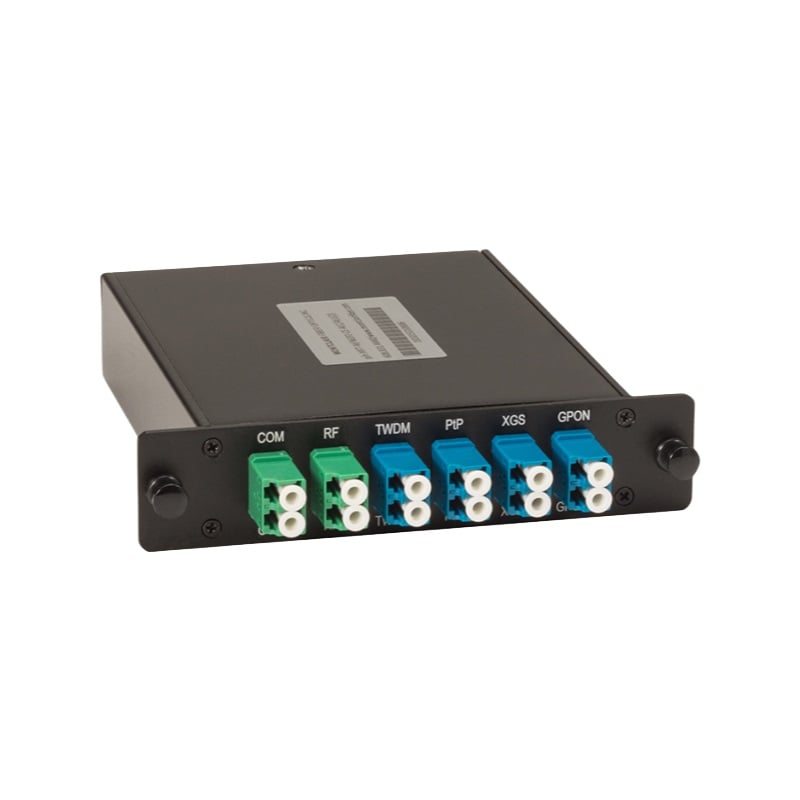

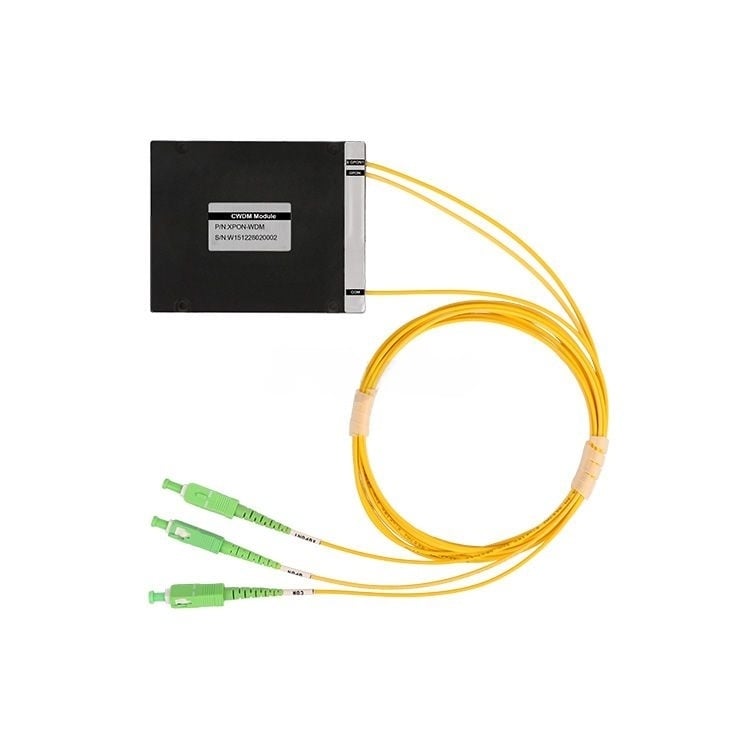

GPON CEx WDM
The GPON CEx WDM is a crucial optical device designed for Gigabit Passive Optical Networks (GPON), utilizing Coarse Wavelength Division Multiplexing (CWDM) to multiplex and demultiplex multiple optical signals over a single fiber. It supports the simultaneous transmission of various services, such as internet data, voice, and video, by integrating upstream and downstream data with video signals in one fiber. Widely used in Fiber to the Home (FTTH) and integrated optical networks, GPON CEx-WDM enhances network efficiency and reduces deployment costs, making it an essential component in telecom operators’ networks for delivering comprehensive multimedia services.
Specifications
| Parameter | GPON/XGPON/NGPON2/OTDR | |
|---|---|---|
| Operating Wavelength (nm) | 1260~1650 | |
| Pass Band (nm) | GPON | 1290~1330 & 1480~1500 |
| XGPON | 1260~1280 & 1575~1580 | |
| NGPON2 | 1524~1544 & 1596~1603 | |
| OTDR | 1625~1650 | |
| Insertion Loss (dB) | COM–GPON | ≤0.8 |
| COM–XGPON | ≤1.2 | |
| COM–NGPON | ≤1.4 | |
| COM–OTDR | ≤1.2 | |
| Isolation (dB) | GPON@XGPON/NGPON2 | ≥30 |
| XGPON@GPON/NGPON2 | ≥30 | |
| NGPON2@GPON/XGPON | ≥30 | |
| OTDR | ≥15 | |
| Polarization Dependent Loss (dB) | ≤0.2 | |
| Directivity (dB) | ≥50 | |
| Return Loss (dB) | ≥45 | |
| Maximum Power Handling (mW) | 300 | |
| Operating Temperature (℃) | -10 ~ +70 | |
| Storage Temperature (℃) | -40 ~ +85 | |
| Package Dimension (mm) | L100xW80xH10 | |
Note:
1. All specifications include the effect of operating temperature and all states of polarization.
2. Values referenced without connectors and insertion loss for a connetor-pair is 0.20dB(typ.) and 0.30dB(max.).
| Features | Applications |
|---|---|
| Low insertion loss | Line monitoring |
| Wide pass band | WDM network |
| High channel isolation | GPON system |
| High stability and reliability | EPON system |
| Epoxy free on optical path | WDM PON networks |
