Handheld Optical Power Meter AUA-Y710A/Y510A Fiber Optic Attenuation Tester Optical Meter, -70~10dBm/-50~26dbm
Explore SunmaFiber online store for Handheld Optical Power Meter AUA-Y710A/Y510A Fiber Optic Attenuation Tester Optical Meter, -70 to 10dBm/-50~26dbm, Global sales, Free shipping on orders over $200.
$73.00

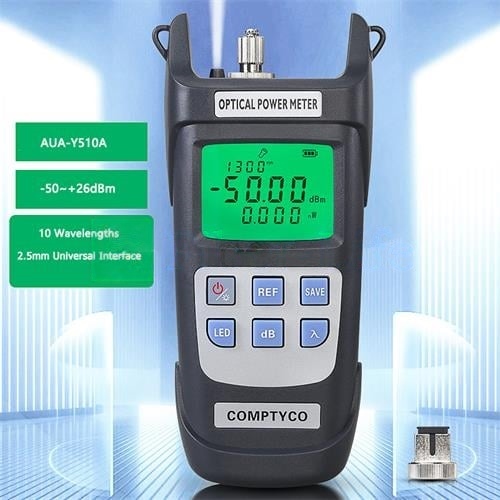

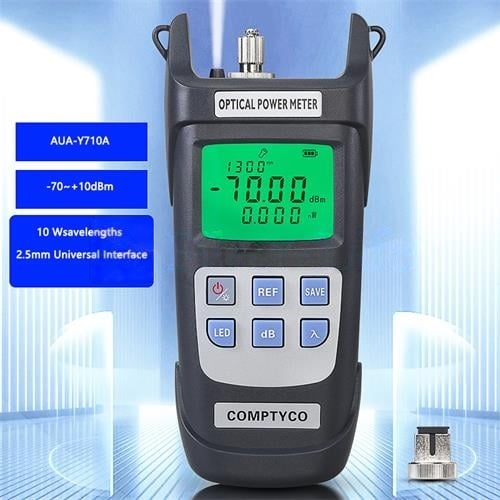

AUA-Y710A/Y510A Handheld Optical Power Meter
A Handheld Optical Power Meter is a portable device used to measure the power levels of optical signals in fiber optic communication systems. It is an essential tool for fiber optic technicians during the installation, testing, and maintenance of fiber networks. The device accurately measures optical signal power, typically in dBm or mW, and supports multiple wavelengths, making it suitable for various types of fibers and light sources. Its compact size and lightweight design allow for easy transport and field operation. With a simple user interface, high precision, and stability, the Handheld Optical Power Meter ensures the performance and reliability of fiber optic networks.
Specifications

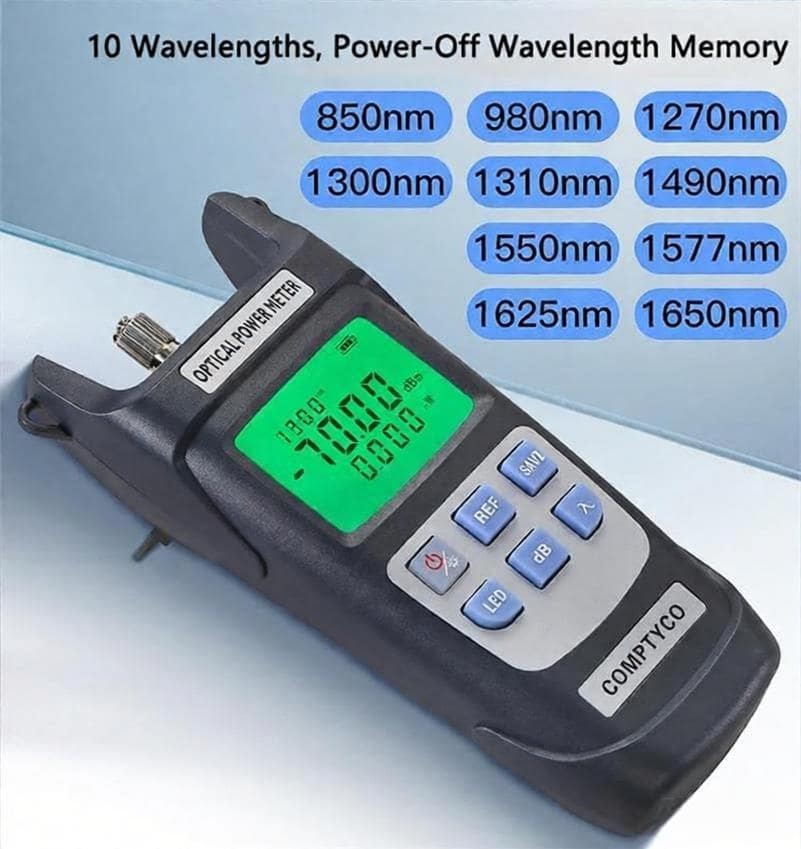

| Measurement Range | -70~10dBm/-50~26dbm | Calibrated Wavelengths | 850/980/1270/1300/1310/1490/1550/1577/1625/1650nm |
| Resolution | 0.01 dB | Accuracy | SM ±0.2 dB, MM ±0.6 dB |
| Linearity | ±2% | Detector Type | InGaAs |

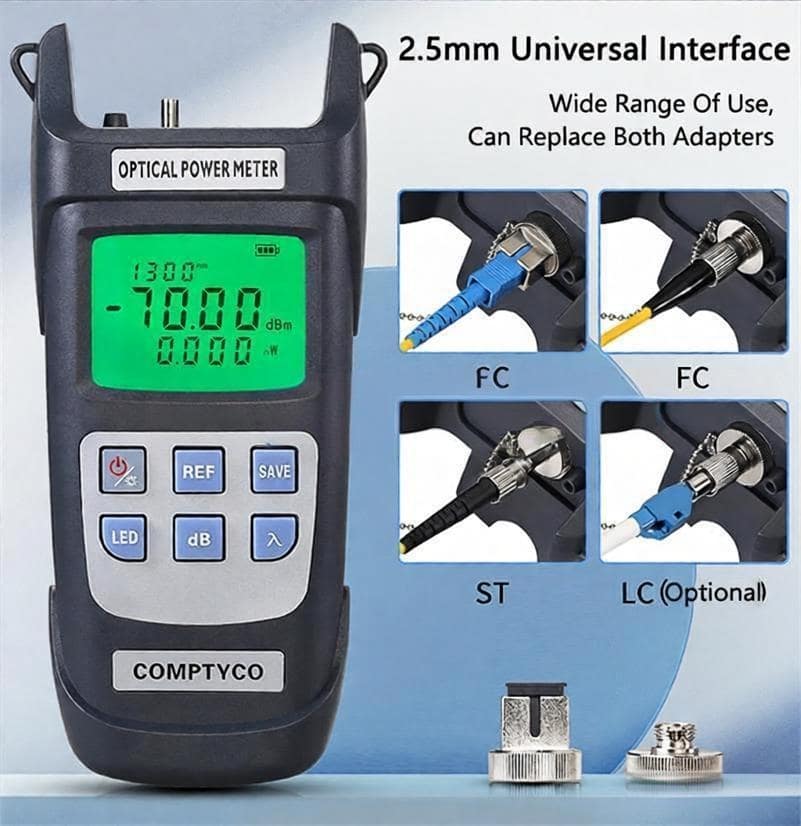

| Response Range | 700~1700nm | Optical Connector | 2.5mm FC/SC/ST |

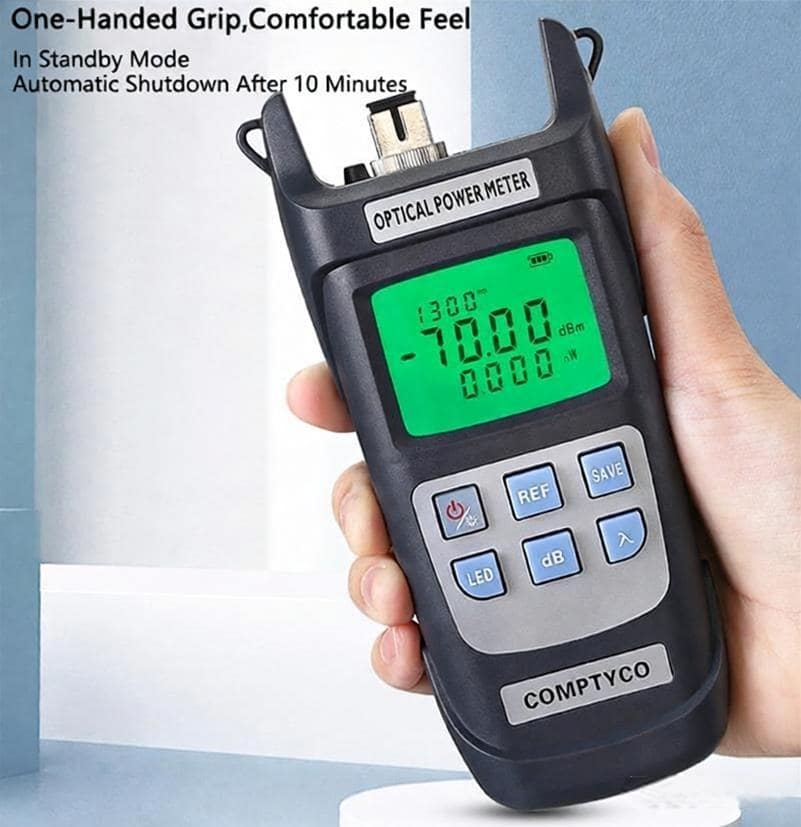

| Cable Type | SMF & MMF | Auto-off Function | Supported |

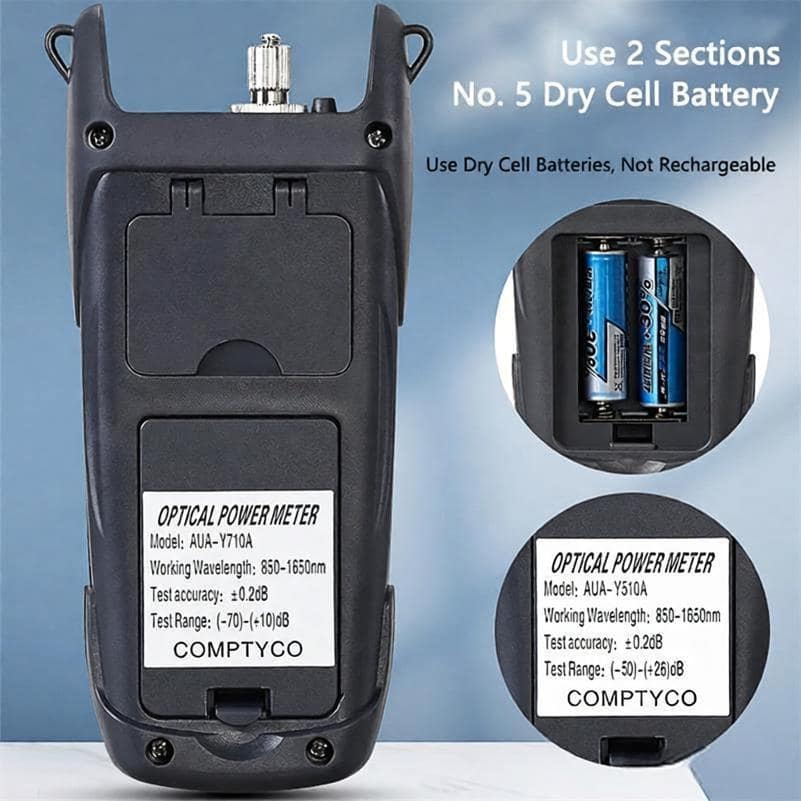

| Power Supply | 2x AA Batteries | Relative Humidity | <90% (non-condensing) |
| Operating Temperature | -10 To 50°C (14 To 122°F) | Storage Temperature | -20 To 60°C (-4 To 140°F) |
