Customized High Power PM Fiber Amplifier Polarization Maintaining EDFA Fiber Amplifier, 33dBm Output
Explore SunmaFiber online store for Customized High Power PM Fiber Amplifier Polarization Maintaining EDFA Fiber Amplifier, 33dBm Output, Global sales, Free shipping on orders over $200.
$7,685.00

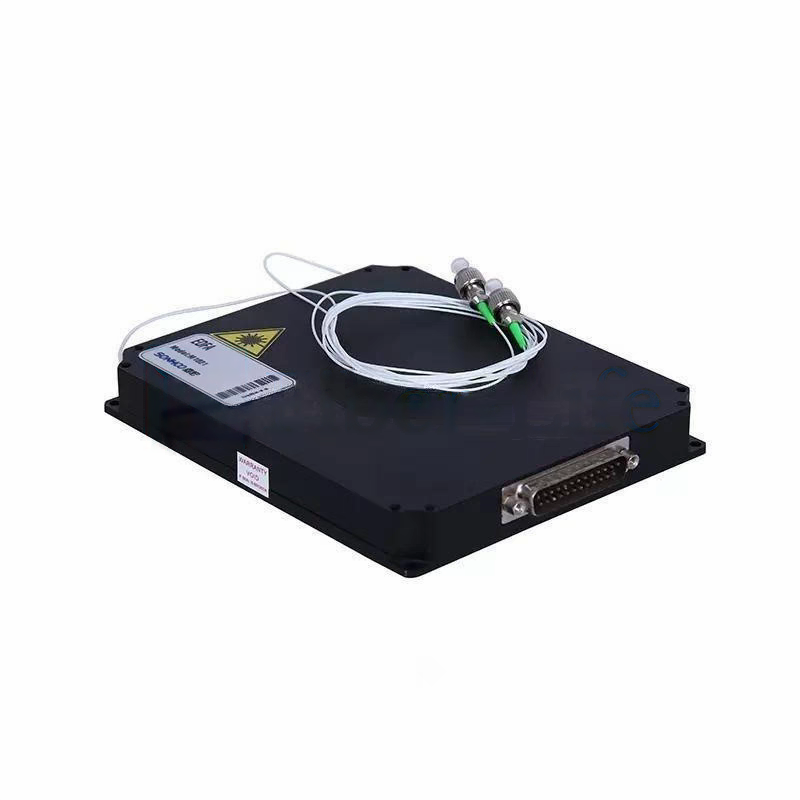

High Power PM Fiber Amplifier Mini Module Polarization Maintaining EDFA Fiber Amplifier, 33dBm Output
High Power PM Fiber Amplifier Polarization Maintaining EDFA Fiber Amplifier is developed by SunmaFiber for laboratory and factory testing. The core components use highly stable Pump lasers and excellent optical path design to ensure high-performance spectral characteristics. Unique ATC and APC circuits ensure the stability of output power. The superior performance of dual microprocessors makes operation and remote control easier and more intelligent. The open RS232 port ensures connectivity with any network management system. It uses single-mode erbium-doped or ytterbium-doped fiber amplification technology, with a maximum saturated output power of 2W (33dBm).
Specifications
| Parameter | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Wavelength | λc | 1540 | 1550 | 1565 | nm |
| Output power | Po | —– | —– | 33 | dBm |
| Input Power | Pi | -3 | —– | 10 | dBm |
| Gain | G | —– | 20 | 30 | dB |
| Noise Figure | NF | —– | —— | 5.5 | dB |
| Output Power Stability | ΔTl | —– | ±0.05 | ±0.1 | dB |
| Polarization Extinction Ratio | PER | —– | —– | —– | dB |
| Return Loss | RL | 45 | —– | —– | dB |
| Input/Output Isolation | ISO | 30 | —– | —– | dB |
| Input PUMP Leakage | PLKin | -30 | —– | —– | dB |
| Output PUMP Leakage | PLKout | -40 | —– | —– | dB |
| Operating Voltage | V | 174 | —– | 260 | VAC |
| Power Loss | Pc | —– | —– | 15 | W |
| Operating Temperature | Tw | 0 | —– | 40 | °C |
| Storage Temperature | Ts | -40 | —– | 80 | °C |
| Output Fiber | PM polarization-maintaining output | ||||
Quality Certifications
.svg)

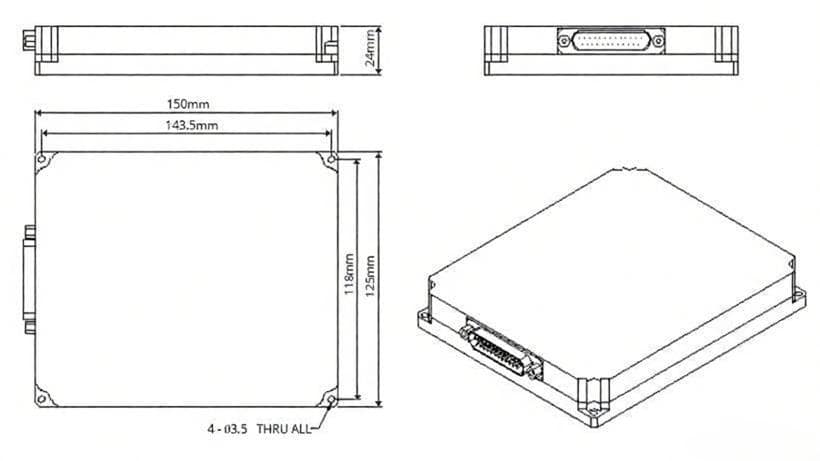

Mechanical Dimensions(mm)
