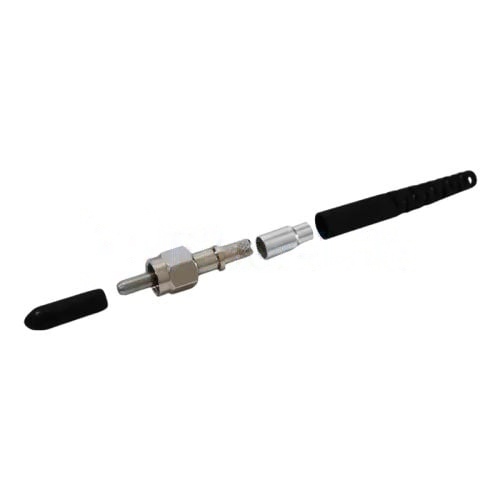

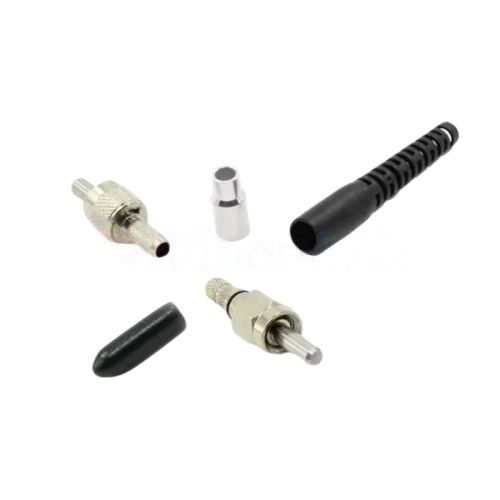

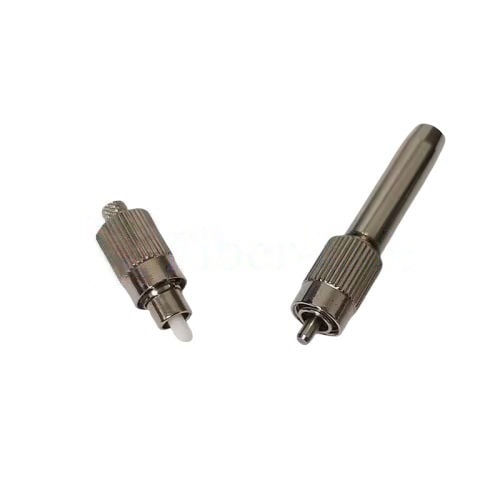

High Power SMA905 Fiber Optic Connector
High Power SMA905 Fiber Optic Connector: Durable, precise, low insertion loss, ideal for lasers, medical devices. 125~1100μm Bore Diameter Optional.
$7.81
High Power SMA905 Fiber Optic Connector
The High Power SMA905 Fiber Optic Connector is designed for high-power optical applications, such as laser systems, medical devices, and scientific research. Known for its durability and precision, it efficiently handles high optical power levels, minimizing power loss and ensuring reliable signal transmission. Featuring a robust ferrule for precise fiber alignment, the SMA905 connector is compatible with both single-mode and multi-mode fibers, offering low insertion loss and excellent coupling efficiency. Ideal for use in industrial lasers, optical sensors, and fiber amplifiers, this connector is essential for systems requiring reliable, high-performance optical connections under demanding conditions.
Specifications
| Ferrule Material | Ferrule Outer Diameter(mm) | Ferrule Length(mm) | Ferrule Hole Diameter Tolerance(μm) | Coaxiality | Suitable For Optical Fiber Cladding |
|---|---|---|---|---|---|
| Stainless Steel Ferrule | 3.17±0.002 | 9.85±0.01 | 125+3 | ≤0.015 | ≤125μm |
| 220+5 | ≤0.020 | ≤220μm | |||
| 330+5 | ≤0.020 | ≤330μm | |||
| 440+5 | ≤0.020 | ≤440μm | |||
| 660+5 | ≤0.020 | ≤660μm | |||
| 880+5 | ≤0.020 | ≤880μm | |||
| 1050+10 | ≤0.025 | ≤1050μm | |||
| 1100+15 | ≤0.03 | ≤1100μm | |||
| Ceramic Ferrule | 3.17±0.002 | 9.85±0.01 | 125+2 | ≤0.010 | ≤125μm |
| 220+3 | ≤0.015 | ≤220μm | |||
| 330+3 | ≤0.015 | ≤330μm | |||
| 440+3 | ≤0.015 | ≤440μm | |||
| 660+3 | ≤0.015 | ≤660μm | |||
| 880+3 | ≤0.015 | ≤880μm | |||
| 1050+8 | ≤0.020 | ≤1050μm | |||
| 1100+13 | ≤0.025 | ≤1100μm |
