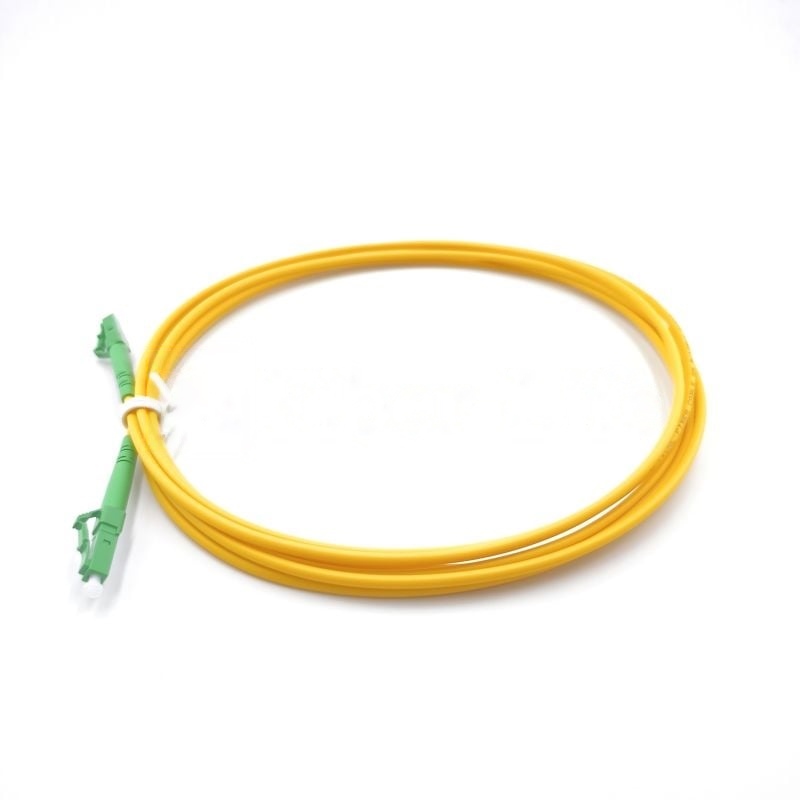

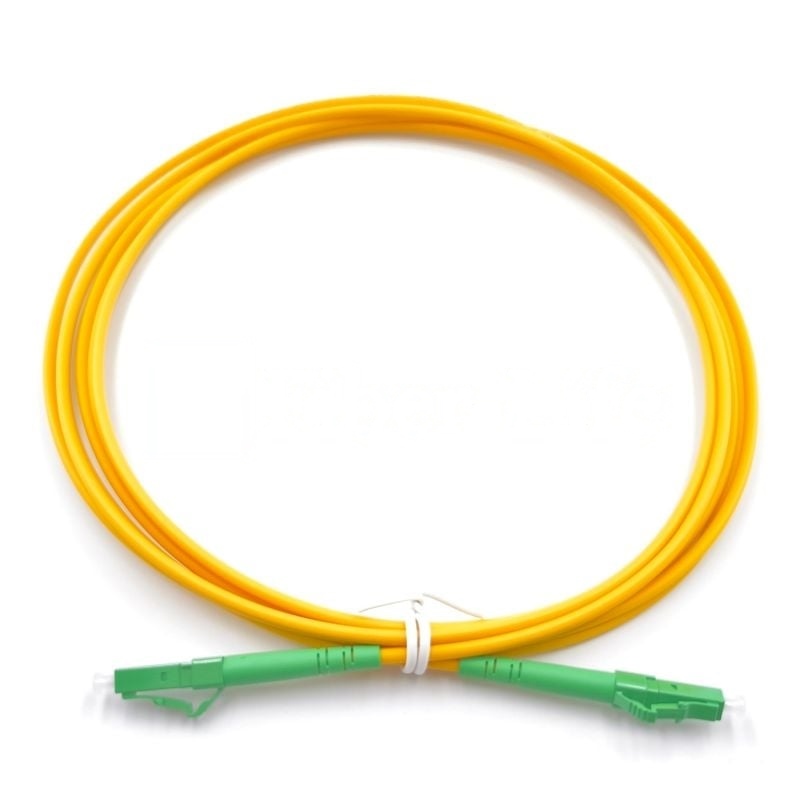

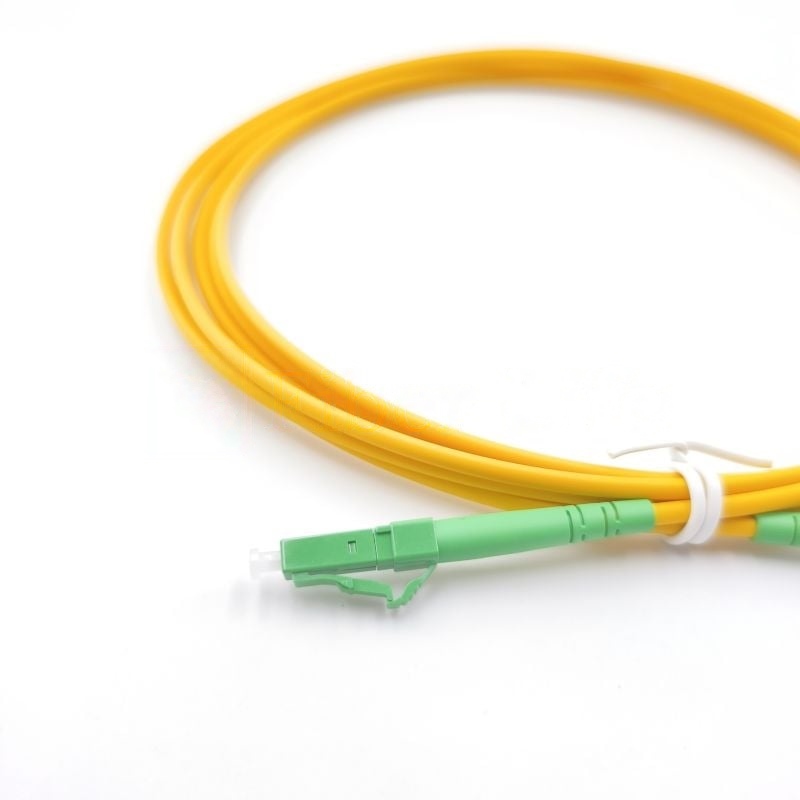

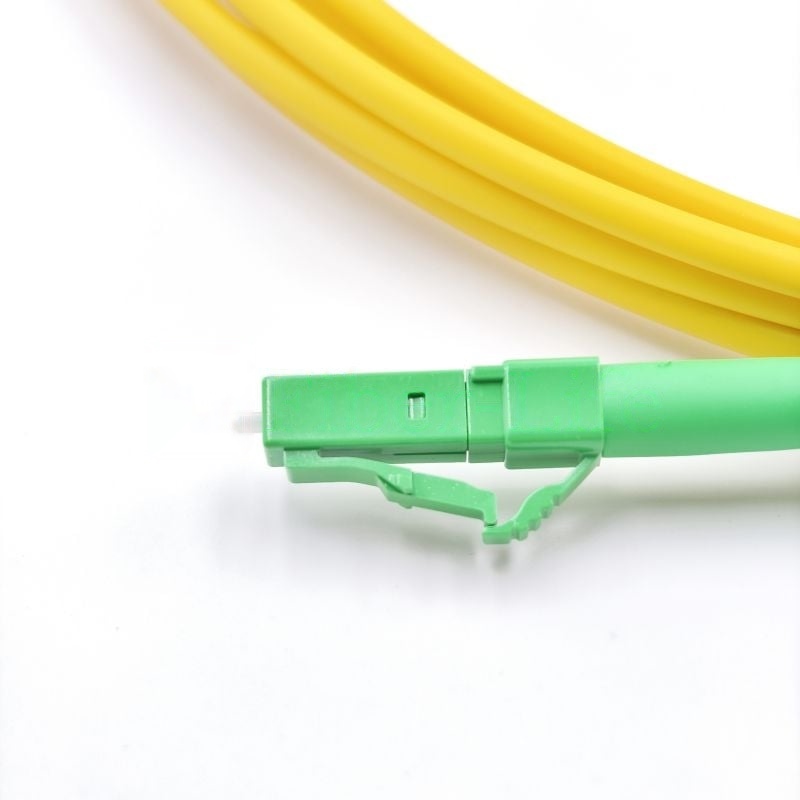

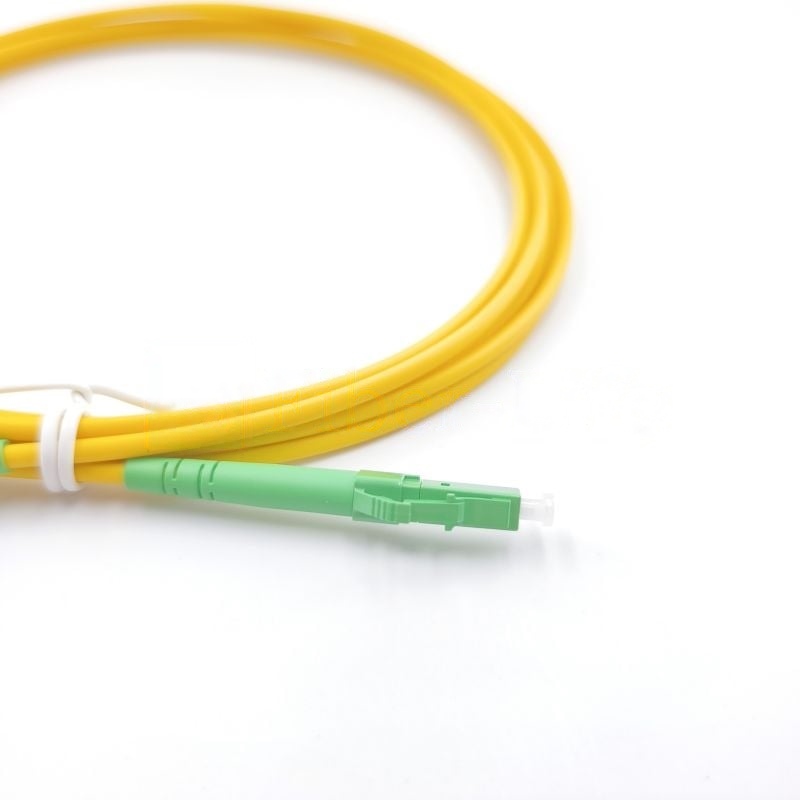

LC/APC To LC/APC Simplex OS2 Singlemode Fiber Patch Cable
Get SunmaFiber LC/APC to LC/APC Simplex OS2 Singlemode Fiber Patch Cable for ultra-low loss and high stability. Ideal for FTTH, data centers, and long-distance optical networks. Available in 2.0mm and 3.0mm. Shop now for reliable performance and fast shipping!
$2.34
LC/APC to LC/APC Simplex OS2 Singlemode Fiber Patch Cable | Low Loss & High Stability Fiber Optic Jumper
The SunmaFiber LC/APC to LC/APC Simplex OS2 Singlemode Fiber Patch Cable is designed for long-distance optical communication, data centers, and FTTH/FTTX applications. Made with 9/125μm OS2 G.657.A1 fiber, it complies with ITU-T G.652.D standards to ensure low insertion loss and high return loss. The LC/APC angled-polished connectors effectively minimize back reflection, providing stable signal transmission. Available in 2.0mm and 3.0mm diameters to suit different installation needs.
Specifications
| Connector A | LC APC | Connector B | LC APC |
| Fiber Count | 1 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 Singlemode 9/125μm | Wavelength | 1310/1550nm |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength (Long/Short Term) | 60/100N |
| Insertion Loss | ≤0.3dB | Return Loss | ≥60dB |
| Operating Temperature | -20°C ~ ＋70°C | Storage Temperature | -40°C ~ ＋80°C |
Key Features:
✅ Ultra-Low Loss & High Return Loss – LC/APC connectors ensure insertion loss of ≤0.3dB and return loss of ≥60dB, reducing optical signal reflection and enhancing transmission stability.
✅ Premium OS2 Fiber – Built with 9/125μm G.657.A1 fiber, fully compliant with G.652.D standards, supporting 10G/40G/100G optical networks for long-distance data transmission.
✅ High-Precision Connection – Ceramic ferrules ensure precise alignment, while the angled-polished LC/APC design reduces reflection and improves fiber network performance.
✅ Multiple Diameter Options – Available in 2.0mm and 3.0mm to accommodate various cabling environments and ease installation.
✅ Broad Compatibility – Ideal for data centers, FTTH/FTTX fiber optic access networks, telecom base stations, and fiber optic test equipment.
Applications:
🔹 Long-distance optical communication
🔹 Data centers & cloud computing networks
🔹 FTTH/FTTX fiber-to-the-home solutions
🔹 Telecom networks & base station applications
🔹 Optical fiber testing & measurement equipment
SunmaFiber LC/APC to LC/APC Simplex OS2 Fiber Patch Cable delivers superior low-loss fiber connectivity, ensuring efficient and stable data transmission!
