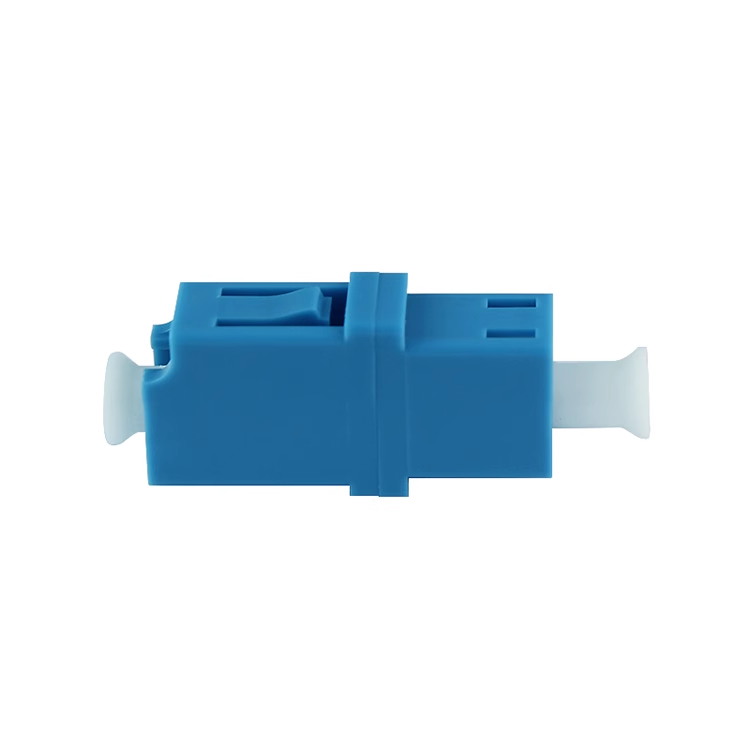

LC/UPC Female to LC/UPC Female Simplex Singlemode Plastic Fiber Optic Adapter/Coupler without Flange
The LC/UPC Female to LC/UPC Female Simplex SingleMode Fiber Optic Adapter is designed for high-precision LC connector mating, ensuring stable and low-loss fiber optic connections. Made of durable yet lightweight plastic, this adapter features a compact flangeless design, making it ideal for high-density fiber networks. Its high-precision ceramic sleeve ensures excellent alignment, reducing insertion loss and optimizing signal transmission. Compatible with 9/125μm single-mode fiber, it is widely used in data centers, telecommunications networks, FTTH, fiber distribution units, and optical patch panels.
$0.69
LC/UPC Female to LC/UPC Female Simplex SingleMode Plastic Fiber Optic Adapter/Coupler without Flange
The LC/UPC Female to LC/UPC Female Simplex SingleMode Fiber Optic Adapter is designed for high-precision LC connector mating, ensuring stable and low-loss fiber optic connections. Made of durable yet lightweight plastic, this adapter features a compact flangeless design, making it ideal for high-density fiber networks. Its high-precision ceramic sleeve ensures excellent alignment, reducing insertion loss and optimizing signal transmission. Compatible with 9/125μm single-mode fiber, it is widely used in data centers, telecommunications networks, FTTH, fiber distribution units, and optical patch panels.
Specifications
| Connector Type | LC-LC | Body Style | Simplex |
| Polish Type | UPC | Fiber Mode | Singlemode |
| Insertion Loss | ≤0.2dB | Durability | 1000 Times |
| Color | Blue | Alignment Sleeve Material | Ceramic |
Features
Extending Fiber Connection with Adapters
With high-precision components and tool-less design, the adapters allow two devices to communicate from a distance through a direct connection with the fiber optic line.

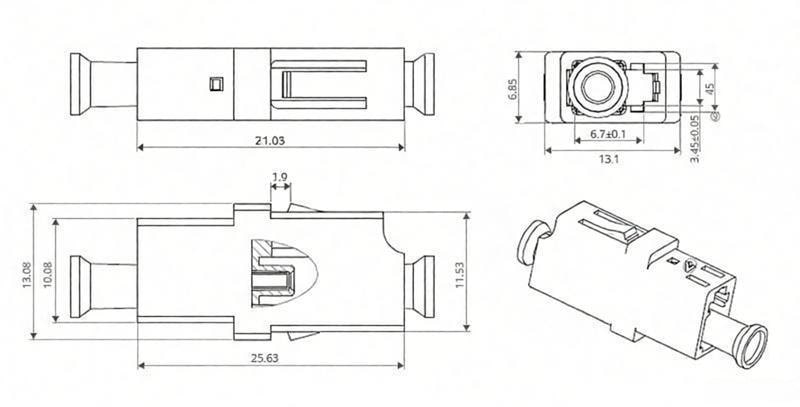

Dimensions (Unit: mm)
