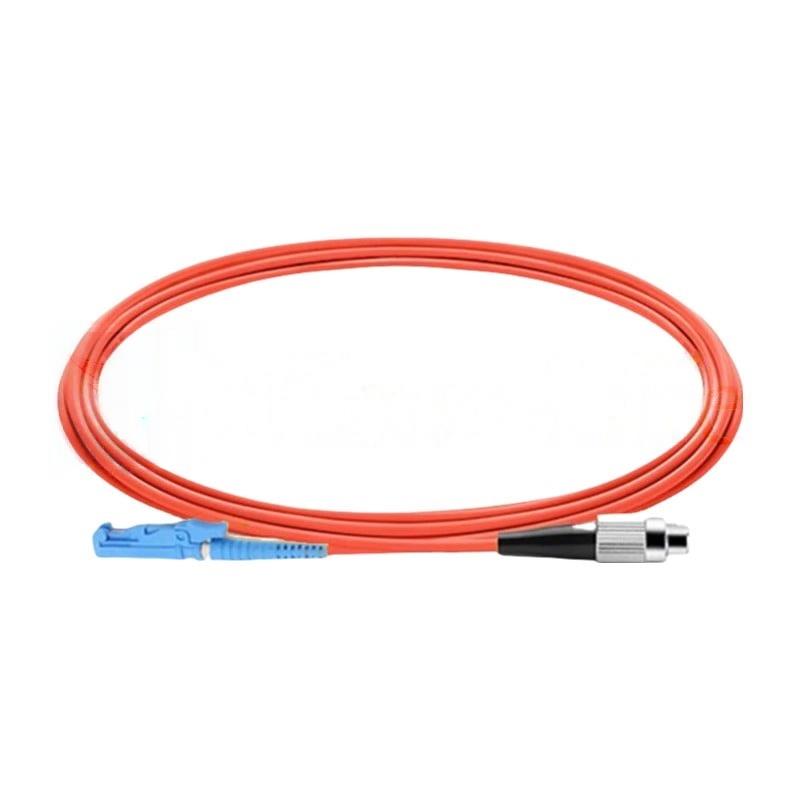

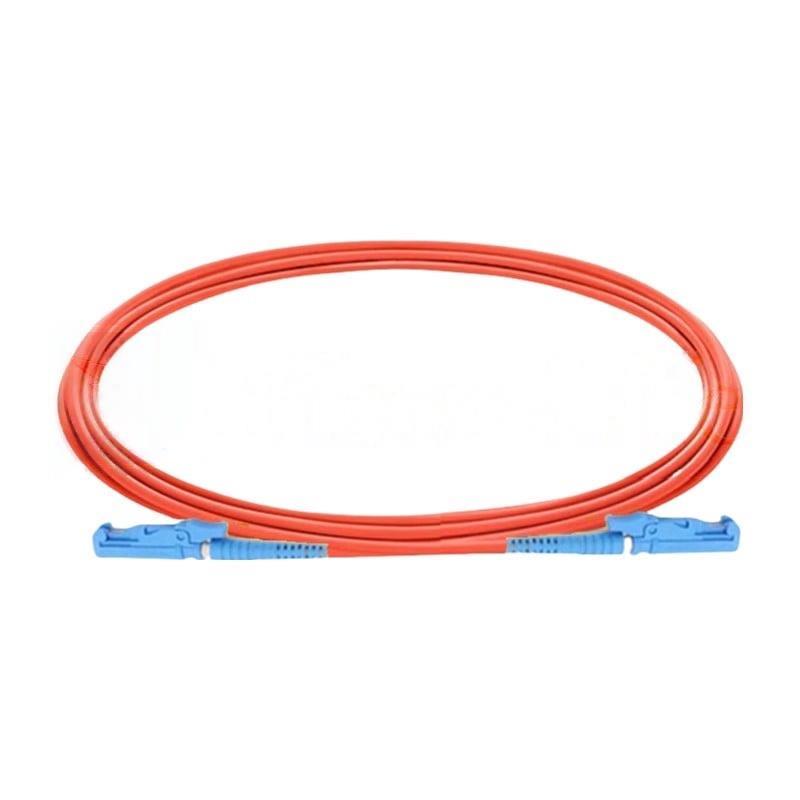

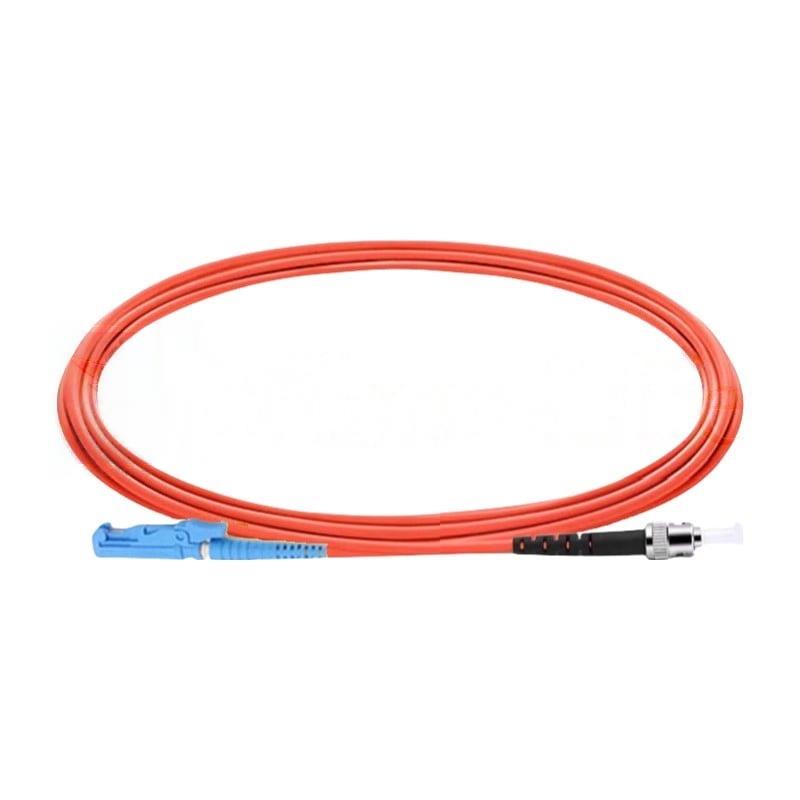

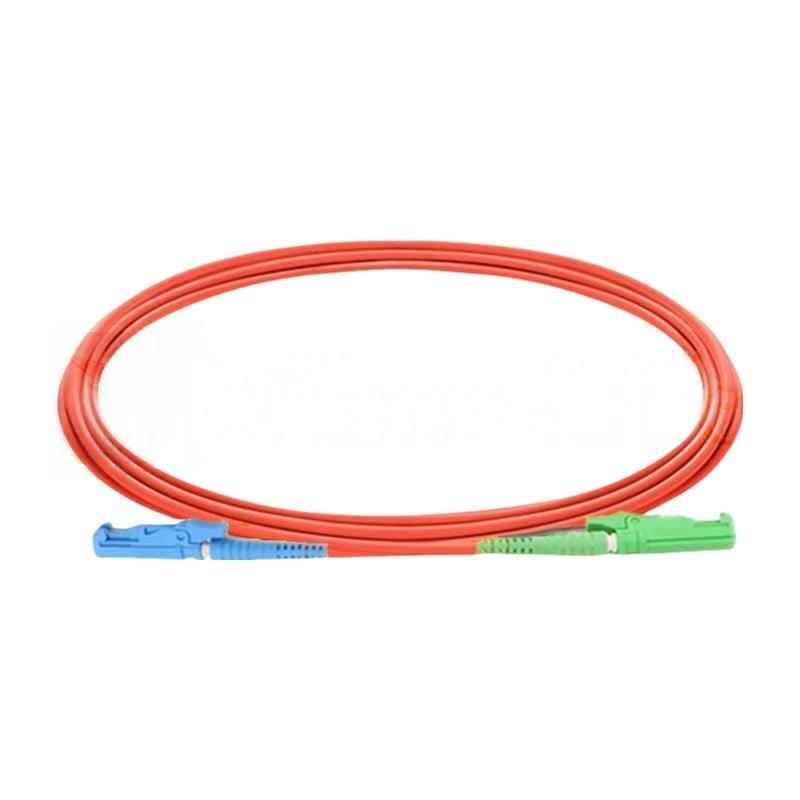

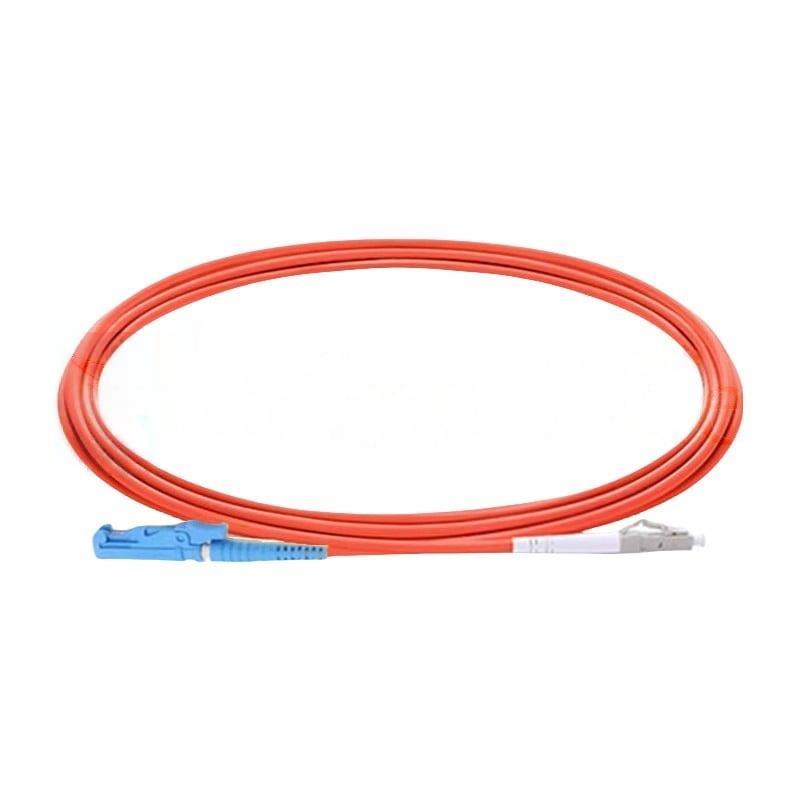

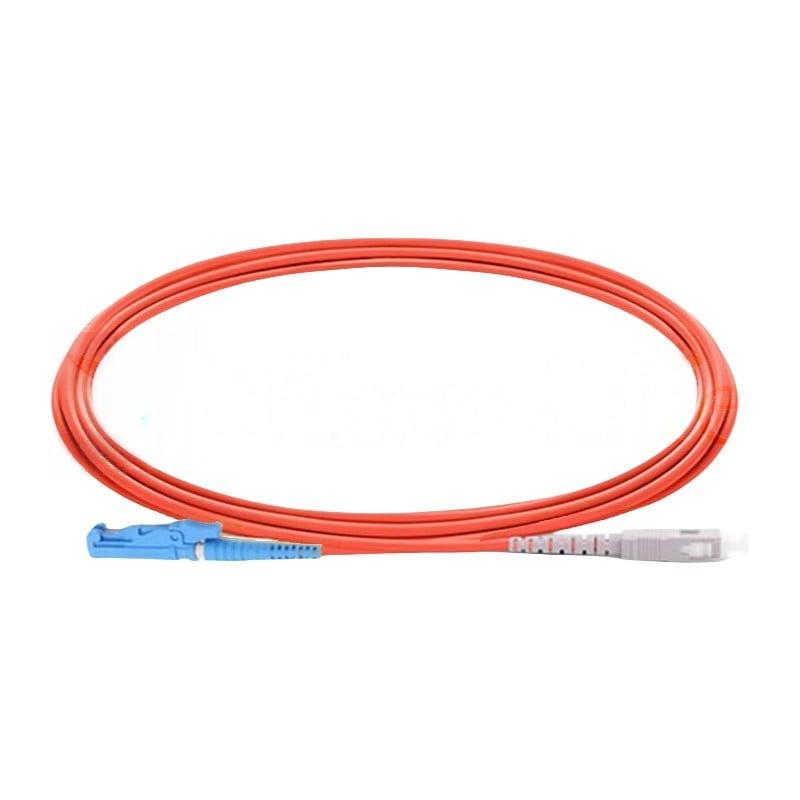

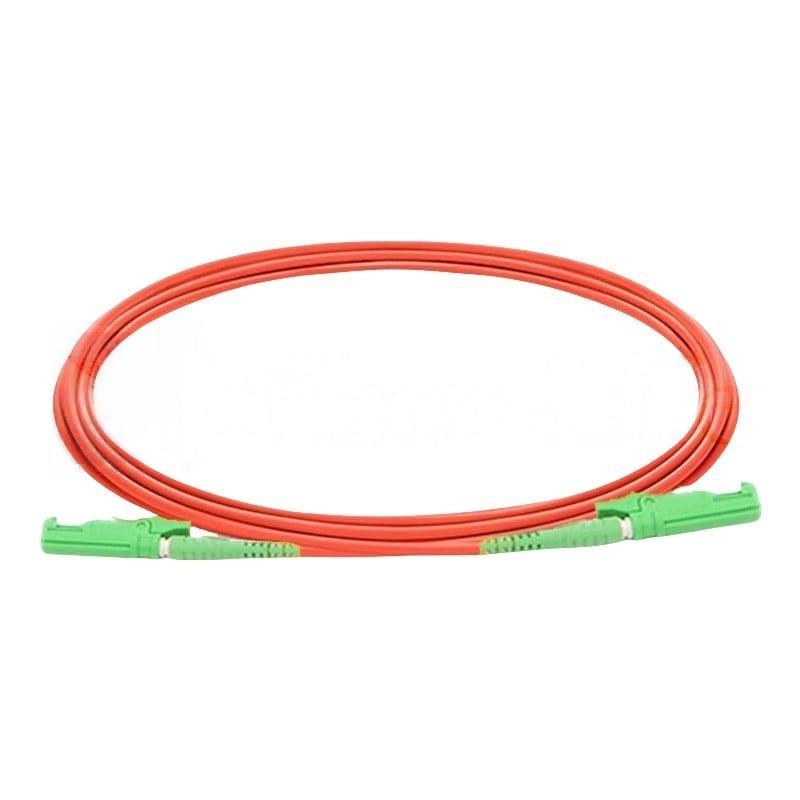

Customized OM1 Multimode Simplex E2000(LSH) Fiber Optic Patch Cable
OM1 Multimode Simplex E2000(LSH) Fiber Optic Patch Cable is used for short-distance, high-bandwidth data transmission with low insertion and return loss, providing excellent protection and reliability.
$5.10
Simplex OM1 Multimode E2000(LSH) Fiber Optic Patch Cable
OM1 Multimode Simplex E2000(LSH) Fiber Optic Patch Cable is used for short-distance, high-bandwidth data transmission in optical networks. It features OM1 multimode fiber with a 62.5-micron core, supporting transmission distances up to 550 meters at 1Gbps. The “Simplex” design indicates it contains a single fiber for unidirectional communication, making it ideal for one-to-one device connections.
The E2000 (also known as LSH) connector, equipped with an automatic dust cover, offers high performance with low insertion and return loss, providing excellent protection and reliability.
Specifications
| Connector Type | E2000(LSH) | Polish Type | UPC/APC |
| Fiber Count | Simplex | Fiber Mode | OM1 62.5/125μm |
| Wavelength | 850/1300nm | 1G Ethernet Distance | 280m at 850nm |
| Insertion Loss | ≤0.3dB | Return Loss | ≥30dB |
| Fiber Grade | G.651 | Minimum Bend Radius | 15mm |
| Cable Jacket | PVC/LSZH/OFNP | Cable Diameter | 0.9/1.6/2.0/3.0mm |
Features
Precision polishing and glue removal
Effectively ensure that the end face of each fiber patch cord is smooth, with no scratches or defects on the surface.
Strict testing
Low loss, high return, ensure fiber insertion loss ≤ 0.3dB, return loss ≥ 30dB.
Three Jacket Materials
The differences between OFNP, PVC, LSZH jackets.
