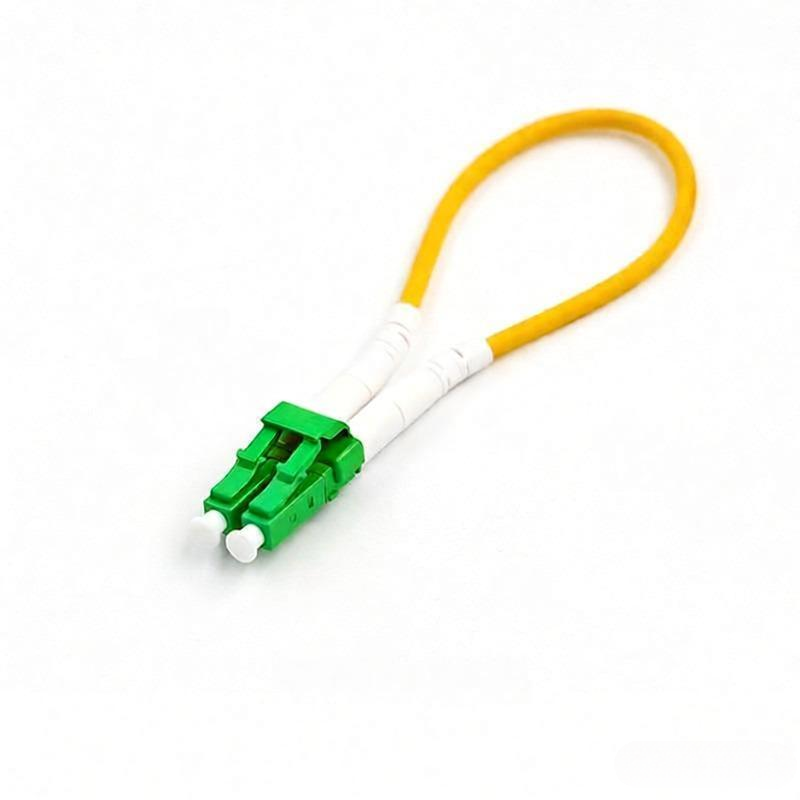

OS2 Singlemode LC/APC Fiber Loopback Cable
OS2 Singlemode LC/APC Fiber Loopback Cable is designed for testing and diagnosing optical network equipment. It features low insertion loss and high return loss, making it ideal for verifying transceiver performance in data centers, telecom systems, and lab environments. Built with precision-polished LC/APC connectors and OS2 9/125μm singlemode fiber, this loopback cable ensures stable signal reflection and accurate results. Compact and durable, it's a must-have tool for network maintenance and troubleshooting.
$2.70
OS2 Singlemode LC/APC Fiber Loopback Cable
OS2 Singlemode LC/APC Fiber Loopback Cable is designed for testing and diagnosing optical network equipment. It features low insertion loss and high return loss, making it ideal for verifying transceiver performance in data centers, telecom systems, and lab environments. Built with precision-polished LC/APC connectors and OS2 9/125μm singlemode fiber, this loopback cable ensures stable signal reflection and accurate results. Compact and durable, it’s a must-have tool for network maintenance and troubleshooting.
Specifications
| Fiber Type | OS2 Singlemode 9/125μm | Fiber Connector | LC/APC |
| Insertion Loss | ≤0.25dB | Return Loss | ≥60dB |
| Jacket Type | PVC/LSZH | Durability | Over 500 Cycles (≤0.2dB Change) |
| Operating Temperature | -20°C ~ 70°C | Storage Temperature | -45°C ~ 85°C |

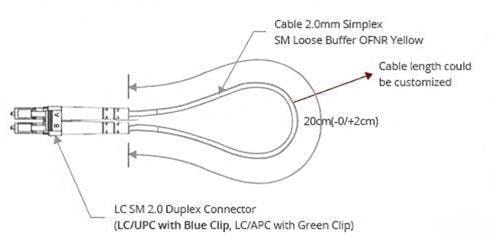

Dimension Drawing
Related Products
The OM4 Multimode SC/UPC Fiber Loopback Module is engineered for high-speed network testing, particularly in 40G/100G environments. It features OM4 50/125μm multimode fiber, optimized for extended bandwidth and superior signal integrity. The SC/UPC connector provides low insertion loss and high repeatability, ensuring accurate test results. This module is ideal for loopback signal testing, transceiver validation, and port diagnostics in data centers, telecom equipment, and lab settings. With its compact, rugged, and plug-and-play design, it enables fast and efficient troubleshooting of optical network systems.
The OS2 Singlemode SC/UPC Fiber Loopback Cable is a reliable solution for testing and diagnosing singlemode optical network equipment. Constructed with 9/125μm OS2 singlemode fiber, it supports long-distance and high-precision signal transmission. The SC/UPC connector ensures low insertion loss and high return loss, making it ideal for transceiver testing, port verification, and network debugging. Its compact, durable, and plug-and-play design makes it perfect for use in data centers, telecom environments, and lab testing applications.
OM4 Multimode SC/UPC Fiber Loopback Cable is a high-performance testing tool designed for 10G/40G/100G fiber optic networks. Constructed with OM4 multimode fiber, it provides ultra-low insertion loss and high return loss, ensuring accurate and reliable loopback testing in data centers and high-speed network environments. The SC/UPC connectors ensure secure and precise connections, making it ideal for validating transceiver ports, diagnosing faults, and performing system checks. Compact and reusable, this loopback cable is essential for efficient equipment testing and maintenance.
The OS2 Singlemode SC/UPC Fiber Loopback Module is designed for network testing, diagnostics, and burn-in procedures. It features a SC/UPC connector and uses 9/125μm OS2 singlemode fiber, ensuring low insertion loss and high return loss for accurate signal reflection. With excellent repeatability, interchangeability, and stable performance, this module is ideal for verifying transceiver performance in data centers, telecom networks, and optical equipment testing environments.
SunmaFiber offers a wide range of Fiber Loopback Modules in different types and specifications, including singlemode (SM) and multimode (MM) options, as well as 8, 12, and 24 fibers configurations to meet various network testing needs. These loopback modules are ideal for verifying MTP/MPO transceiver performance, troubleshooting network issues, and conducting system diagnostics. Built with precision-polished connectors and robust housing, they ensure stable signal reflection and long-term durability, making them an essential tool for data centers and high-speed fiber networks.
