OS2 Singlemode Simplex LC/SC/FC/ST Armored Fiber Optic Pigtail
The OS2 Singlemode Simplex LC/SC/FC/ST Armored Fiber Optic Pigtail from SunmaFiber is designed for reliable and durable fiber terminations in demanding network environments. Built with OS2 singlemode fiber, it ensures ultra-low insertion loss and excellent return loss, providing stable transmission over long distances.
$3.23
OS2 Singlemode Simplex LC/SC/FC/ST Armored Fiber Optic Pigtail
The OS2 Singlemode Simplex LC/SC/FC/ST Armored Fiber Optic Pigtail from SunmaFiber is designed for reliable and durable fiber terminations in demanding network environments. Built with OS2 singlemode fiber, it ensures ultra-low insertion loss and excellent return loss, providing stable transmission over long distances.
Featuring a simplex design, this armored pigtail offers strong protection against mechanical stress, bending, and rodent damage, making it more durable than standard pigtails. Available with LC, SC, FC, and ST connectors, it provides maximum flexibility for integration into various patch panels, distribution boxes, and enclosures.
Specifications
| Connector A | LC/SC/FC/ST/UPC/APC | Connector B | Unterminated |
| Fiber Count | 1 Fiber | Fiber Grade | G.657.A1 |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Cable Diameter | 3.0mm | Cable Jacket | PVC/LSZH |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 Times | Tensile Strength | ≥200/400N (Long/Short Term) |
| Insertion Loss | ≤0.3dB | Return Loss | UPC≥50dB, APC≥60dB |
| Attenuation at 1310nm | 0.36dB/km | Attenuation at 1550nm | 0.22dB/km |
| Operating Temperature | -20 ~ +70°C | Storage Temperature | -40 ~ +80°C |
Features
- OS2 singlemode fiber for long-distance, high-performance transmission

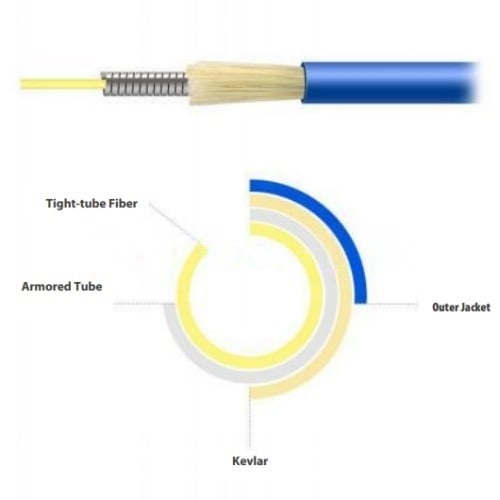

- Armored construction for enhanced crush and rodent resistance
- Simplex design suitable for single-fiber connections
- Connector options: LC, SC, FC, ST
- Low insertion loss & high reliability for stable network performance
Applications
- Data centers and telecom networks
- FTTH (Fiber to the Home) installations
- CATV and enterprise network systems
- Harsh environment deployments requiring armored protection
