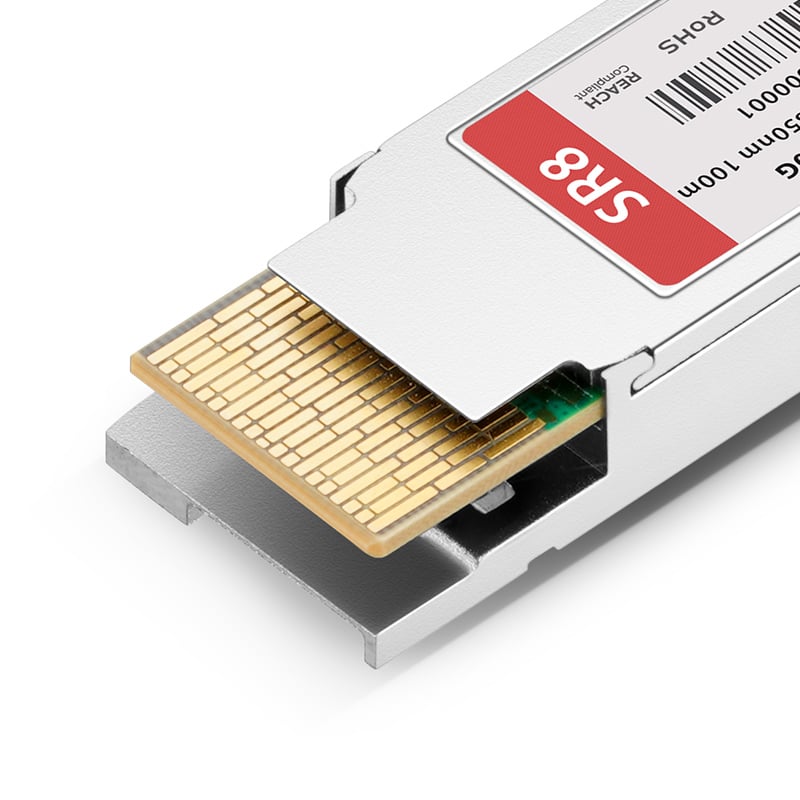

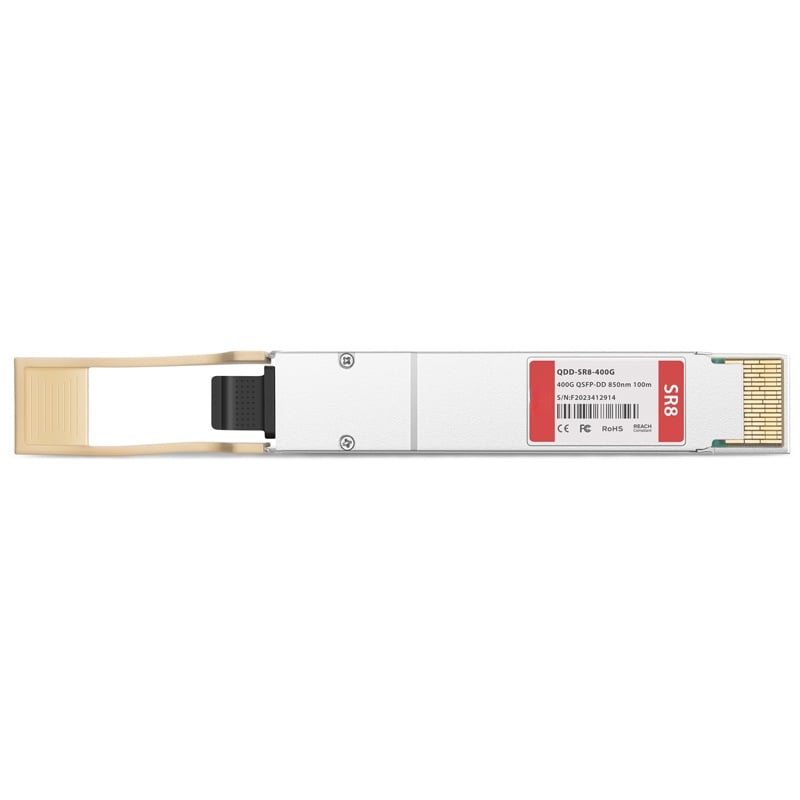

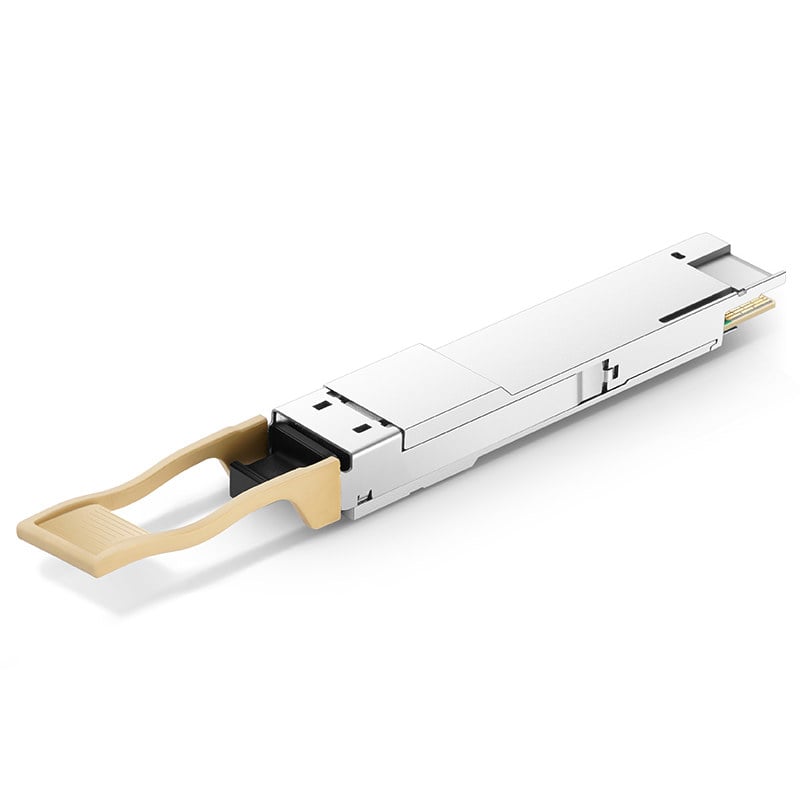

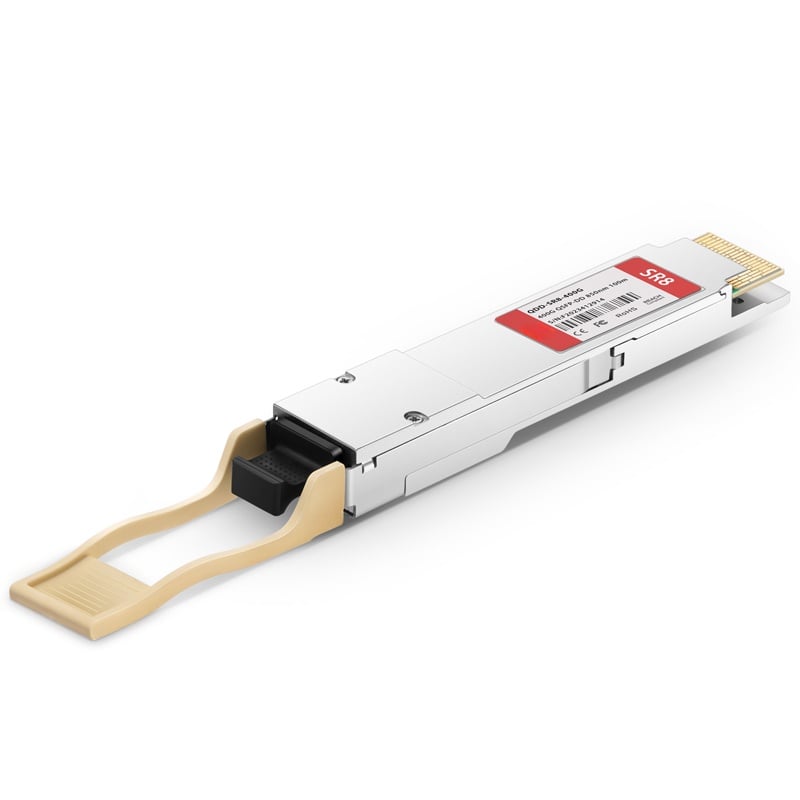

Cisco QDD-400G-SR8-S Compatible 400GBASE-SR8 QSFP-DD PAM4 Optical Transceiver Module (MMF, 850nm, 100m, MTP/MPO, DOM)

The 400GBASE-SR8 module, MTP/MPO-16 connector, up to 100m over parallel OM4 multi-mode fiber. It is compliant to IEEE 802.3bs protocol and 400GAUI-8/CEI-56G-VSR-PAM4 standard.

The 400 Gigabit Ethernet signal is carried over eight wavelengths. Multiplexing and demultiplexing of the eight wavelengths are managed within the device. And it can Support 2× 200G-SR4 and 8× 50G-SR.

Specifications

Quality Certifications

Please Note: Installing a third party transceiver does not void your network equipment warranty. Network equipment manufacturers all have guidelines stating that warranty support on their products will not be affected.

Features

Low Power Consumption for Energy-saving
Built-in Inphi Chip enables 200G stable transmission and low power consumption, saving energy and reducing heat dissipation.
Inphi DSP Chip<10W400GbpsStable TransmissionLower Power ConsumptionHigh-performance

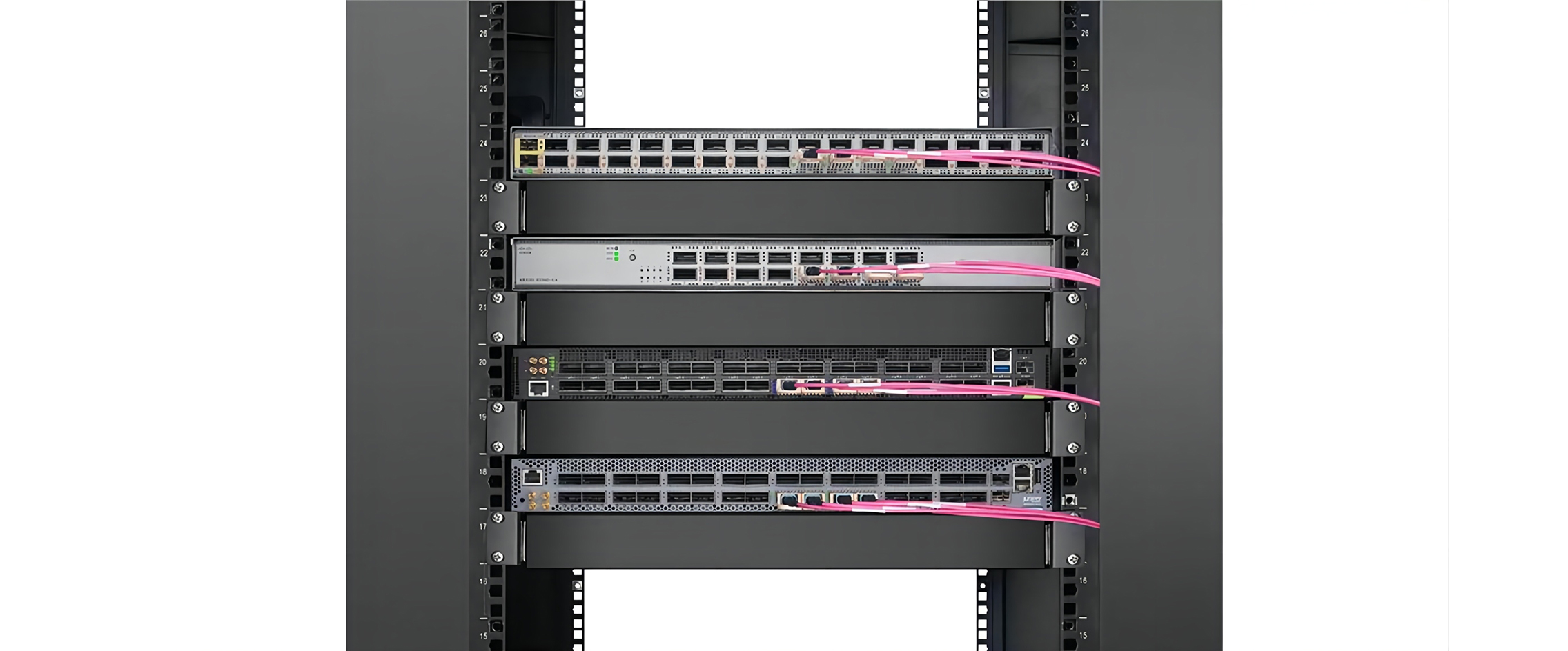

Tested in Host Devices for Proven Interoperability

Every unit is quality tested for compatibility in the targeted switch environment, which guarantees flawless operations.

Comprehensive Testing Increases Reliability

Qualified through a rigorous process with advanced equipments to ensure you get the high quality and reliable optics.
Optical Spectrum TestTDECQ TestBit Error Rate TestTemperature TestNo Packet Loss & CRC1.68dBBER 2.4E-40~70°C

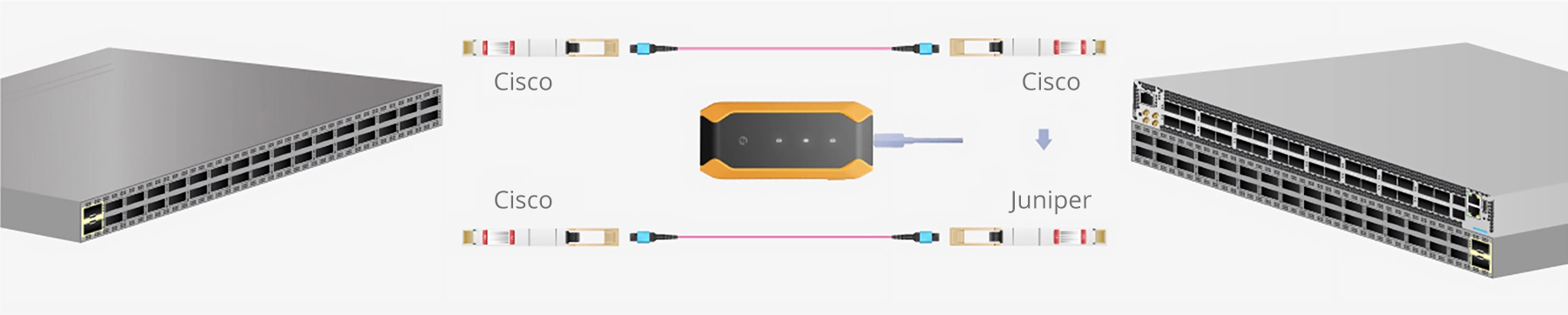

Enable Seamless Connectivity for Your Network

Reconfiguring the transceiver to work with different brands, SunmaFiber BOX offers flexibility in stock costs.
