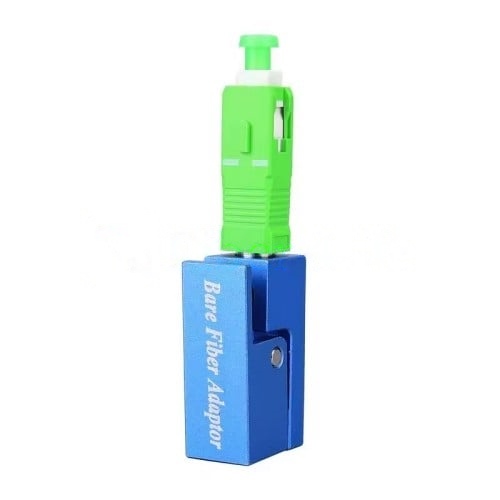

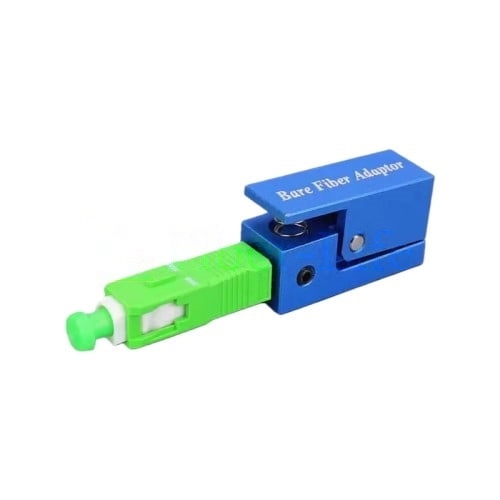

SC/APC Square Bare Fiber Adapter
The SC/APC Square Bare Fiber Adapter is a high-precision optical interface device designed to enable quick and reliable temporary connections between a standard SC/APC connector and a bare optical fiber. It allows stripped fibers to be inserted directly without splicing, epoxy, or polishing—making it ideal for optical testing, power measurement, and alignment applications.
$9.75
SC/APC Square Bare Fiber Adapter
The SC/APC Square Bare Fiber Adapter is a high-precision optical interface device designed to enable quick and reliable temporary connections between a standard SC/APC connector and a bare optical fiber. It allows stripped fibers to be inserted directly without splicing, epoxy, or polishing—making it ideal for optical testing, power measurement, and alignment applications.
Featuring a nickel-plated square metal housing and a high-accuracy zirconia ceramic alignment sleeve, this adapter ensures precise core alignment, low insertion loss, and ultra-low back reflection consistent with APC (Angled Physical Contact) performance standards. The square body design provides enhanced stability and easy handling during laboratory or field use.
Specifications
| Fiber Type | Singlemode/Multimode | Connector Type | SC/APC |
| Insertion Loss | ≤0.2dB | Durability | 1000 Times |
| Body Style | Simplex | Shape | Square |
Key Features
✅ Compatible with standard SC/APC connectors and bare optical fibers.
✅ APC interface ensures ultra-low back reflection and stable optical performance.
✅ Precision zirconia ceramic sleeve for accurate fiber alignment.
✅ Durable square metal housing for strength and reliability.
✅ Ideal for optical testing, R&D, and temporary fiber terminations.
Bare Fiber Adapter User Guide
Step 1: Prepare Materials
Step 2: Strip 15-20mm of the optical fiber coating
Step 3: Wipe the bare fiber clean with industrial alcohol
Step 4: Press down the switch of the bare fiber adapter
(press down the clamp plate for square bare fiber adapters and press down the round button for round bare fiber adapters)

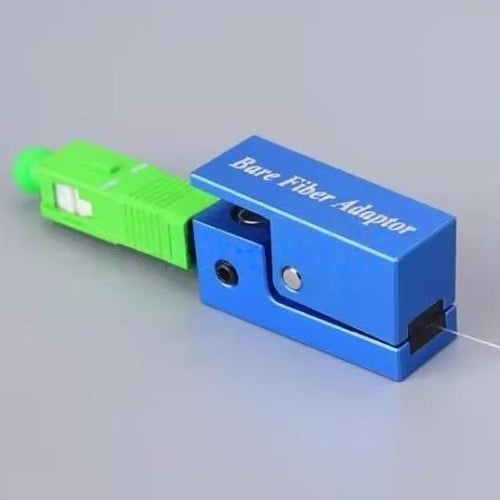

Step 5: Slowly push the bare fiber into the guide hole
Step 6: Use a pen-type fiber optic cutter to cut the excess bare fiber that exposes the ceramic end face.
(The operation is completed by cutting the bare fiber. After use, pull out the fiber and it can be reused)
