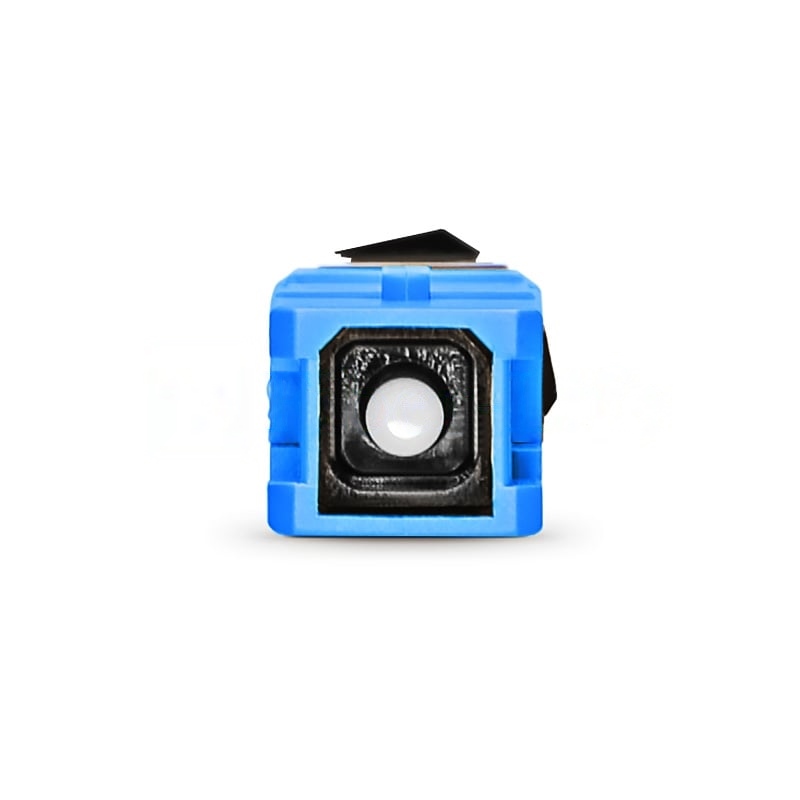

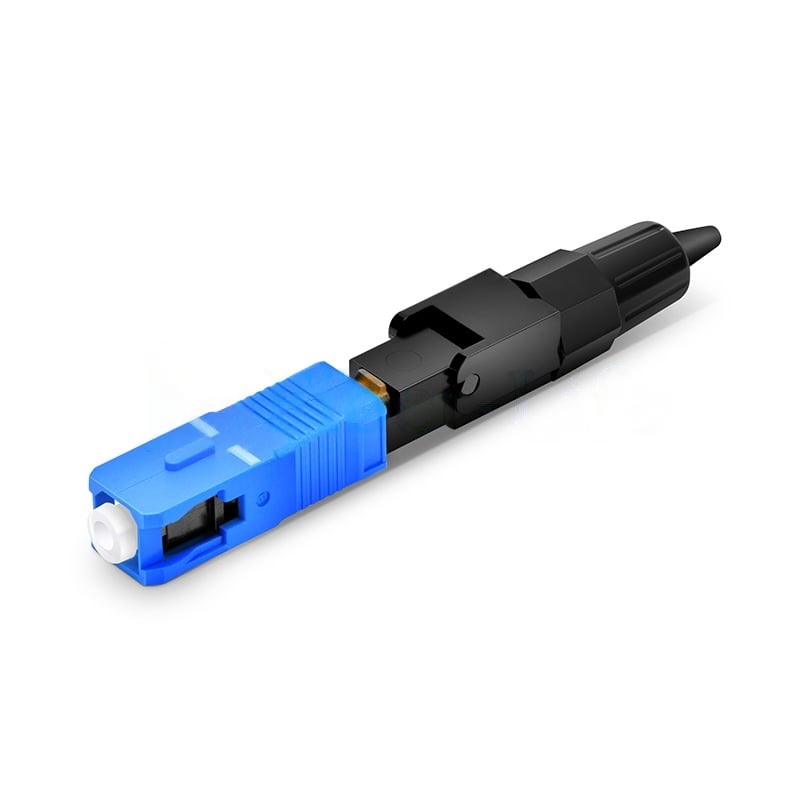

SC Pre-polished Ferrule Field Assembly Fast Connector

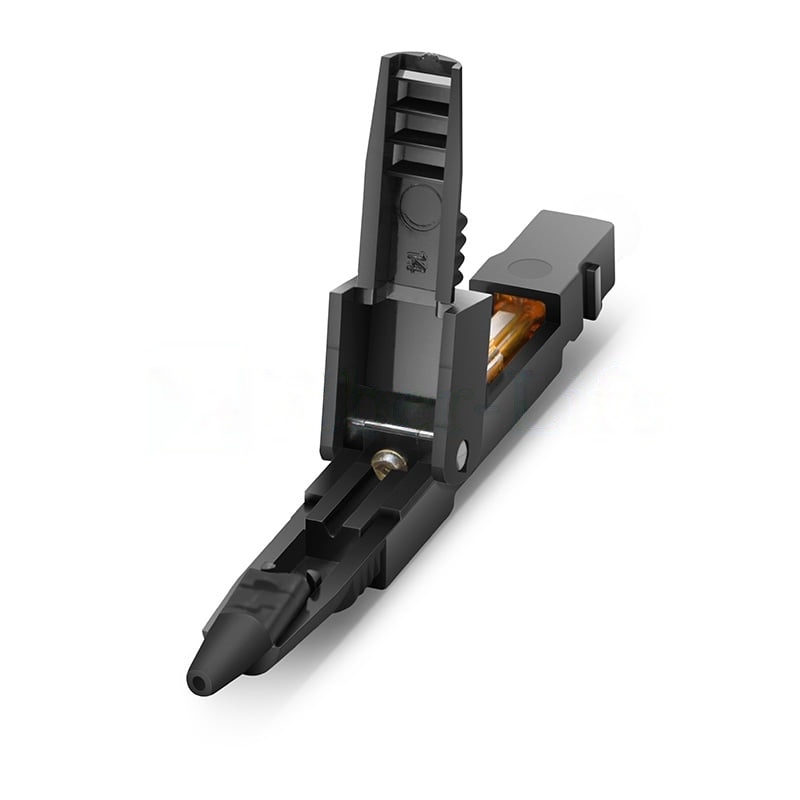

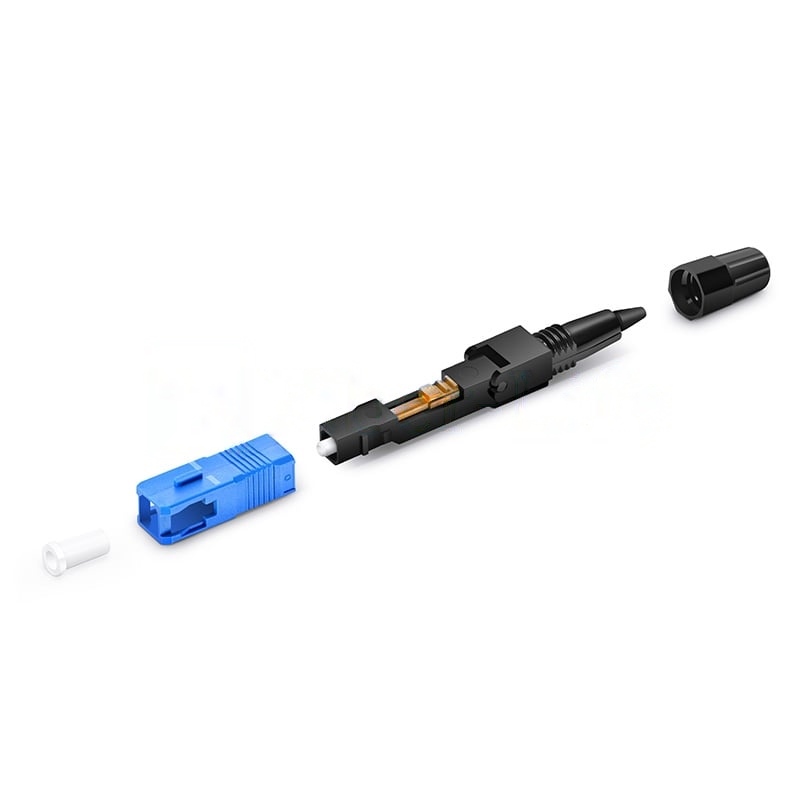

SC Pre-polished Ferrule Field Assembly Fast Connector is designed for fast installation on site without epoxy or adhesive. The connector is equipped with a pre-polished ceramic ferrule and a mechanical core docking structure, which can quickly connect the optical fiber to the connector on site.
$3.00
SC Pre-polished Ferrule Field Assembly Fast Connector
SC Pre-polished Ferrule Field Assembly Fast Connector is a fast connector for fiber optic networks, designed for fast installation on site without epoxy or adhesive. The connector is equipped with a pre-polished ceramic ferrule and a mechanical core docking structure, which can quickly connect the optical fiber to the connector on site.
Its main features include no epoxy required, which simplifies the installation process, the pre-polished ferrule ensures high-performance optical connection, and the entire installation process only takes a few minutes, which is very suitable for scenarios that require rapid deployment such as fiber to the home (FTTH), fiber repair, data centers, and enterprise networks. The installation steps are simple, just strip the fiber, insert the connector and lock it, and finally ensure that the insertion loss and return loss can meet the network performance requirements.
Specification
| Connector Type | SC | Polishing | UPC/APC |
| Ferrule | Ceramic | Fiber Mode | Singlemode/Multimode |
| Cable Diameter | 0.9/2.0/3.0mm | Dimension | 50mm |
| Insertion Loss | ≤0.35dB | Return Loss | ≥50dB(SMF)/≥20dB(MMF) |
| Tension Test | ≥100N | Temperature | Storage -40 To 85°C Operating -20 To 75°C |
Related Products

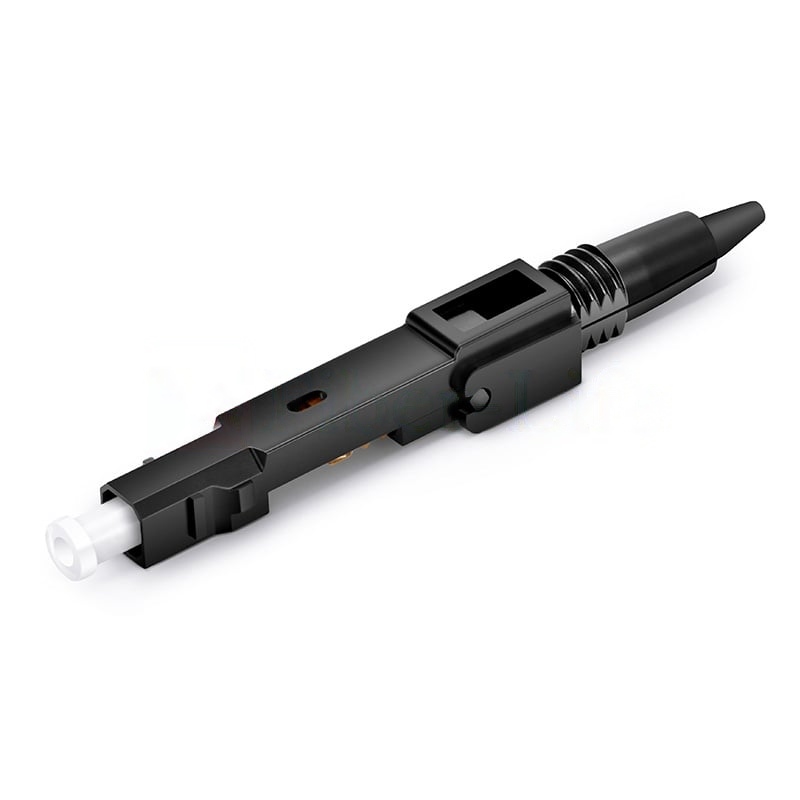

LC Pre-polished Ferrule Field Assembly Fast Connector is widely used in fiber-to-the-home (FTTH) and fiber-optic local area network (LAN) scenarios.
FC Pre-polished Ferrule Field Assembly Fast Connector adopts threaded connection and reliable physical contact design, and is suitable for applications with long-distance transmission and high stability requirements, such as telecommunications infrastructure and fiber-to-the-home (FTTH).
