SC/UPC To SC/UPC Simplex OS2 Singlemode Fiber Patch Cable
Shop SunmaFiber SC/UPC to SC/UPC Simplex OS2 Singlemode Fiber Patch Cable for low-loss, high-stability connections. Ideal for FTTH, data centers, and long-distance optical networks. Available in 2.0mm and 3.0mm. Ensure fast, reliable transmission—order now!
$2.34

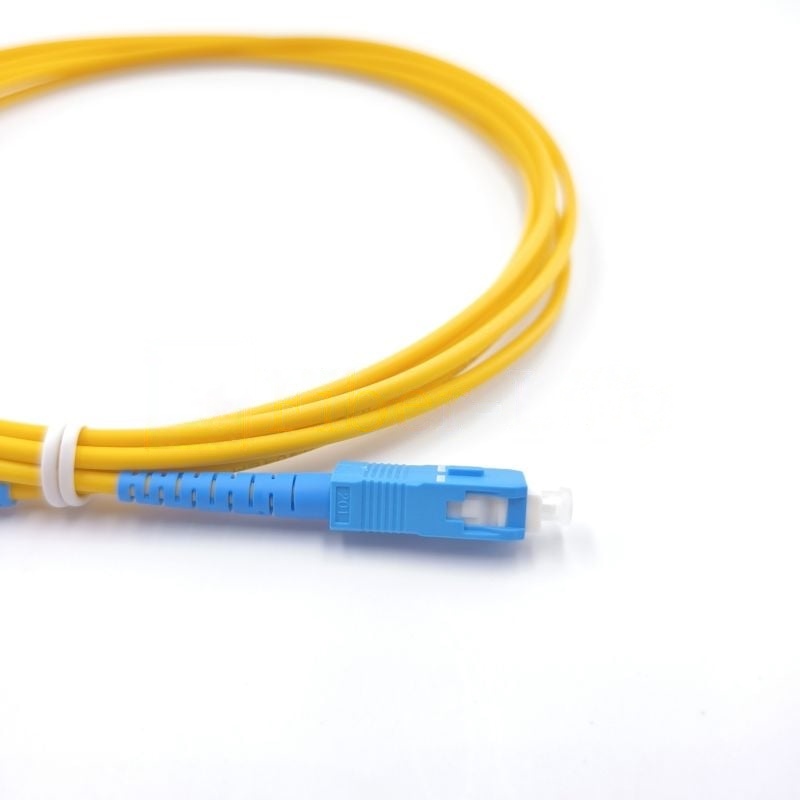

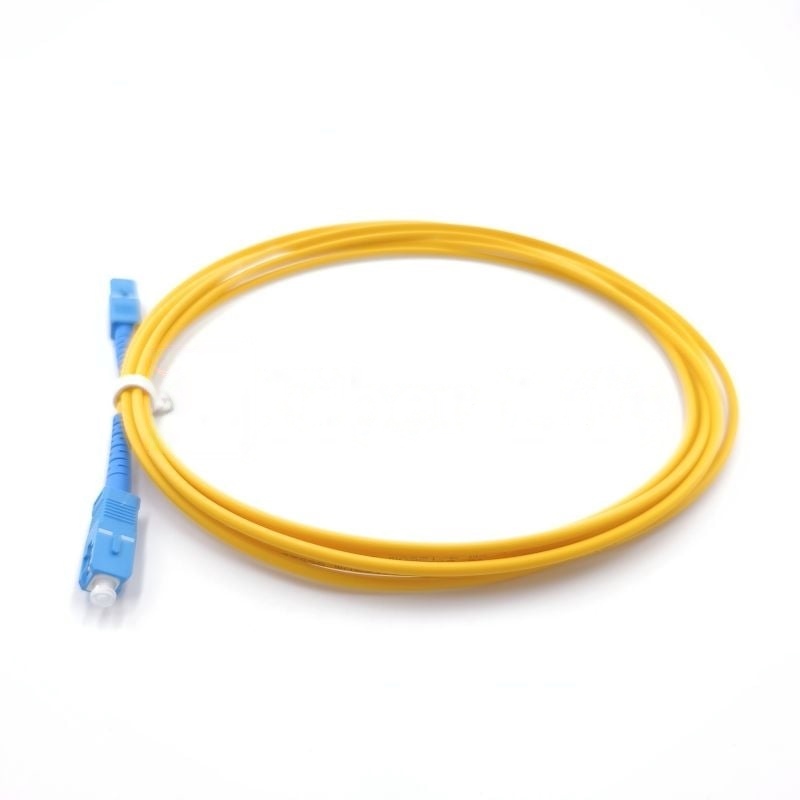

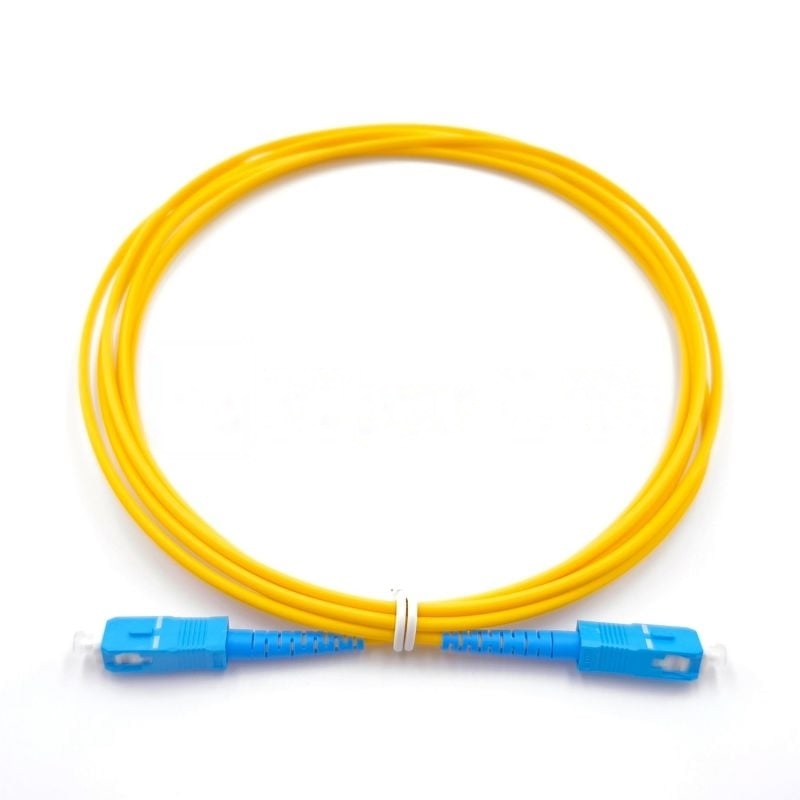

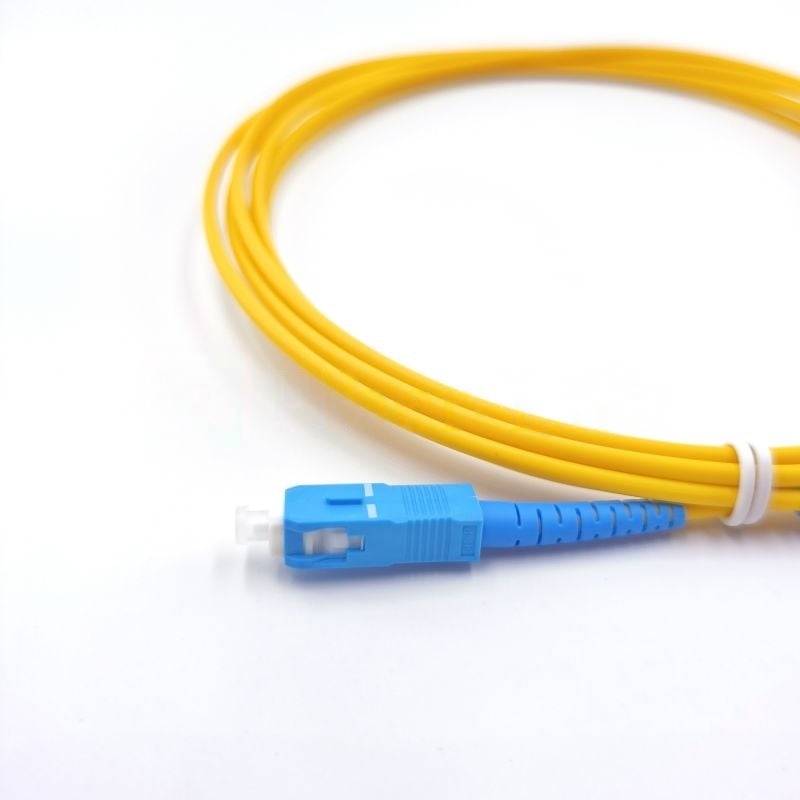

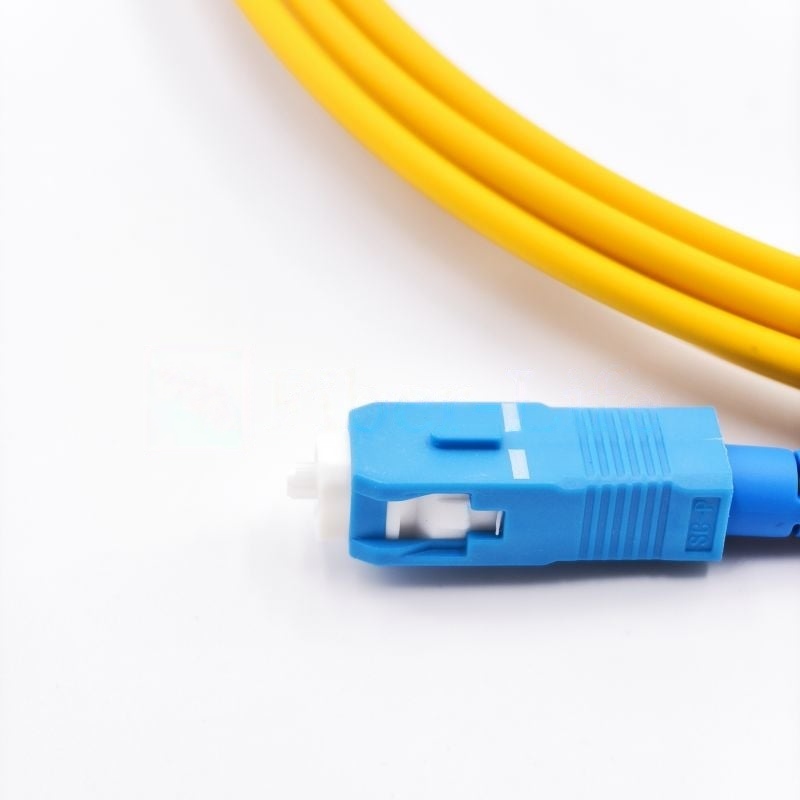

SC/UPC to SC/UPC Simplex OS2 Singlemode Fiber Patch Cable | Low Loss & High Stability Fiber Optic Jumper
The SunmaFiber SC/UPC to SC/UPC Simplex OS2 Singlemode Fiber Patch Cable is designed with G.657.A1 9/125μm OS2 fiber, fully compliant with ITU-T G.652.D standards, making it ideal for long-distance optical communication, data centers, and FTTH/FTTX applications. The SC/UPC flat-polished connectors ensure low insertion loss and high return loss, providing stable signal transmission. Available in 2.0mm and 3.0mm diameters to meet diverse cabling needs.
Specifications
| Connector A | SC UPC | Connector B | SC UPC |
| Fiber Count | 1 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 Singlemode 9/125μm | Wavelength | 1310/1550nm |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength (Long/Short Term) | 60/100N |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Operating Temperature | -20°C ~ ＋70°C | Storage Temperature | -40°C ~ ＋80°C |
Key Features:
✅ Low Insertion Loss & High Return Loss – SC/UPC connectors ensure an insertion loss of ≤0.3dB and a return loss of ≥50dB for stable signal transmission.
✅ Premium OS2 Fiber – Built with G.657.A1 9/125μm single-mode fiber, fully compliant with G.652.D standards, supporting 10G/40G/100G optical networks.
✅ High-Stability Connection – Ceramic ferrules ensure precise alignment, while the SC push-pull locking mechanism provides a secure and stable connection, reducing signal loss.
✅ Multiple Diameter Options – Available in 2.0mm and 3.0mm to suit different installation environments, making management and deployment easier.
✅ Wide Compatibility – Ideal for data centers, FTTH/FTTX fiber access, fiber optic communication, telecom networks, and fiber optic test equipment.
Applications:
🔹 Long-distance optical communication
🔹 Data centers & cloud computing networks
🔹 FTTH/FTTX fiber-to-the-home solutions
🔹 Telecom networks & base station applications
🔹 Optical fiber testing & measurement equipment
SunmaFiber SC/UPC to SC/UPC Simplex OS2 Fiber Patch Cable ensures efficient, low-loss fiber connectivity, enabling stable and reliable data transmission!
