SM/MM FC Fixed Male-Female Attenuator, 1~30dB Optional
Reliable SM/MM FC fiber optic attenuator with 1-30dB fixed options, ensuring stable performance for optical power management, signal testing, and long-distance transmission optimization.
$4.60

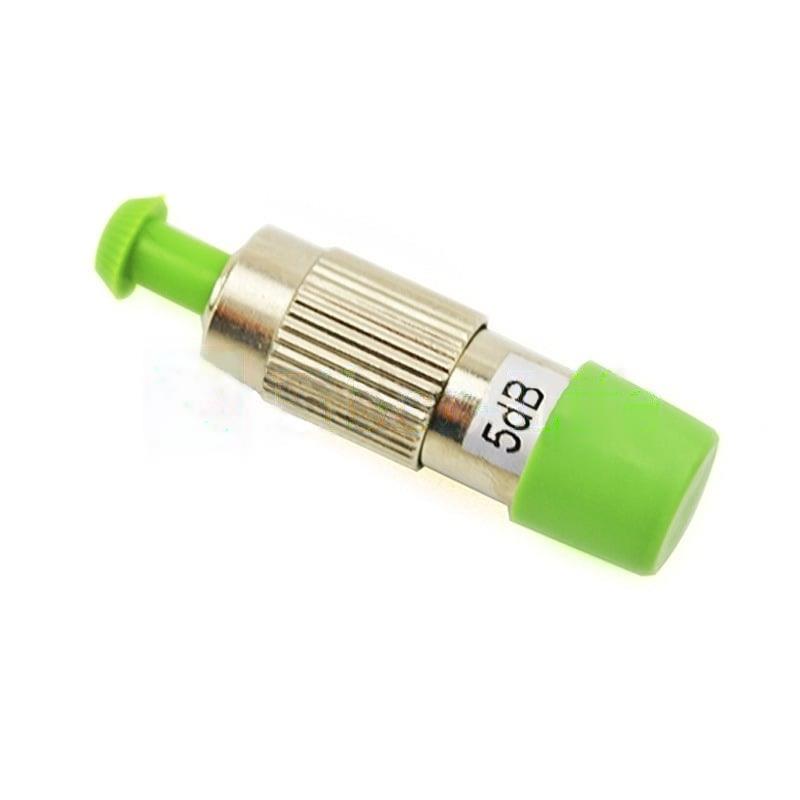

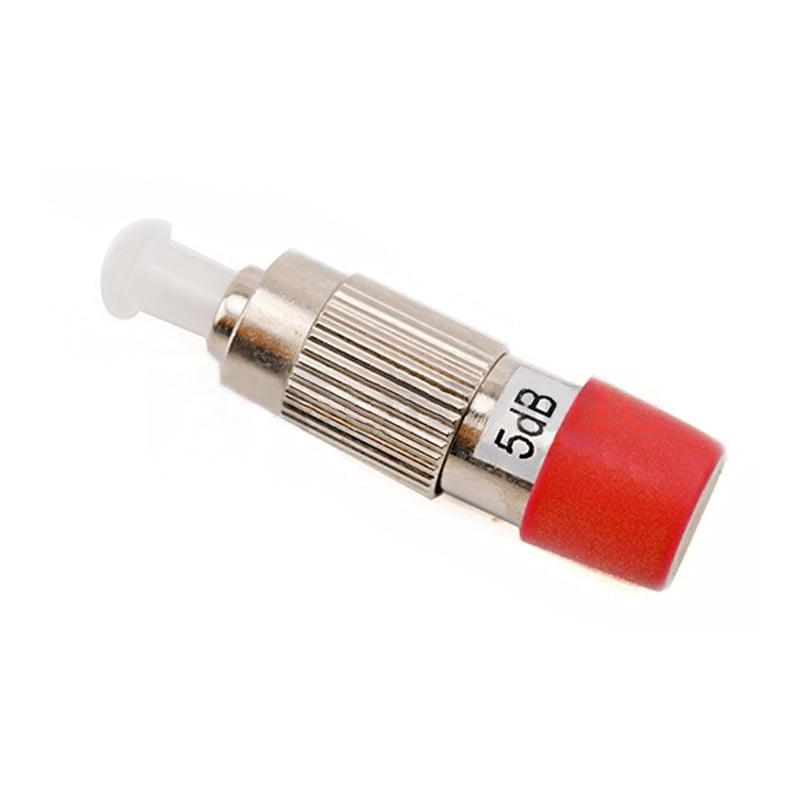

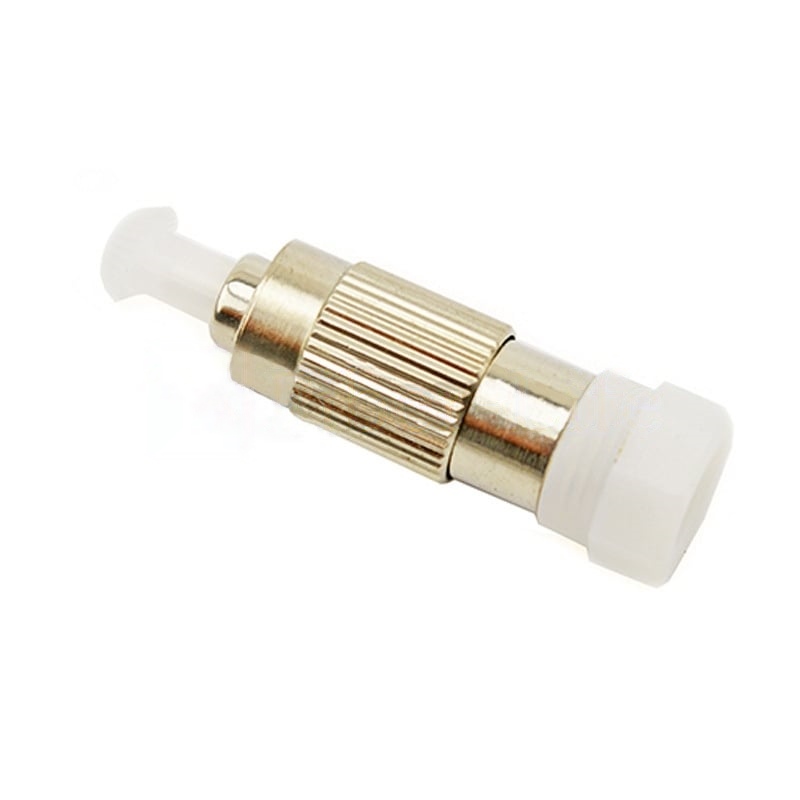

SM/MM FC Fixed Male-Female Attenuator, 1~30dB Optional
The SM/MM FC Fixed Male-Female Fiber Optic Attenuator is a precision device designed for fiber optic communication systems to optimize network performance by reducing optical signal strength. It is compatible with both single-mode (SM) and multimode (MM) fiber systems and features an FC connector with a threaded design for secure and reliable connections. With a male (plug) end and a female (socket) end, it allows for easy integration with fiber optic jumpers or equipment. Offering fixed attenuation values from 1dB to 30dB, it ensures stable performance and high reliability, making it ideal for applications such as optical power management, signal testing and measurement, and long-distance transmission optimization. This attenuator is an essential component for precise optical power control.
Specification
| Fiber Connector | FC | Ferrule Type | Zirconia Ceramic |
| Connector Gender | Fixed Male to Female | Transfer Mode | SM/MM |
| Attenuation | 1~30dB | Operating Wavelength | 1310/1550nm(SM), 850/1300nm(MM) |
| Attenuation Accuracy | 1-5dB±0.5dB, 6-30dB±10% | Return Loss | SM≥50dB, MM≥30dB |
| Polarization Dependent Loss | ≤0.2dB | Max Optical Input Power | 200mW |
| Storage Temperature Range | -40 to 85°C (-40 to 185°F) | Operating Temperature Range | -40 to 80°C (-40 to 176°F) |
| Push-Pull | ≥1000 Times, Loss≤0.2dB | Humidity | 95%RH |

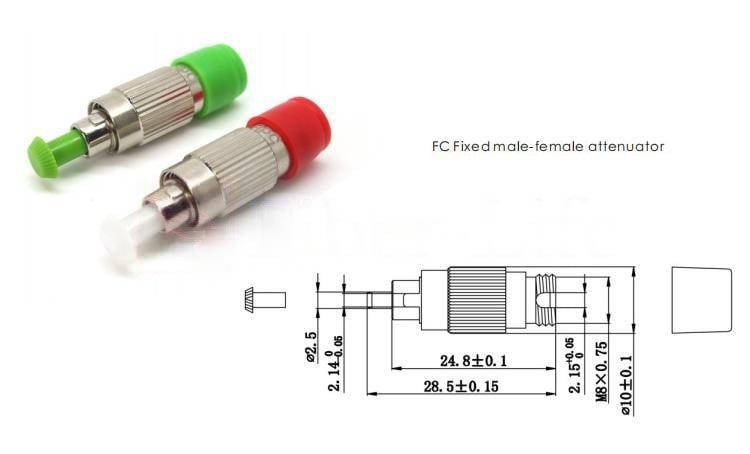

Dimension(mm)
