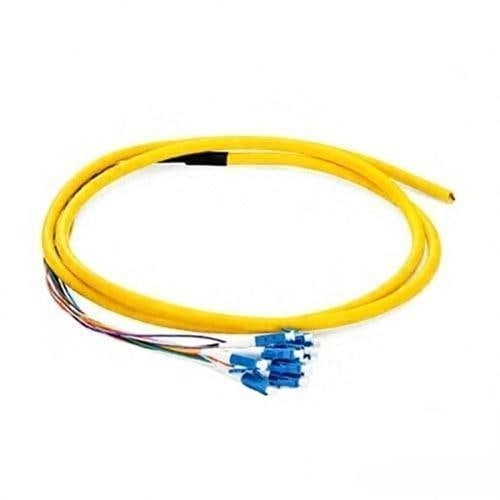

12 Fibers Singlemode LC/UPC Bunch Fiber Optic Pigtail
12 Fibers Singlemode LC/UPC Bunch Fiber Optic Pigtail is designed for high-density fiber termination applications. Each pigtail features 900μm or 2.0mm fibers bundled together and pre-terminated with LC/UPC connectors, ensuring low insertion loss and high return loss. These pigtails are made with G.657.A1 bend-insensitive fiber, offering excellent flexibility and reliability in space-constrained environments. Ideal for fusion splicing, patch panel termination, or fiber distribution frames, this product provides a cost-effective and time-saving solution for singlemode fiber network deployments. Each fiber is clearly color-coded for easy identification, complying with TIA/EIA standards.
$16.50
12 Fibers Singlemode LC/UPC Bunch Fiber Optic Pigtail
12 Fibers Singlemode LC/UPC Bunch Fiber Optic Pigtail is designed for high-density fiber termination applications. Each pigtail features 900μm or 2.0mm fibers bundled together and pre-terminated with LC/UPC connectors, ensuring low insertion loss and high return loss. These pigtails are made with G.652.D/G.657.A1/G.657.A2 bend-insensitive fiber, offering excellent flexibility and reliability in space-constrained environments. Ideal for fusion splicing, patch panel termination, or fiber distribution frames, this product provides a cost-effective and time-saving solution for singlemode fiber network deployments. Each fiber is clearly color-coded for easy identification, complying with TIA/EIA standards.
Specifications
| Connector A | LC/UPC | Connector B | Unterminated |
| Fiber Count | 12 Fibers | Fiber Grade | G.652.D/G.657.A1/G.657.A2 |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Cable Jacket | PVC/LSZH | Jacket Color | Yellow |
| Cable Type | Ribbon | Breakout Diameter | 0.9/2.0mm |
| Min. Bend Radius | 10mm | Min. Bend Radius | 10/5D (Dynamic/Static) |
| Attenuation at 1310nm | 0.36dB/km | Attenuation at 1550nm | 0.22dB/km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Vibration | ≤0.2dB | Interchangeability | ≤0.2dB |
| Operating Temperature | -40 ~ 75°C | Storage Temperature | -45 ~ 85°C |
Features
Cross-Sectional Comparison of 900μm vs 2.0mm Diameter Fiber Pigtails
