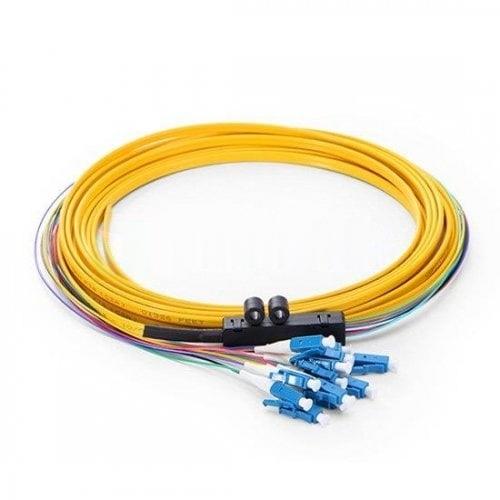

12 Fibers Singlemode LC/UPC Ribbon Fanout Fiber Optic Pigtail
The 12 Fibers Singlemode LC/UPC Ribbon Fanout Fiber Optic Pigtail is designed for high-density fiber optic connections, offering low insertion loss and high return loss. Featuring a ribbon fiber structure with a 0.9mm or 2.0mm fanout design, it ensures easy splicing, efficient cable management, and stable performance. Pre-terminated with LC/UPC connectors, this pigtail is ideal for data centers, telecom networks, and FTTx applications. Available in customizable fiber lengths and fanout diameters.
$17.50
12 Fibers Singlemode LC/UPC Ribbon Fanout Fiber Optic Pigtail | High-Precision & Low Loss
The 12 Fibers Singlemode LC/UPC Ribbon Fanout Fiber Optic Pigtail is designed for high-density fiber optic connections, offering
Specifications
| Connector A | LC/UPC | Connector B | Unterminated |
| Fiber Count | 12 Fibers | Fiber Grade | G.652.D/G.657.A1/G.657.A2 |
| Fiber Mode | OS2 9/125μm | Wavelength | 1310/1550nm |
| Cable Jacket | PVC/LSZH | Jacket Color | Yellow |
| Cable Type | Ribbon | Fanout Diameter | 0.9/2.0mm |
| Min. Bend Radius | 10mm | Min. Bend Radius | 10/5D (Dynamic/Static) |
| Attenuation at 1310nm | 0.36dB/km | Attenuation at 1550nm | 0.22dB/km |
| Insertion Loss | ≤0.3dB | Return Loss | ≥50dB |
| Vibration | ≤0.2dB | Interchangeability | ≤0.2dB |
| Operating Temperature | -40 ~ 75°C | Storage Temperature | -45 ~ 85°C |
Features
Cross-Sectional Comparison of 900μm vs 2.0mm Diameter Fiber Pigtails
