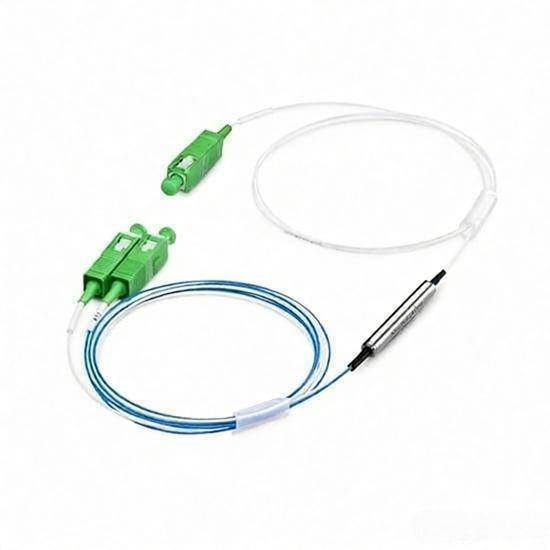

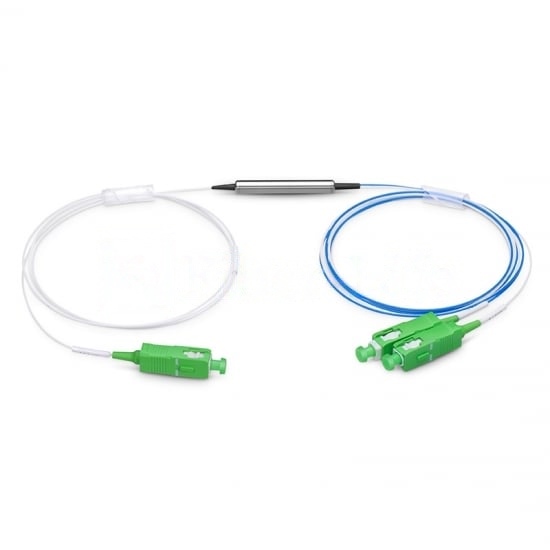

1×2 1310/1480/1550nm Polarization Beam Combiner (PBC)
The 1×2 1310/1480/1550nm Polarization Beam Combiner (PBC) for efficient combining of P-polarized and S-polarized light. Ideal for fiber optic communication, laser systems, and quantum computing, featuring low insertion loss, high return loss, and stable performance.
$222.34
1×2 1310/1480/1550nm Polarization Beam Combiner (PBC)
A 1×2 1310/1480/1550nm Polarization Beam Combiner (PBC) is a high-precision optical device designed to combine two orthogonal polarized light beams (P-polarized and S-polarized) into a single output. It supports common communication wavelengths of 1310nm, 1480nm, and 1550nm, offering low insertion loss, high return loss, and high extinction ratio for optimal optical performance. Capable of handling up to 500mW optical power, this PBC is widely used in fiber optic communication systems (DWDM, optical amplifiers, optical switches), optical measurement and sensing, laser systems (laser cavities, polarization control), and quantum communication and computing. Its 1×2 structure makes it an ideal solution for polarization control, optical signal processing, and high-precision optical experiments.
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength | 1310nm or 1480nm or 1550nm |
| Operating Wavelength Range | ±40nm |
| Typical Insertion Loss (@23℃) | ≤0.4dB |
| Maximum Insertion Loss (@23℃) | ≤0.6dB |
| Min. Extinction Ratio (For Splitter Only) (@23℃) | ≥22dB |
| Min. Return Loss (@23℃) | ≥50dB |
| Operating Temperature | -10 ~ +75℃ |
| Storage Temperature | -40 ~ +85℃ |
| Fiber Type | PM1310 or PM1550 or Specify |
| Max. Tensile Load | 5N |

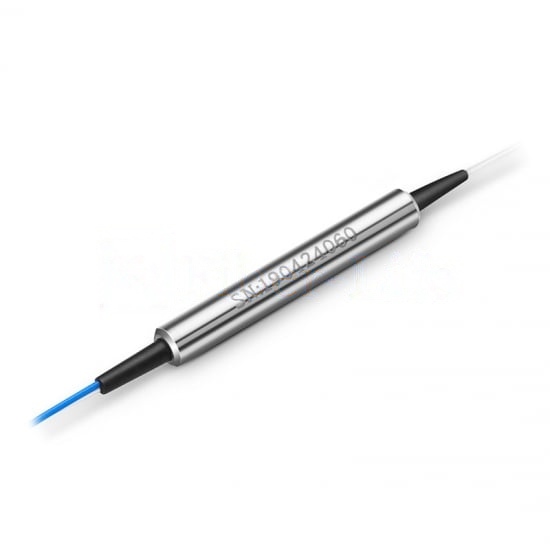

| Package Dimension | Φ5.5 × L38mm |
| Power Handling | 500mW or Specify |
Note: For devices with connectors,IL will be 0.3dB higher, RL will be 5dB lower, ER is 2dB lower.
| Features | Applications |
|---|---|
| Low Insertion Loss | High Power EDFA |
| High Extinction Ratio | Raman Amplifier |
| Compact In-Line Package | Laboratory |
| High Stability And Reliability | |
| Epoxy Free On Optical Path |
