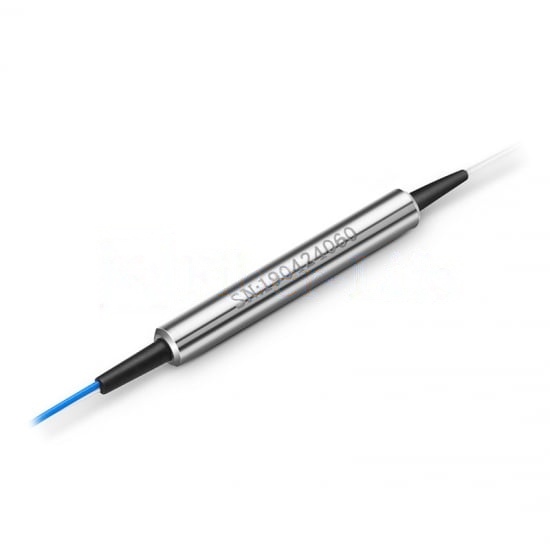

1×2 1310/1480/1550nm Polarization Beam Splitter (PBS)
1×2 1310/1480/1550nm Polarization Beam Splitter (PBS) is a high-precision optical device that can split input light into P-polarized light and S-polarized light according to the polarization state of the light. It is suitable for three common communication wavelengths of 1310nm, 1480nm and 1550nm. This PBS has low insertion loss, high extinction ratio and stable optical performance.
$222.34
1×2 1310/1480/1550nm Polarization Beam Splitter (PBS)
1×2 1310/1480/1550nm Polarization Beam Splitter (PBS) is a high-precision optical device that can split input light into P-polarized light and S-polarized light according to the polarization state of the light. It is suitable for three common communication wavelengths of 1310nm, 1480nm and 1550nm. This PBS has low insertion loss, high extinction ratio and stable optical performance. It is widely used in fiber optic communication systems (DWDM, optical amplifiers, optical switches), optical measurement and sensing, laser systems (laser cavities, polarization control) and quantum communication and quantum computing. Its 1×2 structure makes it an ideal choice for polarization control, optical signal processing and high-precision optical experiments.
Specifications
| Parameter | Value |
|---|---|
| Center Wavelength | 1310nm or 1480nm or 1550nm |
| Operation Wavelength Range | ±40nm |
| Typical Insertion Loss (@23℃) | ≤0.4dB |
| Maximum Insertion Loss (@23℃) | ≤0.6dB |
| Min. Extinction Ratio (For Splitter Only) (@23℃) | ≥22dB |
| Min. Return Loss (@23℃) | ≥50dB |
| Operation Temperature | -10 ~ +75℃ |
| Storage Temperature | -40 ~ +85℃ |
| Fiber Type | PM1310 or PM1550 or Specify |
| Max. Tensile Load | 5N |
| Package Dimension | Φ5.5 × L38mm |
| Power Handling | 500mW or Specify |
Note: For devices with connectors,IL will be 0.3dB higher, RL will be 5dB lower, ER is 2dB lower.
| Features | Applications |
|---|---|
| Low Insertion Loss | High Power EDFA |
| High Extinction Ratio | Raman Amplifier |
| Compact In-Line Package | Laboratory |
| High Stability And Reliability | |
| Epoxy Free On Optical Path |
