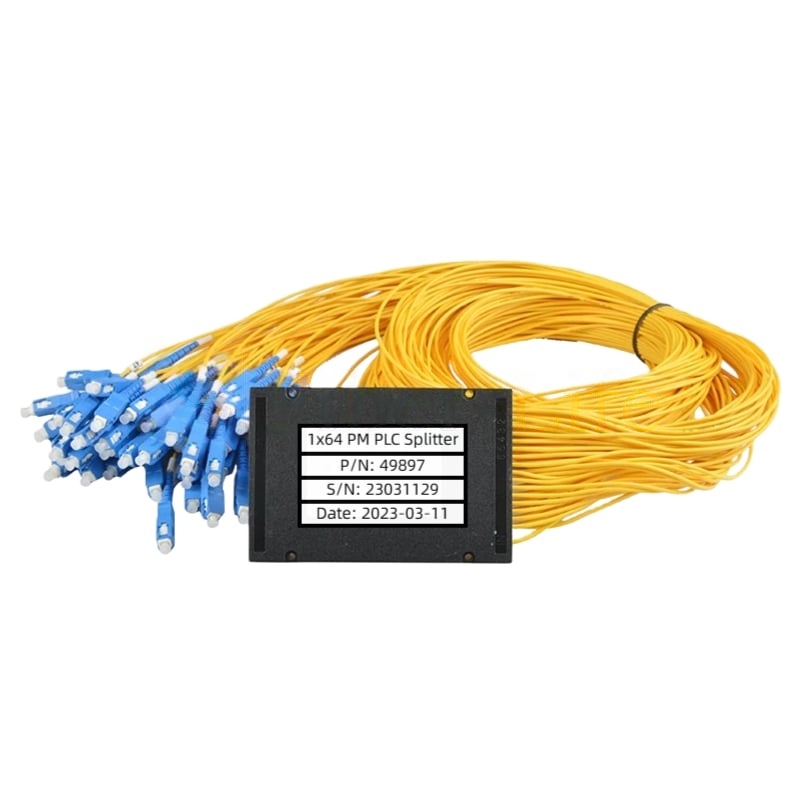

1×64 1310/1550nm ABS Box Polarization Maintaining PLC Splitter Slow Axis Working
The 1×64 1310/1550nm ABS Box Polarization Maintaining PLC Splitter (Slow Axis Working) is a high-density optical component engineered for advanced polarization-maintaining fiber systems that demand both precision and reliability. Utilizing a Planar Lightwave Circuit (PLC) chip fabricated through advanced silica-on-silicon technology, this splitter delivers ultra-low insertion loss, excellent wavelength uniformity, and superior channel-to-channel consistency, ensuring stable optical performance across all 64 output ports.
$4,760.00
1×64 1310/1550nm ABS Box Polarization Maintaining PLC Splitter Slow Axis Working
The 1×64 1310/1550nm ABS Box Polarization Maintaining PLC Splitter (Slow Axis Working) is a high-density optical component engineered for advanced polarization-maintaining fiber systems that demand both precision and reliability. Utilizing a Planar Lightwave Circuit (PLC) chip fabricated through advanced silica-on-silicon technology, this splitter delivers ultra-low insertion loss, excellent wavelength uniformity, and superior channel-to-channel consistency, ensuring stable optical performance across all 64 output ports.
Encased in a compact, lightweight, and durable ABS box, the splitter is ideal for integration in polarization-sensitive optical communication networks, interferometric systems, and fiber sensing setups. The slow-axis working configuration ensures precise polarization alignment, preserving signal integrity in coherent transmission and measurement applications.
With a high extinction ratio (≥16dB), return loss ≥50dB, and low PDL, this splitter provides long-term stability even under wide temperature variations, making it an excellent choice for laboratory environments, field deployments, and industrial-grade optical networks.
Specifications
| Parameter | 1×2 | 1×3 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×24 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|---|---|---|---|
| Operating Wavelength | 1310nm or 1550nm or Specify | |||||||||
| Insertion Loss (@23℃) | ≤3.8dB | ≤6.2dB | ≤7.0dB | ≤9.4dB | ≤10.3dB | ≤12.6dB | ≤13.5dB | ≤15.8dB | ≤16.6dB | ≤21dB |
| Consistency | ≤0.4dB | ≤0.5dB | ≤0.6dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.0dB | ≤1.1dB | ≤1.5dB | ≤2.0dB |
| Extinction Ratio (@23℃) | ≥18dB | ≥18dB | ≥18dB | ≥18dB | ≥18dB | ≥18dB | ≥18dB | ≥18dB | ≥18dB | ≥16dB |
| Return Loss | ≥50dB | |||||||||
| Power Handling | 500mW or Specify | |||||||||
| Fiber Type | PM1310 or PM1550 or Specify | |||||||||
| Connector | LC/SC/FC/ST/UPC/APC | |||||||||
| Working Axis | Slow Axis | |||||||||
| Fiber Length Tolerance | ±10% | |||||||||
| Operating Temperature | -5 ~ 70℃ | |||||||||
| Storage Temperature | -45 ~ 85℃ | |||||||||
Note: For device with connector, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower.
