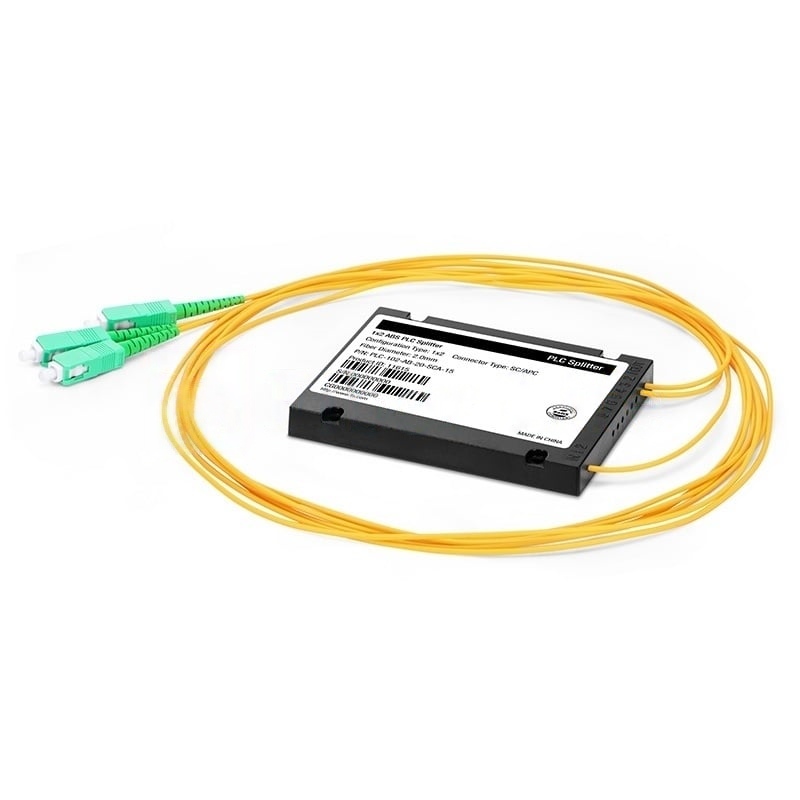

1×2 Singlemode ABS Box PLC Splitter
The 1×2 Singlemode ABS Box PLC Splitter is a compact and highly reliable optical power distribution device designed for FTTH and FTTx networks. Utilizing planar lightwave circuit (PLC) technology, it evenly splits a single optical signal into two outputs with minimal insertion loss and excellent uniformity. Housed in a durable ABS box, it offers easy installation and stable performance in both indoor and outdoor environments. Ideal for PON, GPON, and EPON systems, this splitter ensures long-term reliability and consistent signal transmission across your fiber optic network.
$11.20
1×2 Singlemode ABS Box PLC Splitter
The 1×2 Singlemode ABS Box PLC Splitter is a compact and highly reliable optical power distribution device designed for FTTH and FTTx networks. Utilizing planar lightwave circuit (PLC) technology, it evenly splits a single optical signal into two outputs with minimal insertion loss and excellent uniformity. Housed in a durable ABS box, it offers easy installation and stable performance in both indoor and outdoor environments. Ideal for PON, GPON, and EPON systems, this splitter ensures long-term reliability and consistent signal transmission across your fiber optic network.
Specifications
| Parameter | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Operating Wavelength | 1260nm ~ 1650nm | |||||
| Fiber Type | G657A1 | |||||
| Insertion Loss | ≤3.8dB | ≤7.2dB | ≤10.3dB | ≤13.5dB | ≤16.5dB | ≤20.5dB |
| Loss Uniformity | ≤0.4dB | ≤0.6dB | ≤0.8dB | ≤1.0dB | ≤1.5dB | ≤2.0dB |
| Polarization Dependent Loss | ≤0.2dB | ≤0.2dB | ≤0.2dB | ≤0.3dB | ≤0.3dB | ≤0.4dB |
| Return Loss | ≥50dB | |||||
| Directivity | ≥55dB | |||||
| Wavelength Dependent Loss | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤0.5dB | ≤1.0dB | ≤1.0dB |
| Fiber Length | 1m or Specify | |||||
| Temperature Stability | ≤0.5dB | |||||
| Operating Temperature | -20℃ ~ +85℃ | |||||
| Storage Temperature | -40℃ ~ +85℃ | |||||
| Maximum Power Handing | 500mW | |||||
| Dimension (L×W×H) | 100mm × 80mm × 10mm | 120mm × 80mm × 18mm | 140mm × 115mm × 18mm | |||
Note: Specified without connectors; add an additional 0.2dB loss per connector.
| Features | Applications |
|---|---|
| Low Insertion Loss | FTTX Systems |
| Low PDL | PON Networks |
| Compact Design | CATV Links |
| Good Channel-to-Channel Uniformity | Optical Signal Distribution |
| High Reliability and Stability |

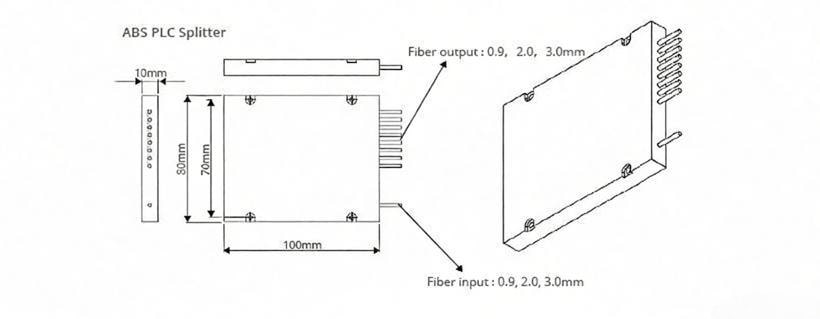

Dimension Drawing (Unit: mm)
Related Products

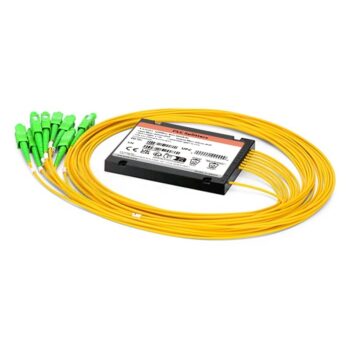

The 1×8 Singlemode ABS Box PLC Splitter is an essential passive optical component designed to split one input fiber into eight uniform output fibers with high precision and stability. Utilizing advanced PLC (Planar Lightwave Circuit) technology, it offers low insertion loss, excellent channel uniformity, and superior reliability for long-term performance. Encased in a rugged ABS box, this splitter is ideal for FTTx deployments, PON networks, and CATV systems, ensuring easy installation and consistent signal distribution in various indoor network environments.

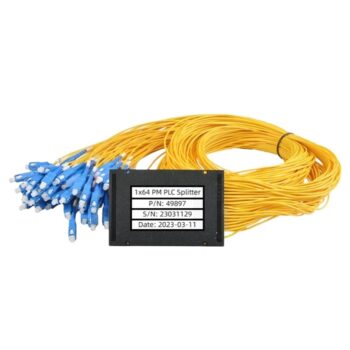

The 1×64 1310/1550nm ABS Box Polarization Maintaining PLC Splitter (Slow Axis Working) is a high-density optical component engineered for advanced polarization-maintaining fiber systems that demand both precision and reliability. Utilizing a Planar Lightwave Circuit (PLC) chip fabricated through advanced silica-on-silicon technology, this splitter delivers ultra-low insertion loss, excellent wavelength uniformity, and superior channel-to-channel consistency, ensuring stable optical performance across all 64 output ports.

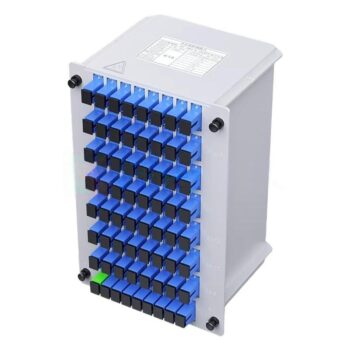

1×64 Singlemode Mini Plug-In, Blade Module PLC Splitter is a high-density optical splitter designed for large-scale FTTH and PON network deployments. Leveraging PLC (Planar Lightwave Circuit) technology, it efficiently divides one input signal into 64 uniform outputs with low insertion loss, high reliability, and excellent optical performance. The mini plug-in blade-type module allows for easy installation into compact distribution frames or optical terminal boxes, optimizing space utilization. Constructed with G.657A1 singlemode fiber, this splitter ensures stable signal transmission and long-term durability in various environmental conditions.
