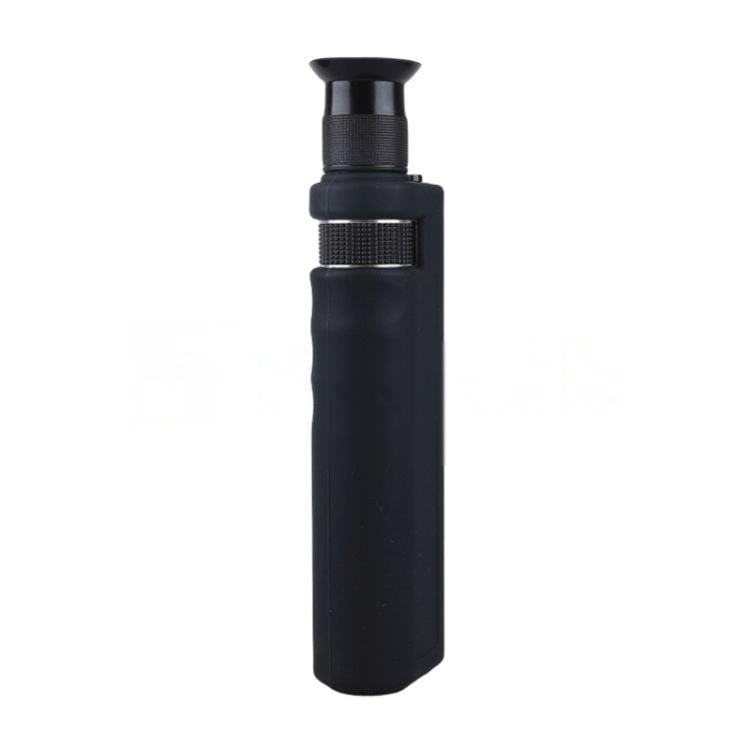

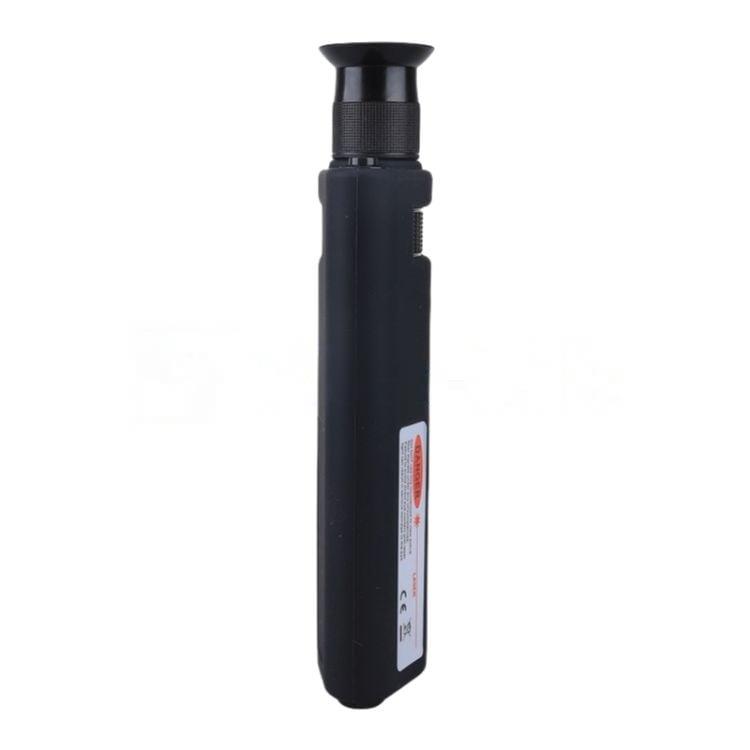

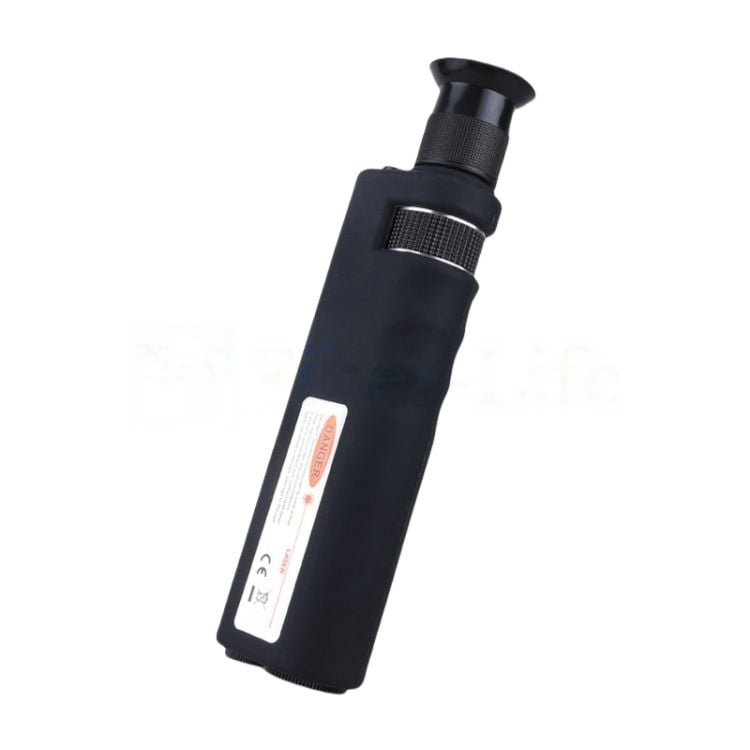

200x Handheld Fiber Inspection Microscope
The 200x Handheld Fiber Inspection Microscope is a high-precision optical inspection tool designed for examining fiber optic connector end faces with exceptional clarity. Featuring 200× magnification, it allows users to easily detect scratches, dust, pits, and other defects that may affect signal transmission performance.
$177.00
200x Handheld Fiber Inspection Microscope
The 200x Handheld Fiber Inspection Microscope is a high-precision optical inspection tool designed for examining fiber optic connector end faces with exceptional clarity. Featuring 200× magnification, it allows users to easily detect scratches, dust, pits, and other defects that may affect signal transmission performance.

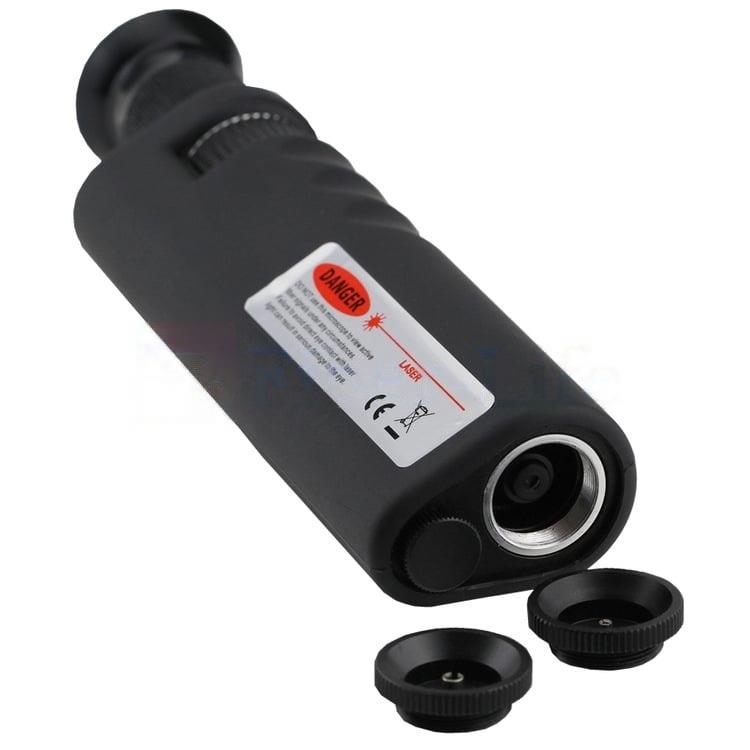

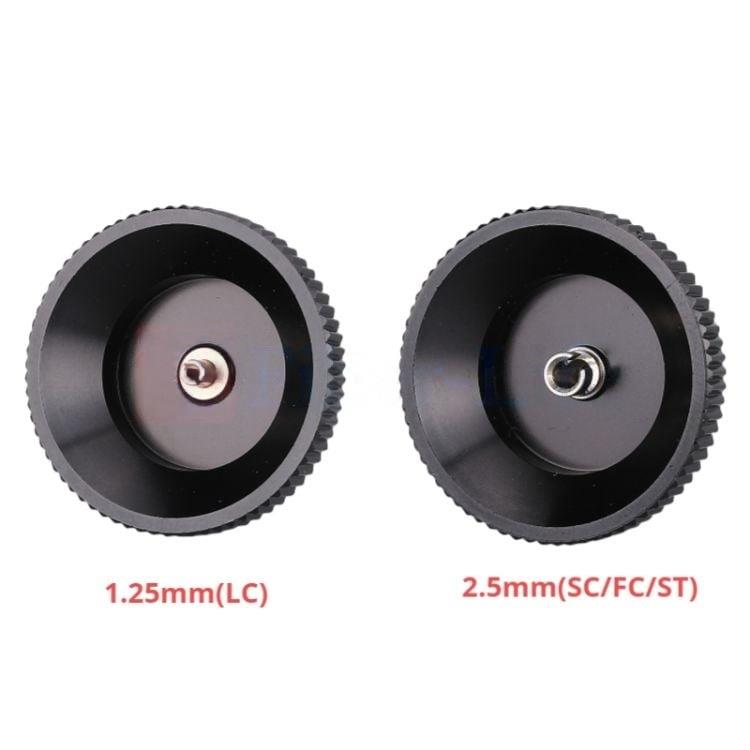

Equipped with a white LED coaxial illumination system, this microscope provides bright, even lighting for accurate and consistent inspection results. Its ergonomic handheld design ensures comfortable use in field or laboratory environments, while the focus adjustment ring allows fine-tuning for different connector types such as FC, SC, ST, LC, and others with optional adapters.
Ideal for fiber optic maintenance, quality control, and production testing, the 200x handheld microscope is an essential tool for ensuring connector cleanliness and optimal network performance.
Specifications
| Magnification | 100/200X | LED Life | 10000 Hours |

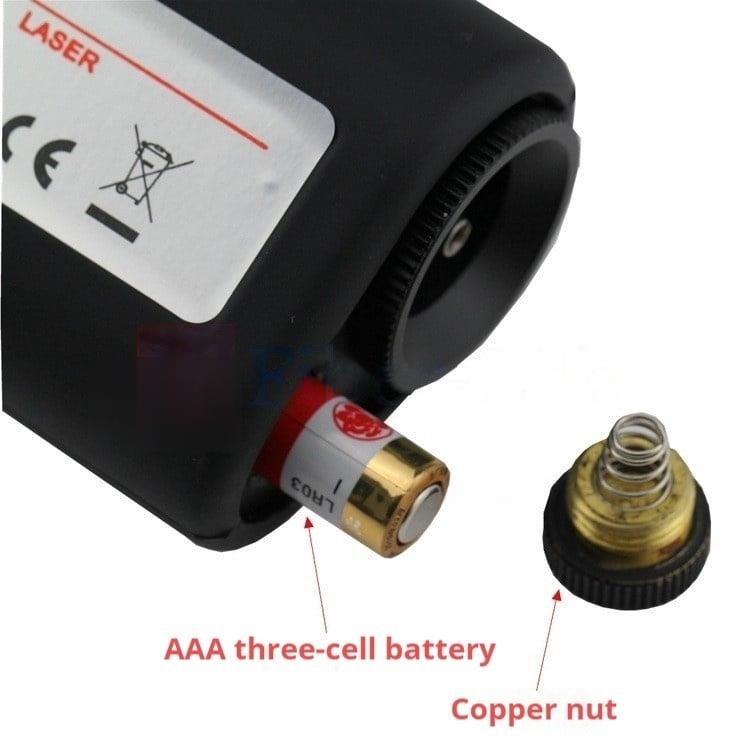

| Laser Safety Filter | Built-In | Battery | AAA x 3 |
| Weight | 526g | Dimension | 255 x 55 x 40mm |
