EasyCheck V2 Digital Fiber Endface Inspector, 400X for MPO, FC, SC, LC, ST Connectors

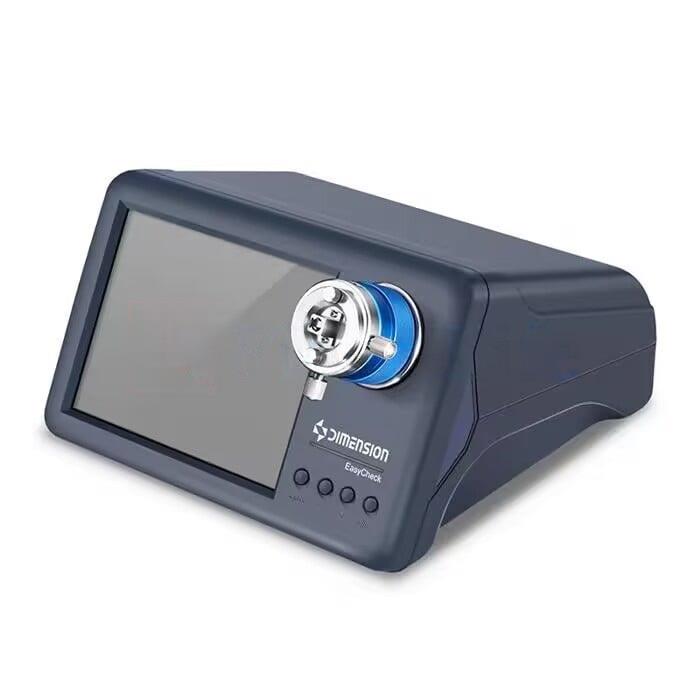

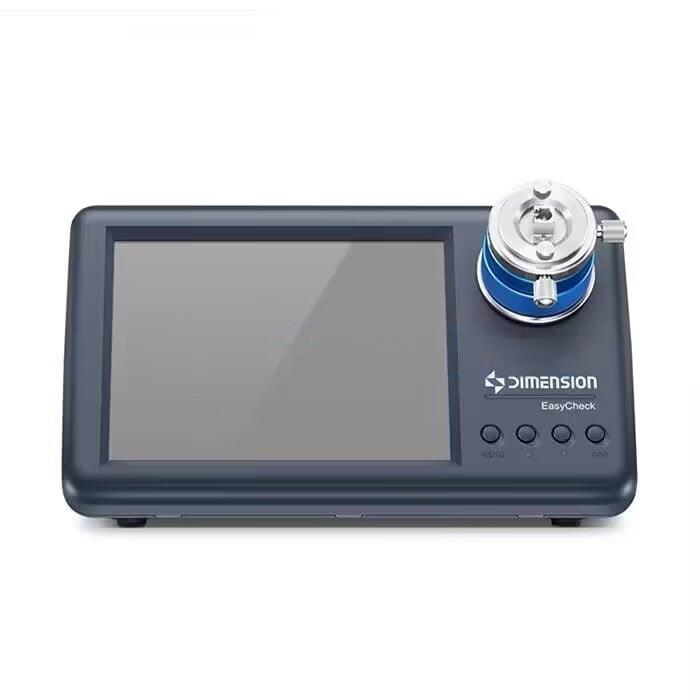

The EasyCheck V2 is a next-generation digital fiber endface inspector developed by Dimension Technology, engineered for high-precision inspection of fiber optic connectors, transceivers, TOSA/ROSA components, and more. Featuring a high-resolution 8-inch TFT display and advanced CMOS imaging, it supports 80X, 200X, and 400X magnification for detailed visualization of endface defects. Equipped with multiple storage options including SD card, USB, and Ethernet, EasyCheck V2 simplifies data management and traceability. It offers rich I/O interfaces like HDMI, USB, and LAN, and is compatible with EasyGet handheld probes for versatile inspection of various connector types. Manual focusing ensures precise control, while external accessories such as barcode scanners, foot switches, and keyboards enhance operational efficiency.
$1,955.00
EasyCheck V2 Digital Fiber Endface Inspector, 400X for MPO, FC, SC, LC, ST Connectors
The EasyCheck V2 is a next-generation digital fiber endface inspector developed by Dimension Technology, engineered for high-precision inspection of fiber optic connectors, transceivers, TOSA/ROSA components, and more. Featuring a high-resolution 8-inch TFT display and advanced CMOS imaging, it supports 80X, 200X, and 400X magnification for detailed visualization of endface defects.

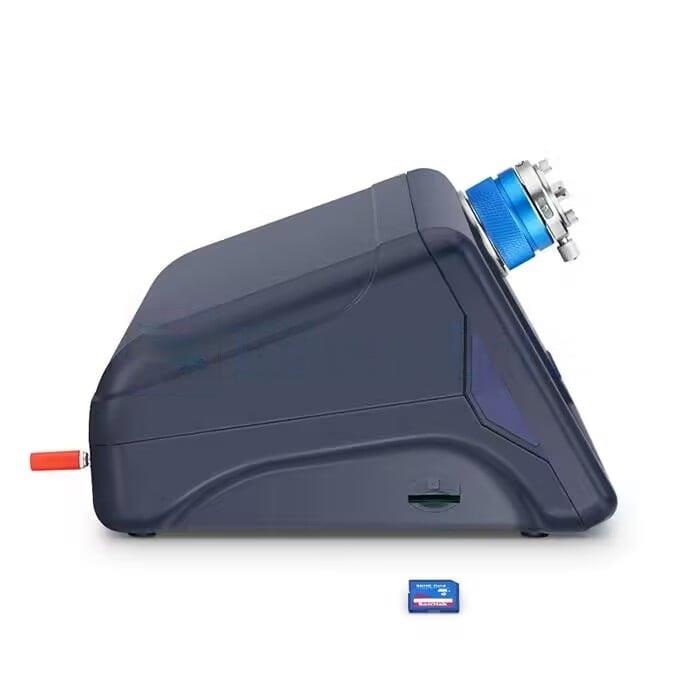

Equipped with multiple storage options including SD card, USB, and Ethernet, EasyCheck V2 simplifies data management and traceability. It offers rich I/O interfaces like HDMI, USB, and LAN, and is compatible with EasyGet handheld probes for versatile inspection of various connector types. Manual focusing ensures precise control, while external accessories such as barcode scanners, foot switches, and keyboards enhance operational efficiency.
Specifications
| Magnification | 400X | Image Format | Digital Imaging |
| Sensor | 1/2 Inch CMOS | Image Size | 80mm |
| Adjustable Range | X: 4mm, Y: 4mm | X/Y Axis Adjustment | Optional |
| Focusing Method | Manual | EasyGet Digital Input Port | Yes |

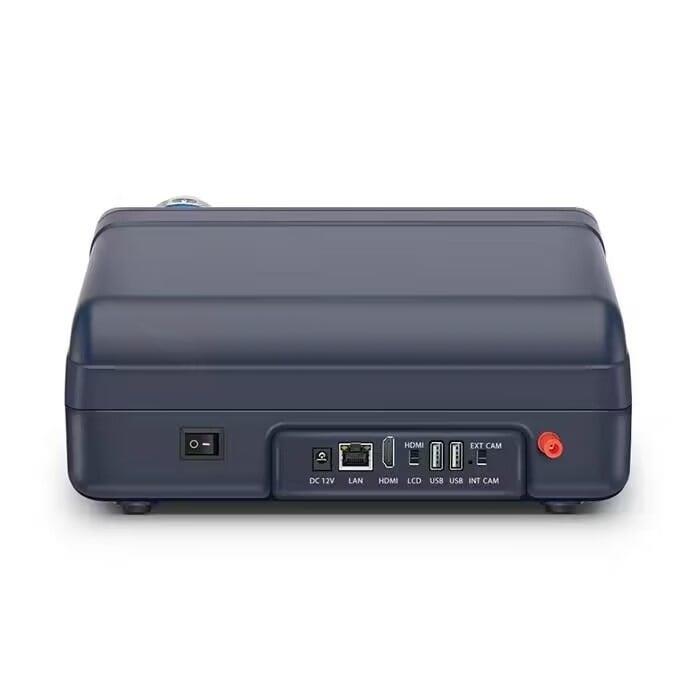

| Display Screen | 8”TFT 1024x 768 PIX | External Interface | 2x USB, 1x SD, 1x Lan, 1x HDMI |
| Power | 6W | Operating Temperature | -10°C ~ 40°C |
| Storage Temperature | -20°C ~ 55°C | Power Supply | DC12V |
| Weight | 1.6kg | Dimension (LxWxH) | 270mm x 245mm x 155mm |
