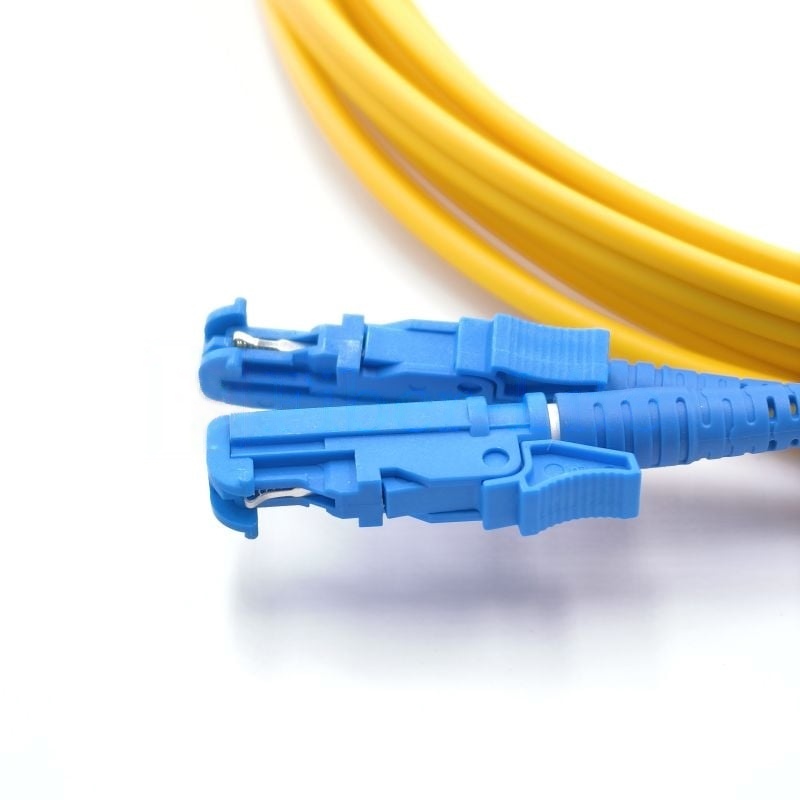

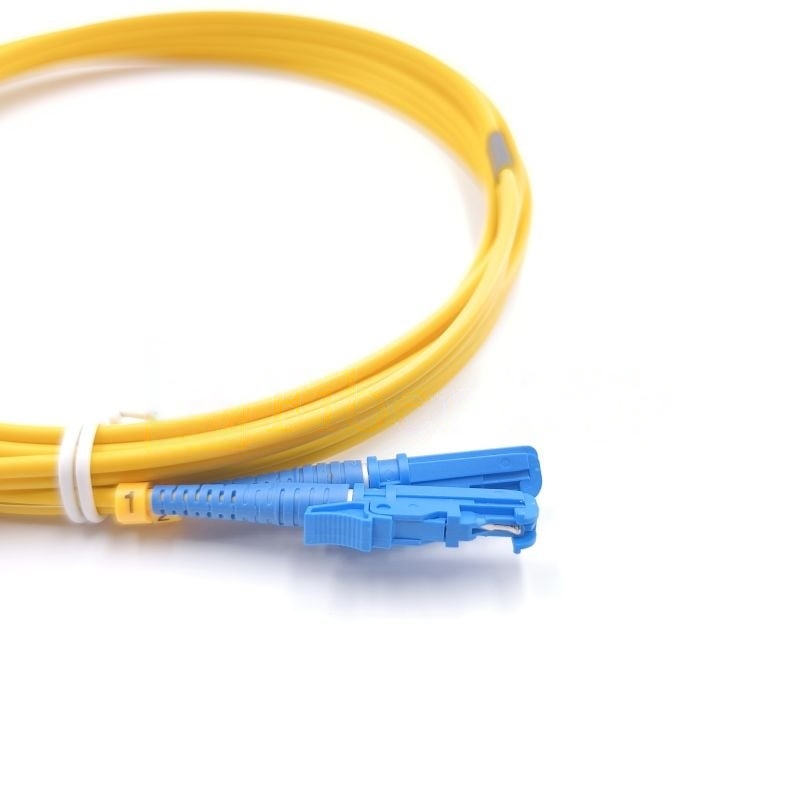

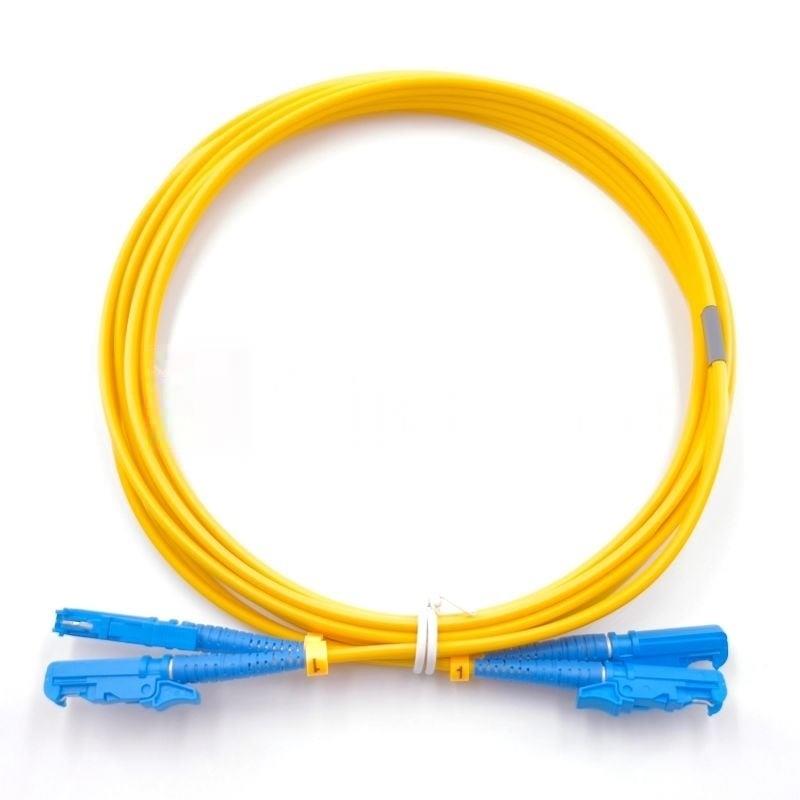

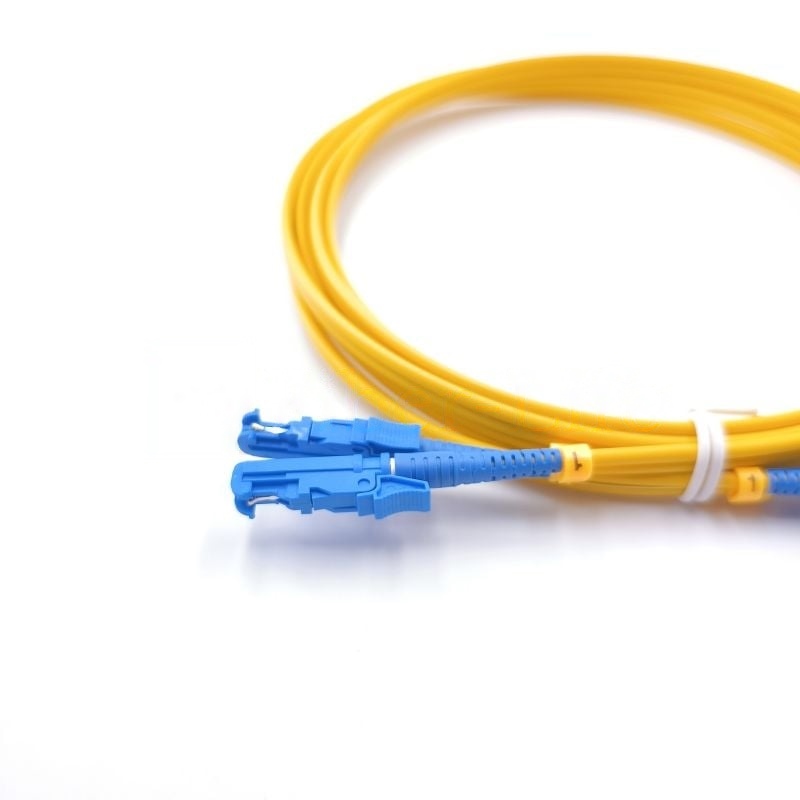

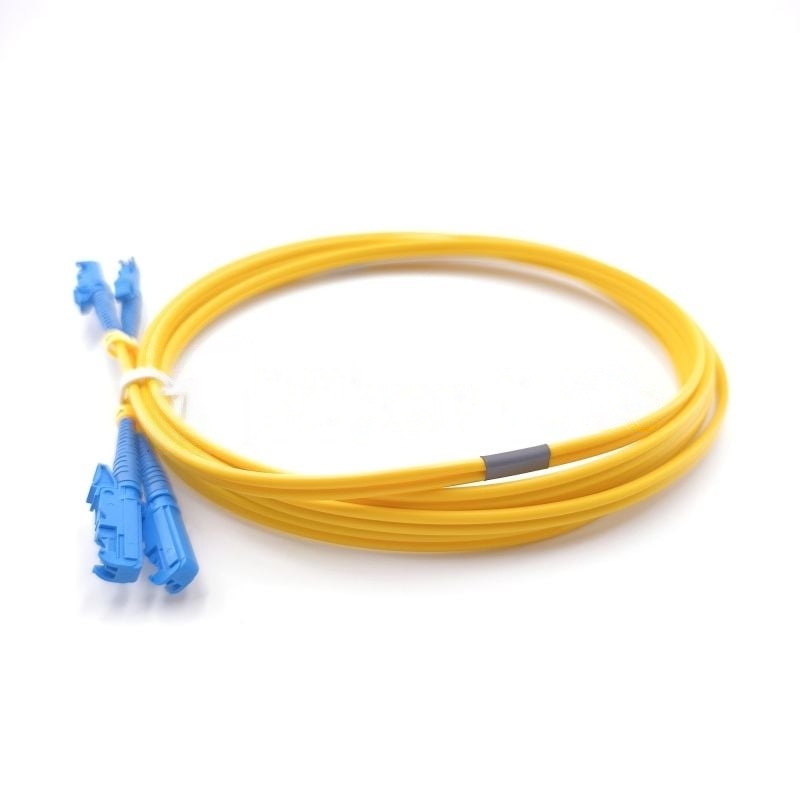

E2000/UPC To E2000/UPC Duplex OS2 Singlemode Fiber Patch Cable
E2000/UPC to E2000/UPC Duplex OS2 Singlemode Fiber Patch Cable – Low-loss, high-speed fiber optic cable with automatic dust shutters. Ideal for telecom, FTTH, and data centers. Order now!
$21.12
E2000/UPC to E2000/UPC Duplex OS2 Singlemode Fiber Patch Cable – High-Performance, Low-Loss Fiber for Long-Distance Optical Networks
The E2000/UPC to E2000/UPC Duplex OS2 Singlemode Fiber Patch Cable is designed for high-speed, low-loss optical transmission, ensuring reliable connectivity in telecom, FTTH, and data center environments. Featuring E2000/UPC connectors with automatic shutter protection, this duplex fiber cable minimizes signal loss and maximizes network efficiency.
Specifications
| Connector A | E2000 UPC | Connector B | E2000 UPC |
| Fiber Count | 2 Fibers | Fiber Grade | G.657.A1 (Compatible with G.652.D) |
| Fiber Mode | OS2 Singlemode 9/125μm | Wavelength | 1310/1550nm |
| Min. Bend Radius (Optical Fiber) | 10mm | Min. Bend Radius (Fiber Cable) | 10/5D (Dynamic/Static) |
| Connector Durability | 1000 times | Tensile Strength (Long/Short Term) | 90/150N |
| Insertion Loss | ≤0.3dB | Return Loss | ≥55dB |
| Operating Temperature | -20°C ~ ＋70°C | Storage Temperature | -40°C ~ ＋80°C |
Key Features:
✅ OS2 9/125μm Singlemode Fiber – Supports 10G, 40G, and 100G networks, with transmission distances up to 10km (10G) and 40km+ (100G).
✅ E2000/UPC Connectors – Ultra Physical Contact (UPC) polishing provides low insertion loss (≤0.3dB) and high return loss (≥55dB), ensuring stable performance.
✅ Duplex Design for Bi-Directional Transmission – Enables simultaneous data transfer for high-efficiency optical communication.
✅ Automatic Dust Shutters – Built-in protective shutters prevent dust contamination and laser exposure, enhancing connector durability.
✅ Flexible Installation Options – Available in 2.0mm and 3.0mm jackets, with PVC or LSZH material options for different network environments.
✅ Wide Application Range – Ideal for FTTH, CATV, SDH, DWDM, and backbone fiber networks, ensuring fast and stable data transmission.
Upgrade your fiber optic network with SunmaFiber’s premium E2000/UPC OS2 duplex patch cable, delivering high-speed, low-loss, and ultra-reliable optical connectivity for demanding applications.
