FC/APC To FC/APC Simplex Singlemode Big D Metal Fiber Optic Adapter Without Flange
The FC/APC to FC/APC Simplex Singlemode Big D Metal Fiber Optic Adapter Without Flange is a high-precision coupler designed for reliable, low-loss interconnection between two FC/APC singlemode connectors. With its Angled Physical Contact (APC) interface, this adapter provides ultra-low back reflection and stable optical performance, making it ideal for high-precision optical communication systems, CATV networks, and test instrumentation.
$1.10

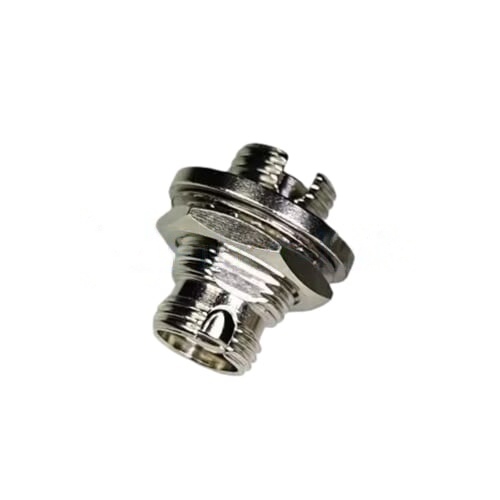

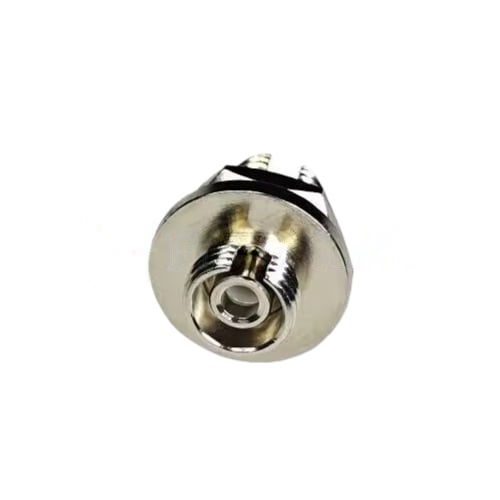

FC/APC To FC/APC Simplex Singlemode Big D Metal Fiber Optic Adapter Without Flange
The FC/APC to FC/APC Simplex Singlemode Big D Metal Fiber Optic Adapter Without Flange is a high-precision coupler designed for reliable, low-loss interconnection between two FC/APC singlemode connectors. With its Angled Physical Contact (APC) interface, this adapter provides ultra-low back reflection and stable optical performance, making it ideal for high-precision optical communication systems, CATV networks, and test instrumentation.
Constructed with a nickel-plated Big D-type metal housing and a high-precision zirconia ceramic alignment sleeve, it ensures accurate fiber core alignment, minimal insertion loss, and excellent mechanical durability. The flangeless Big D design allows for easy integration into compact or internal optical modules where panel mounting is not required, offering both strength and space efficiency.
Specifications
| Connector A | FC/APC | Connector B | FC/APC |
| Body Style | Simplex | Fiber Mode | Singlemode |
| Insertion Loss | ≤0.2dB | Durability | 1000 Times |
| Flammability Rate | UL 94V-0 | Working Temperature | -25 ~ +70°C |
