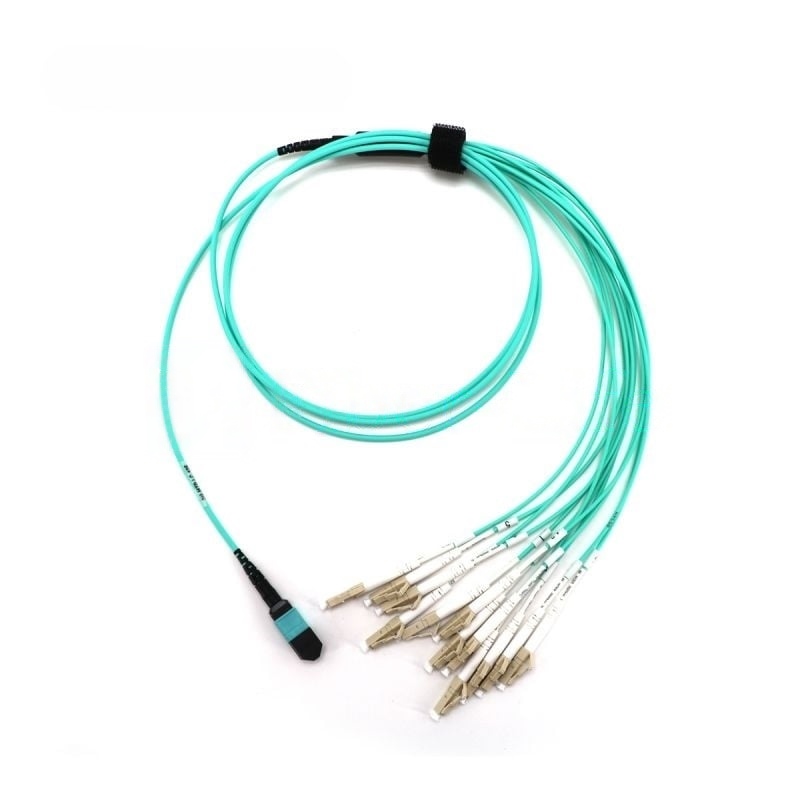

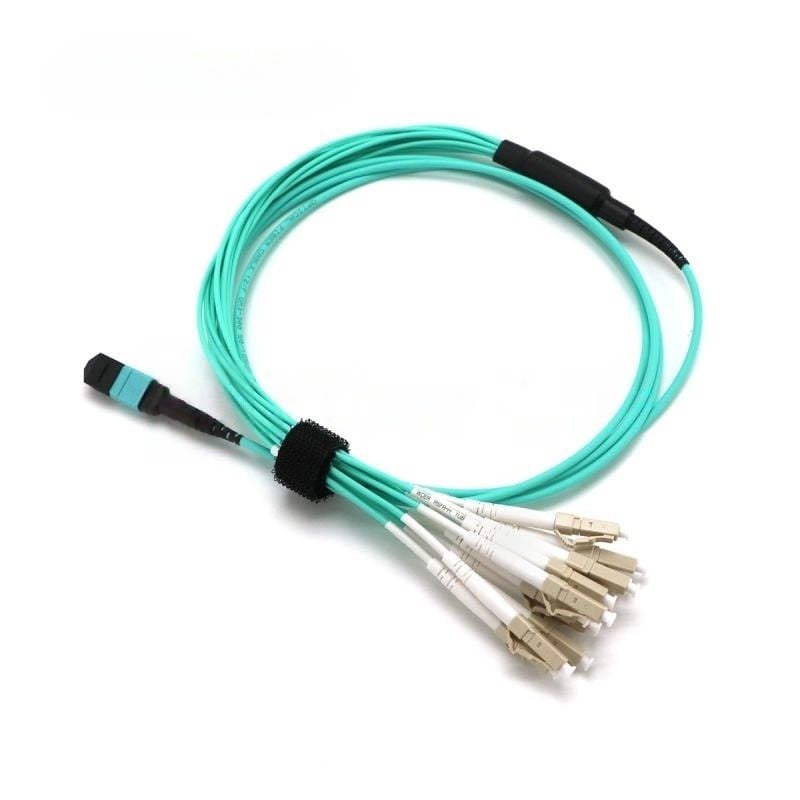

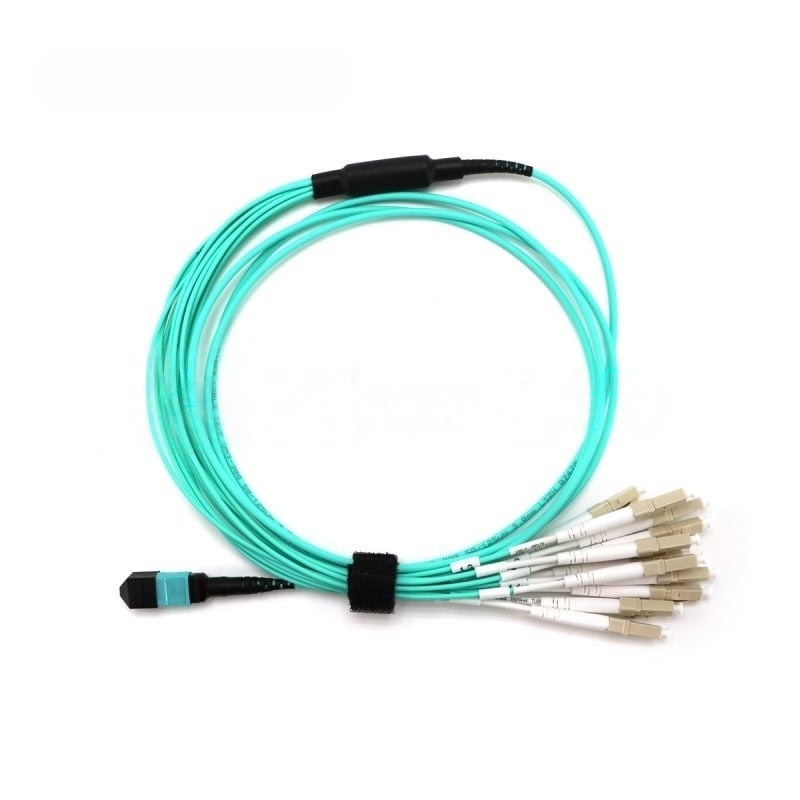

OM3 Multimode MTP-12 Breakout Cable, Aqua
The OM3 Multimode LC/SC/FC/ST to MTP-12 Breakout Cable offers high-speed, high-density fiber connectivity for data centers, supporting efficient, high-bandwidth applications with multiple connector types.
$50.80
OM3 Multimode LC/SC/FC/ST To MTP-12 Breakout Cable, Aqua
The OM3 Multimode LC/SC/FC/ST to MTP-12 Breakout Cable is a high-performance fiber optic cable designed for high-speed data transmission in high-density network environments like data centers and telecommunications systems. It features OM3 multimode fiber, optimized for high-bandwidth applications with distances up to 300 meters at 10Gbps. The cable has individual connectors on each fiber—LC, SC, FC, and ST—allowing it to connect to various devices such as switches, routers, and patch panels.
The MTP-12 connector consolidates 12 fibers into a single, compact interface, providing efficient high-density connectivity. This breakout design allows the MTP-12 connector to branch into individual fibers with different connectors, streamlining the installation and management of multiple connections with a single cable, making it ideal for complex network setups where high-capacity and flexibility are required.
Specifications
| Connector A | US Conec MTP | Connector B | LC/SC/FC/ST |
| Fiber Mode | OM3 50/125μm | Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® Multimode Fiber | Minimum Bend Radius | 7.5mm |
| Trunk Outside Diameter (OD) | 3.0mm | Breakout Outside Diameter (OD) | 2.0mm |
| MTP Connector IL | ≤0.35dB | LC/SC/FC/ST Connectors IL | ≤0.3dB |
| MTP Connector RL | ≥20dB | LC/SC/FC/ST Connectors RL | ≥35dB |
Features
12-Fiber Mini-Core Cable Structure
MTP Hybrid Harnesses Fiber Patch Cables are terminated with MTP connector on one end and other end with LC, FC, SC, ST, or MTRJ connectors to meet a variety of fiber cabling requirements.
Three Jacket Materials
The differences between OFNP, PVC, LSZH jackets.
