OM3 Multimode MTP-24 Breakout Cable, Aqua
High-speed OM3 Multimode LC/SC/FC/ST to MTP-24 Breakout Cable for data centers, enabling efficient, high-density connections up to 10 Gbps over 300 meters with organized cabling.
$100.50

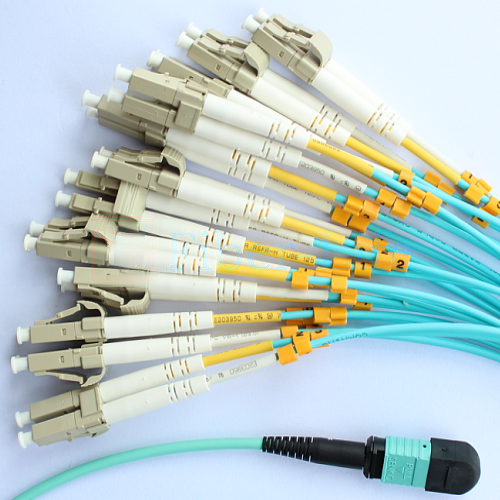

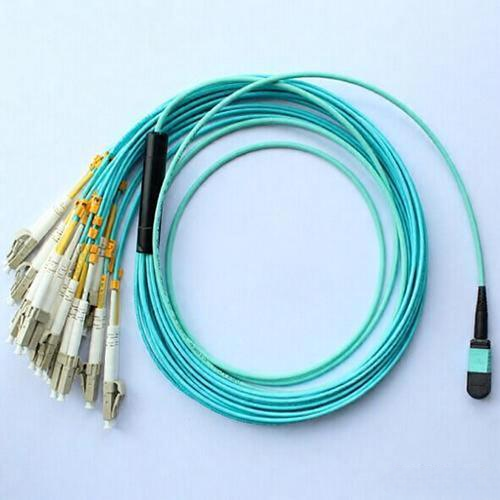

OM3 Multimode LC/SC/FC/ST To MTP-24 Breakout Cable, Aqua
An OM3 Multimode LC/SC/FC/ST to MTP-24 Breakout Cable is designed for high-speed, short to medium distance multimode fiber connections, ideal for data centers and enterprise networks. Featuring an MTP-24 connector on one end, it connects to high-density network equipment, while the other end has multiple LC, SC, FC, or ST connectors for individual devices. This OM3 multimode fiber supports data rates up to 10 Gbps over distances up to 300 meters at 850nm. The breakout design splits the MTP-24 connector into 24 connections, offering a scalable, organized cabling solution for modern high-speed network setups.
Specifications
| Connector A | US Conec MTP | Connector B | LC/SC/FC/ST |
| Fiber Mode | OM3 50/125μm | Wavelength | 850/1300nm |
| Glass Fiber | Corning ClearCurve® Multimode Fiber | Minimum Bend Radius | 7.5mm |
| Trunk Outside Diameter (OD) | 3.0mm | Breakout Outside Diameter (OD) | 2.0mm |
| MTP Connector IL | ≤0.35dB | LC/SC/FC/ST Connectors IL | ≤0.3dB |
| MTP Connector RL | ≥20dB | LC/SC/FC/ST Connectors RL | ≥35dB |
Feature
Three Jacket Materials
The differences between OFNP, PVC, LSZH jackets.
